Drive Belt: Description and Operation

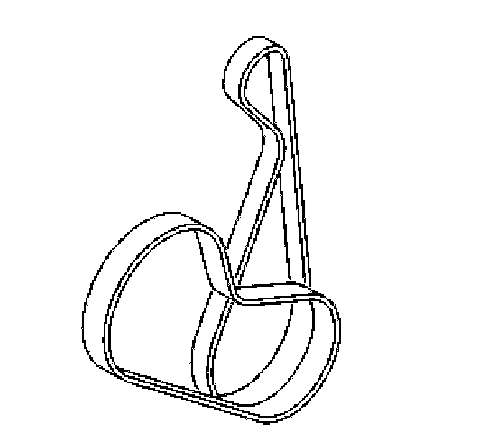

Auxiliaries belt
The auxiliary equipment consists of two belts and two auxiliary units. The auxiliary equipment (generator (GEN), A/C compressor) is driven by two Poly-V belts and is tensioned by a mechanical tensioner. The belt tensioners are all on a bracket which links the generator (GEN) and air conditioning (A/C) compressor.

The generator is run by the A/C compressor, which is in turn run by the vibration damper on the crankshaft. The power steering pump is driven by an electrical hydraulic pump.
