Engine Management System

Engine Management System, 5-Cyl

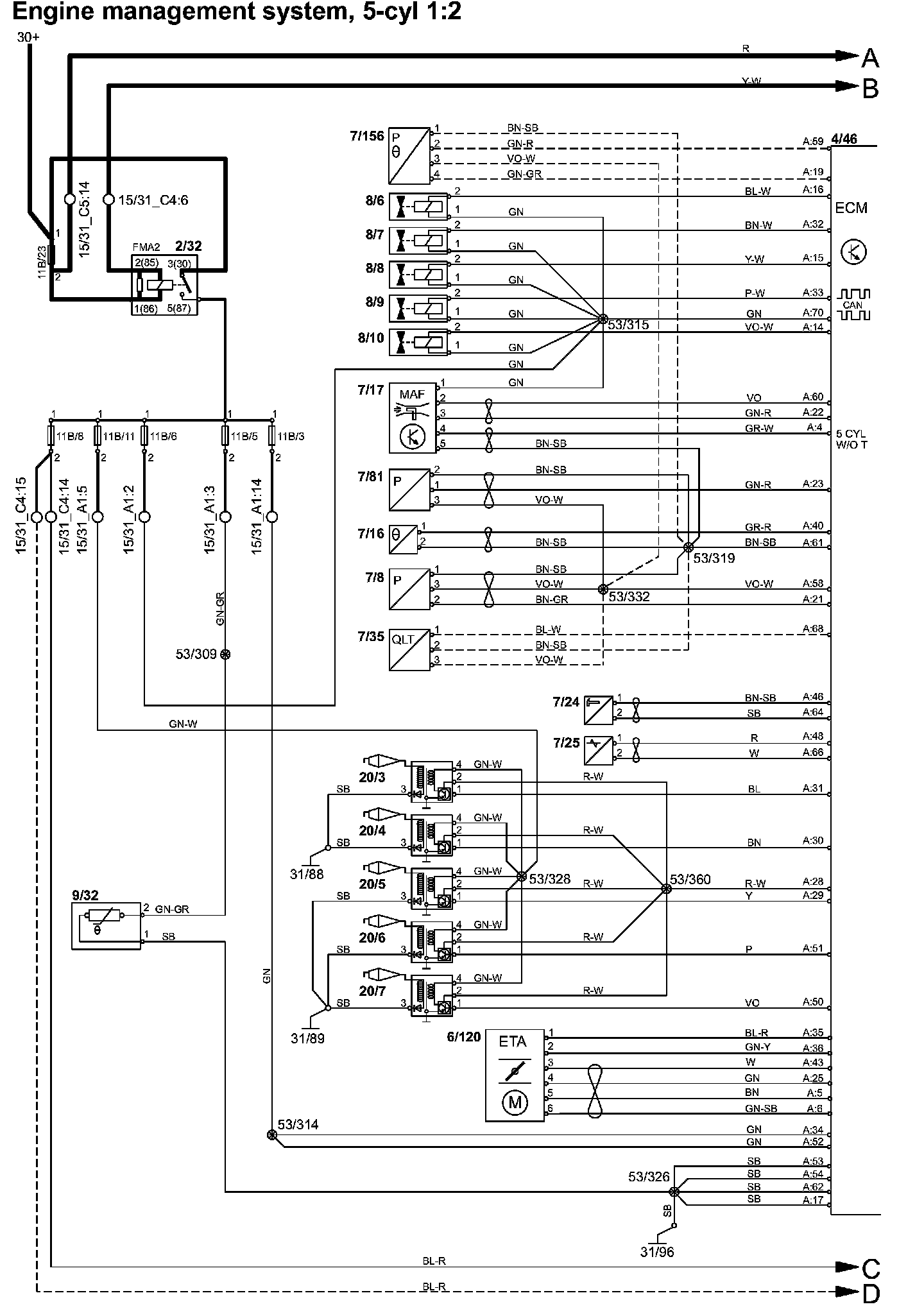

Engine Management System, 5-Cyl, Part 1:

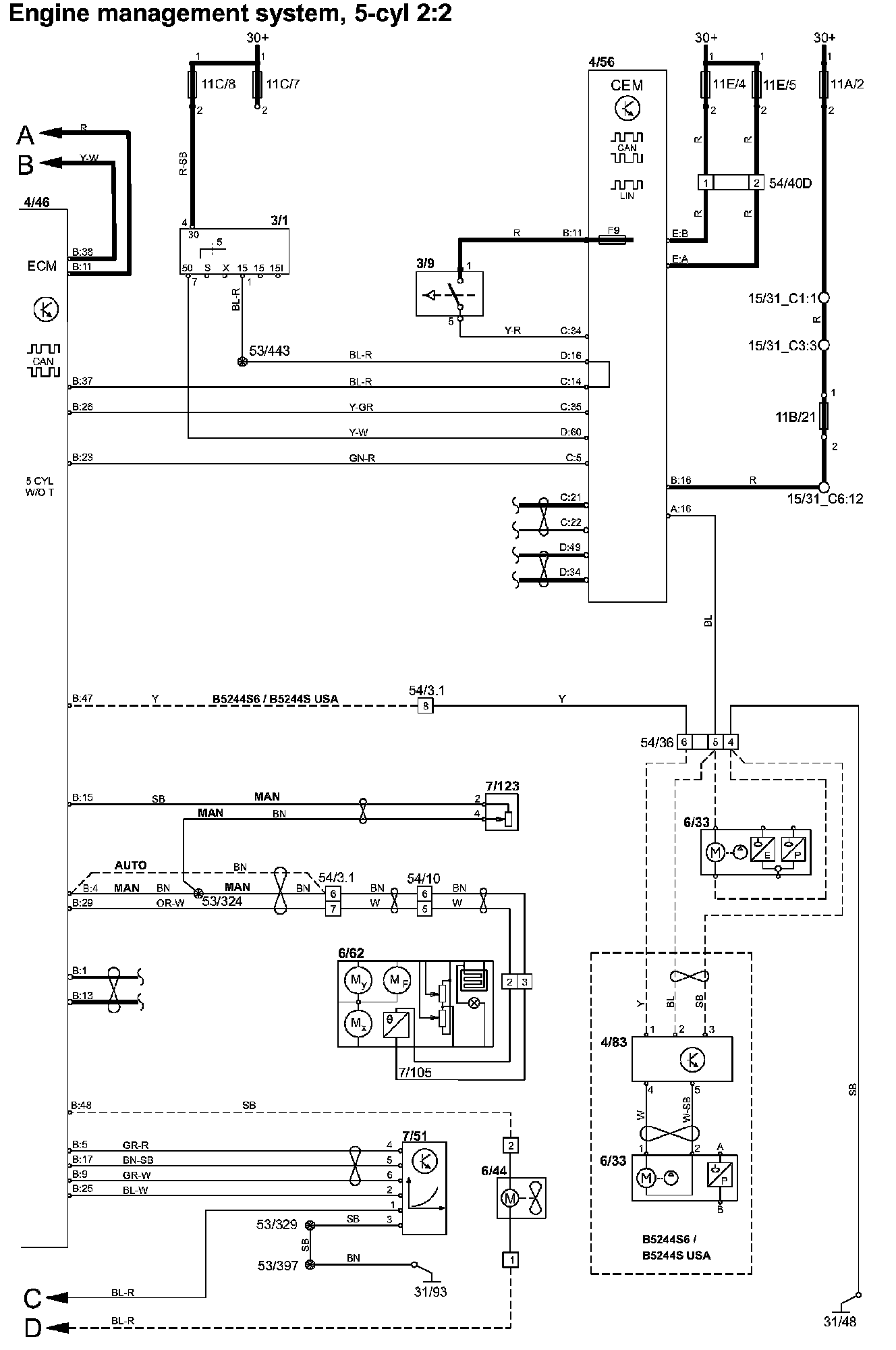

Engine Management System, 5-Cyl, Part 2:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components by Component Number: List of Components By Component Number
