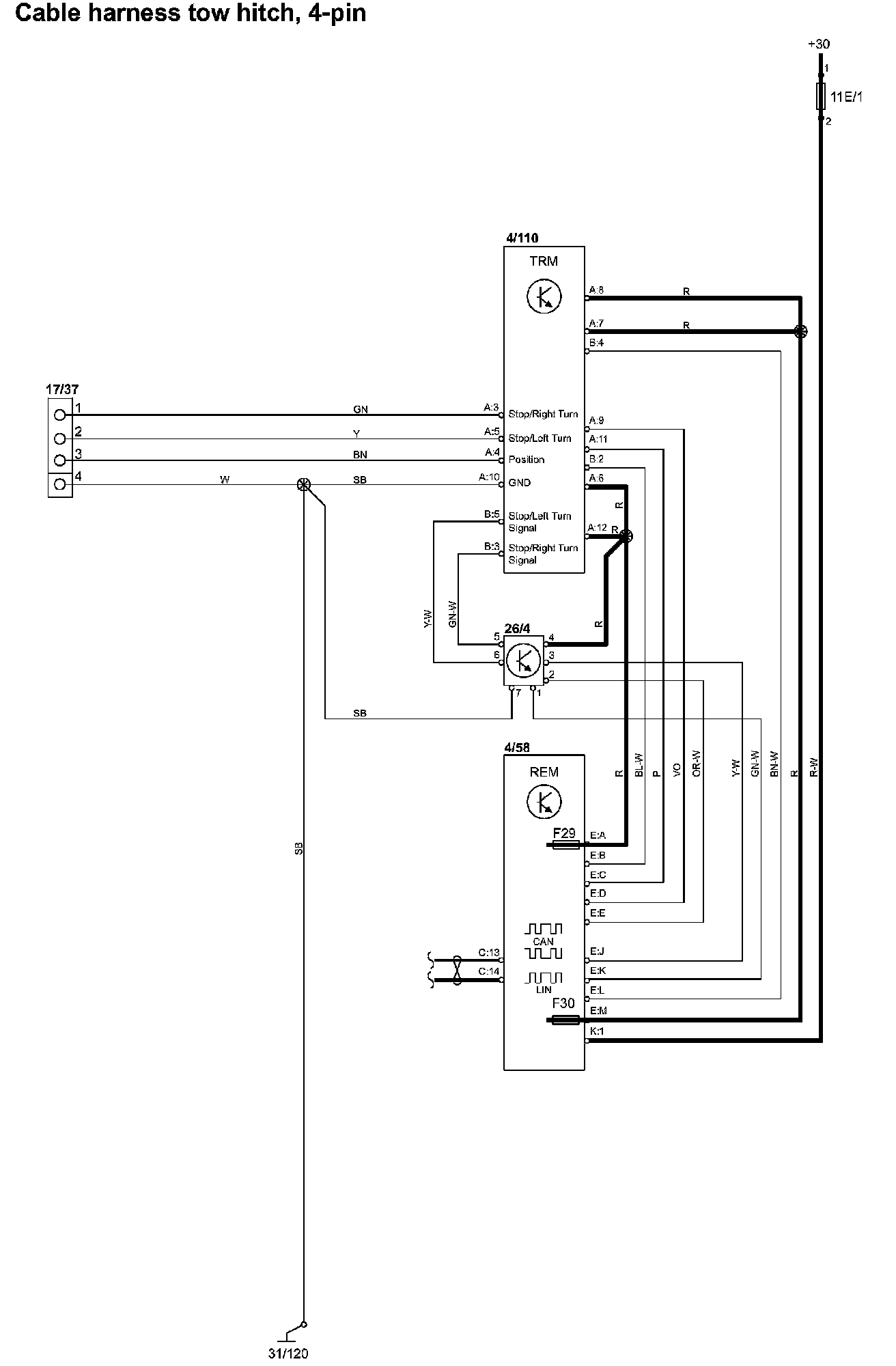

Cable Harness Tow Hitch, 4-Pin

Cable Harness Tow Hitch, 4-Pin

Cable Harness Tow Hitch, 4-Pin:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code Identification and Other Abbreviations

List of Components by Component Number: List of Components By Component Number
