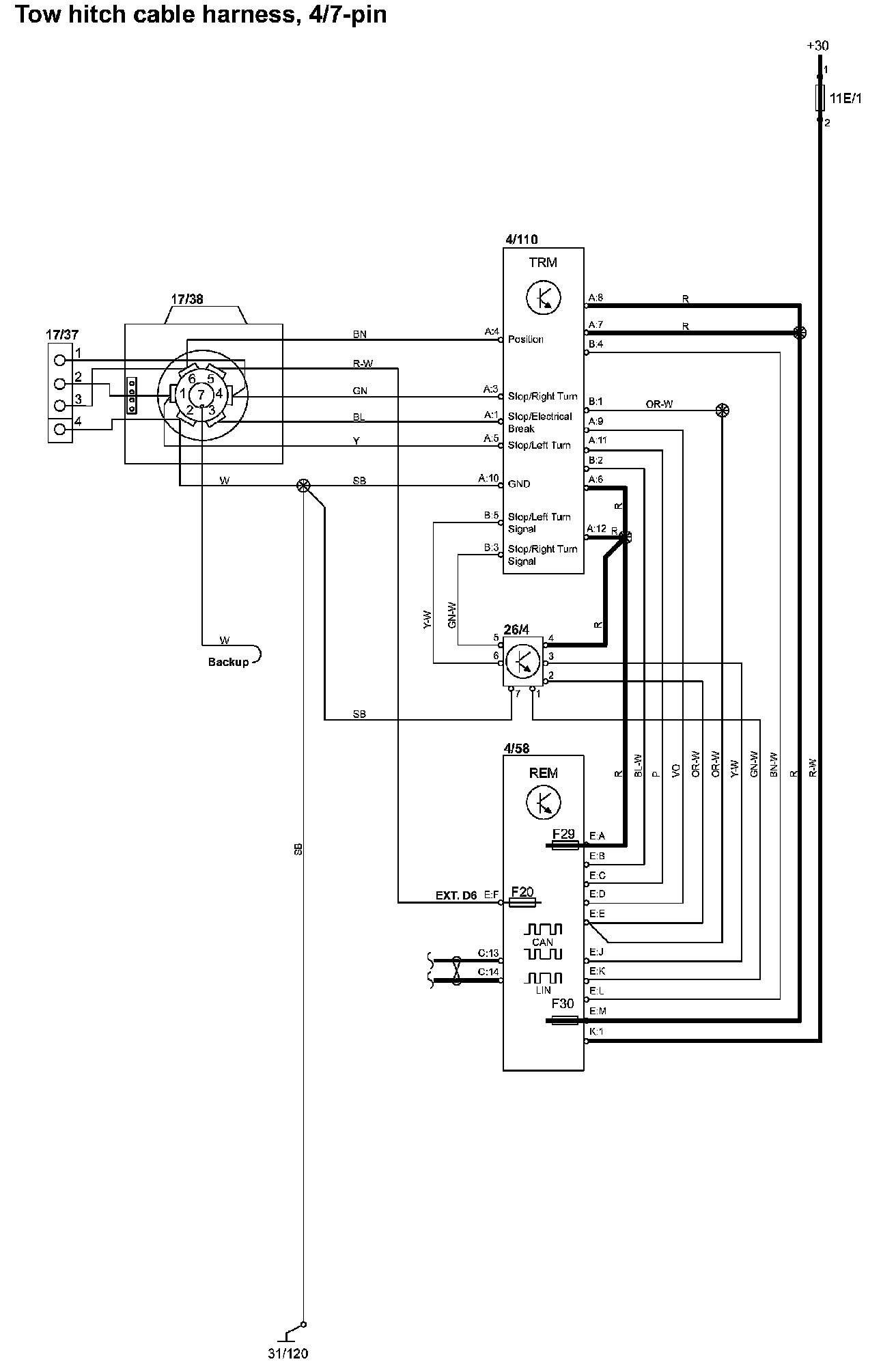

Tow Hitch Cable Harness, 4/7-Pin

Tow Hitch Cable Harness, 4/7-Pin

Tow Hitch Cable Harness, 4/7-Pin:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code Identification and Other Abbreviations

List of Components by Component Number: List of Components By Component Number
