Auto-Dimming Rearview Mirror

Auto-dimming Rearview Mirror

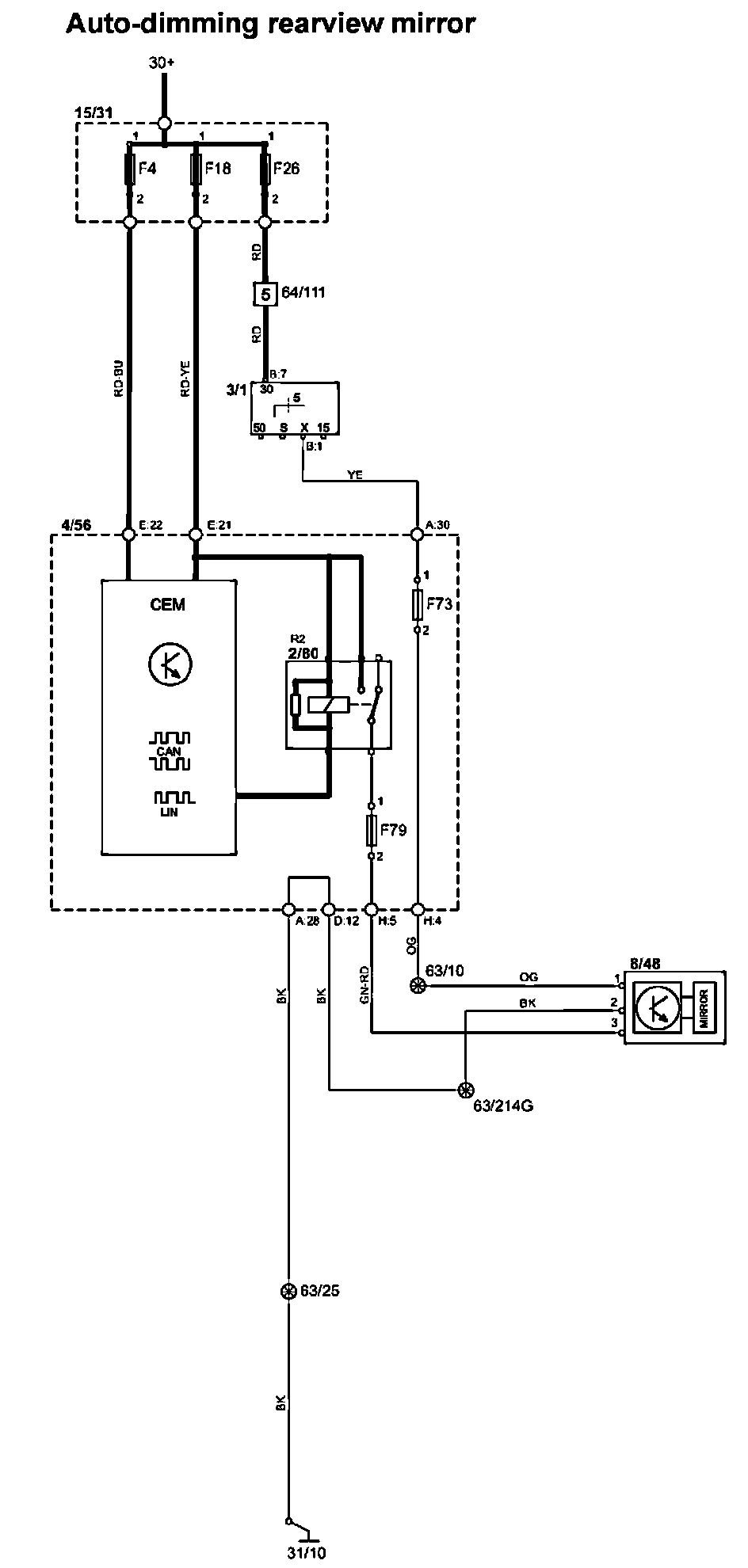

Auto-dimming Rearview Mirror:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code Identification and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
