Home >> Volvo >> 2006 >> S40 T5 L5-2.5L Turbo VIN 68 B5254T3 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 64/60

64/60

64/60:

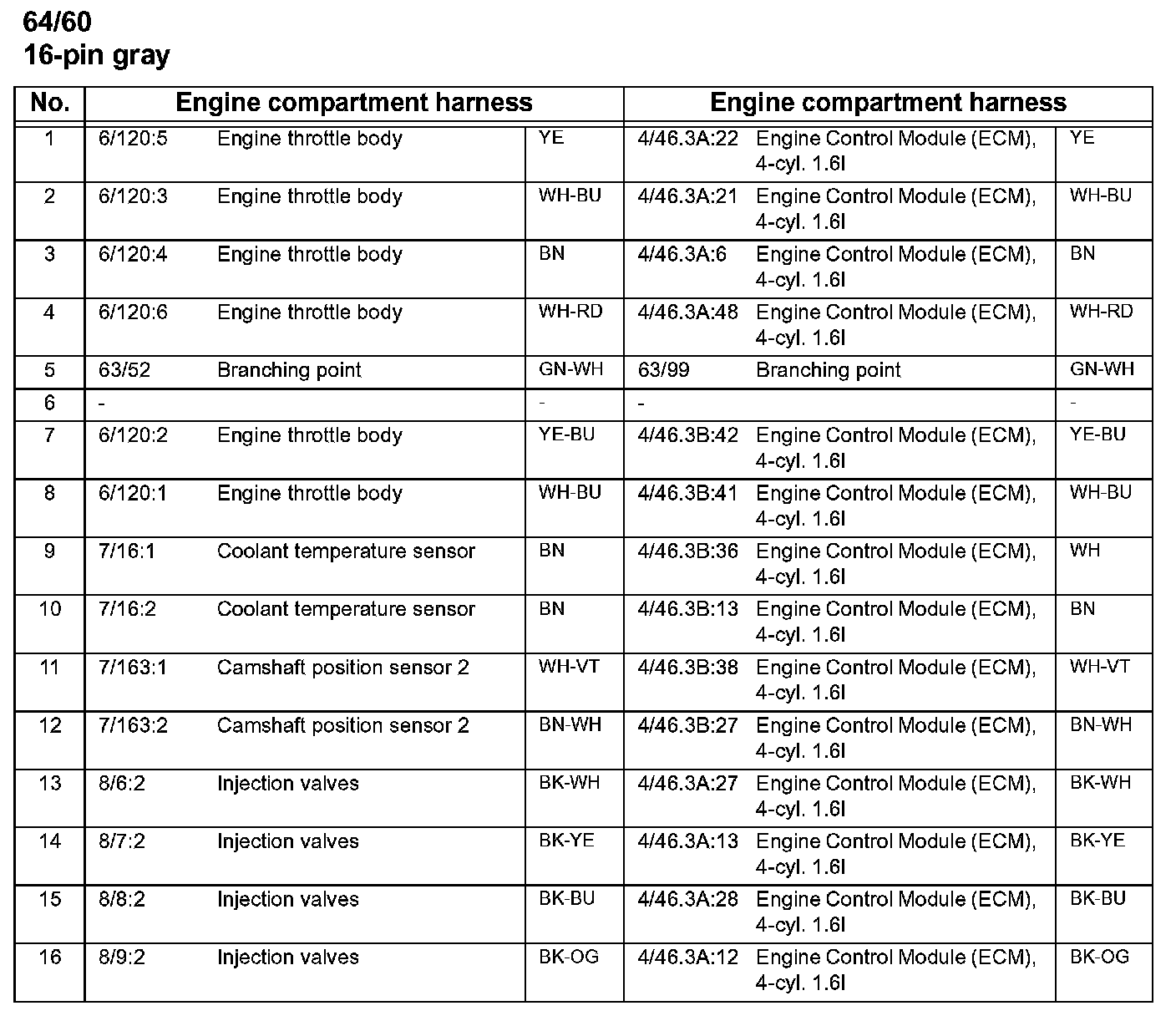

64/60 Connector:
