Gear Lockout Solenoid, M/T

Transmission M66

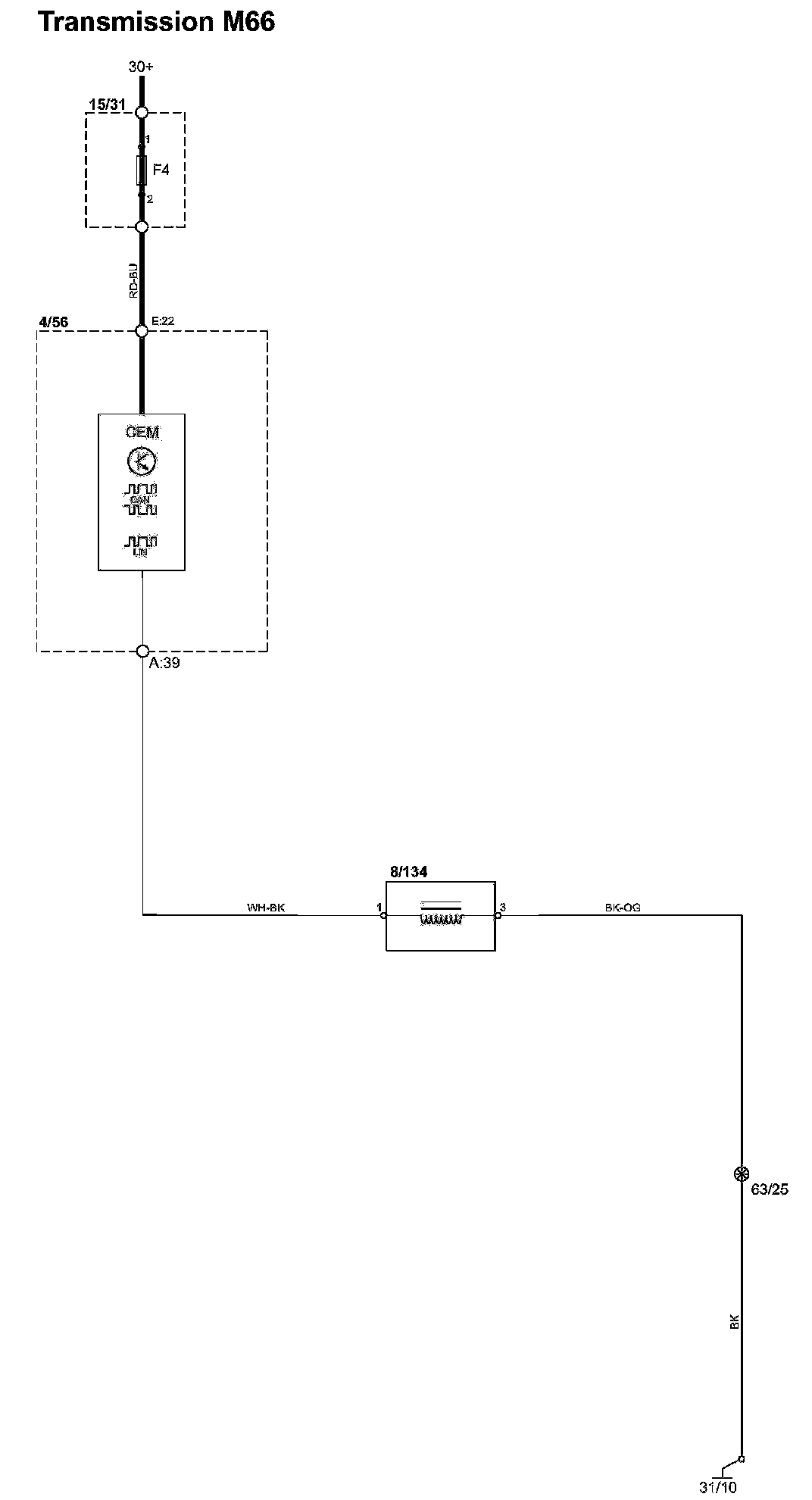

Transmission M66:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code Identification and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
