Home >> Volvo >> 2006 >> S60 T5 L5-2.4L Turbo VIN 54 B5244T5 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 54/3.1

54/3.1

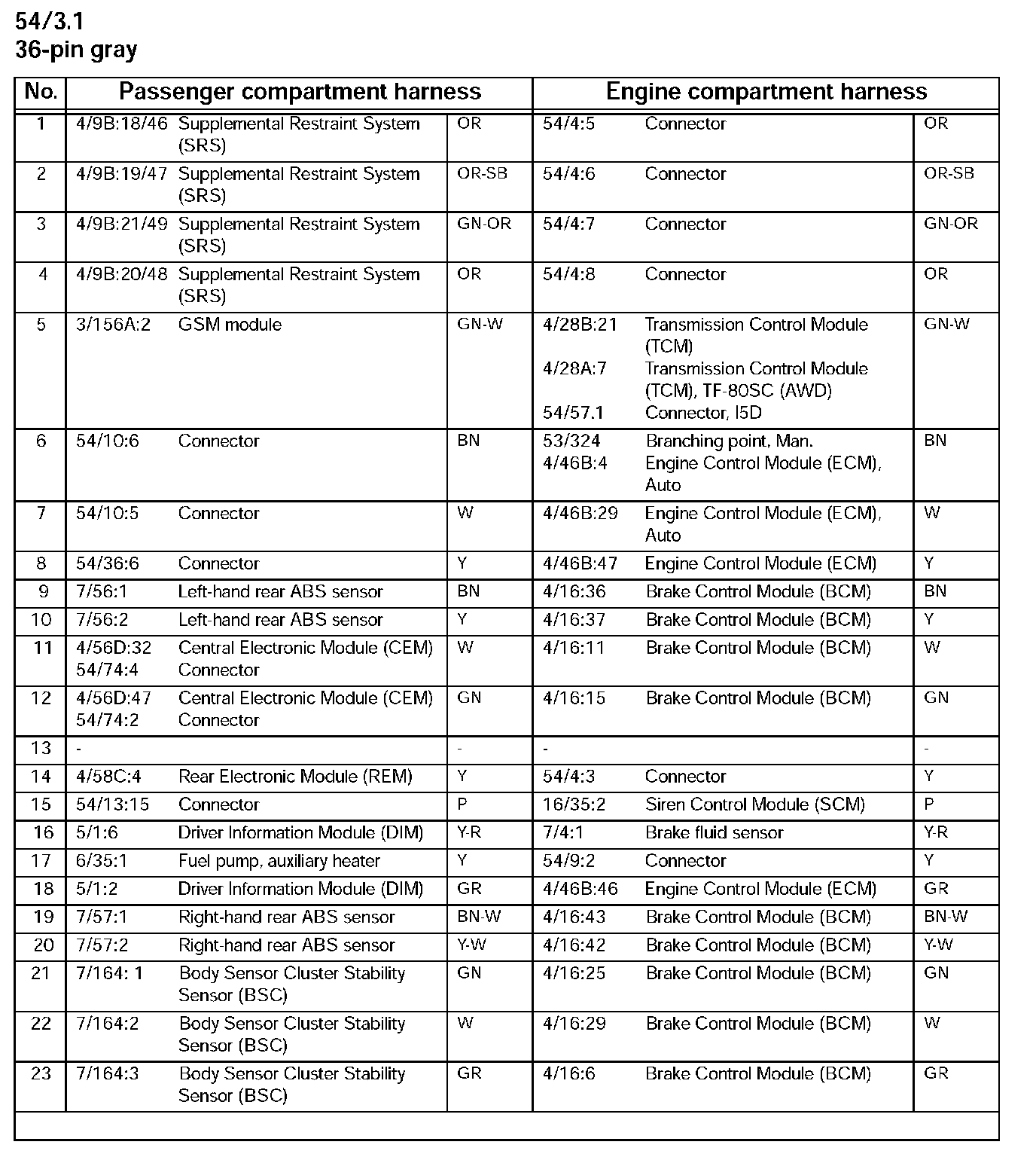

54/3.1 Part -1:

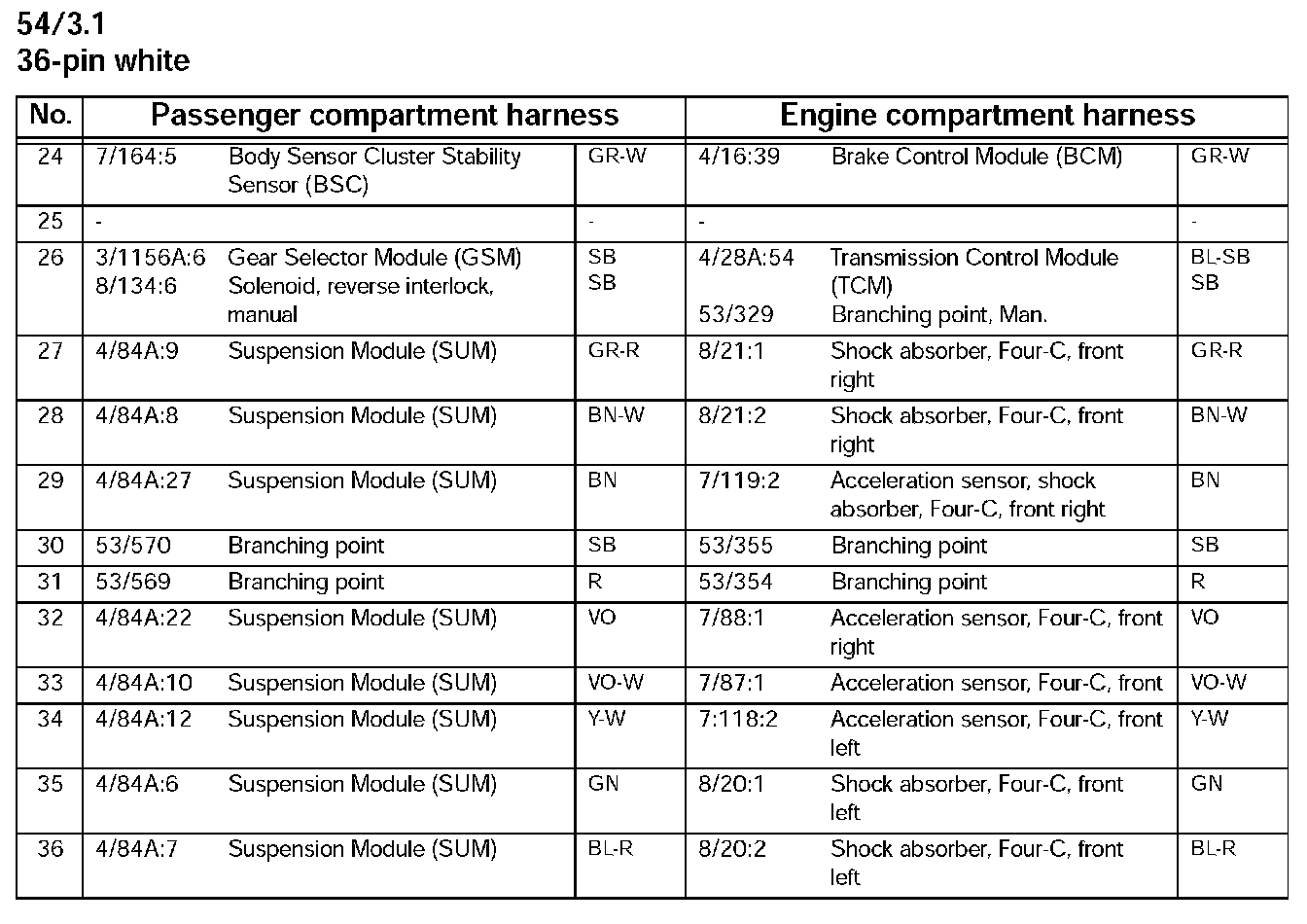

54/3.1 Part -2:
