Center Ventilation Vent, Replacing

Center Ventilation Vent, Replacing

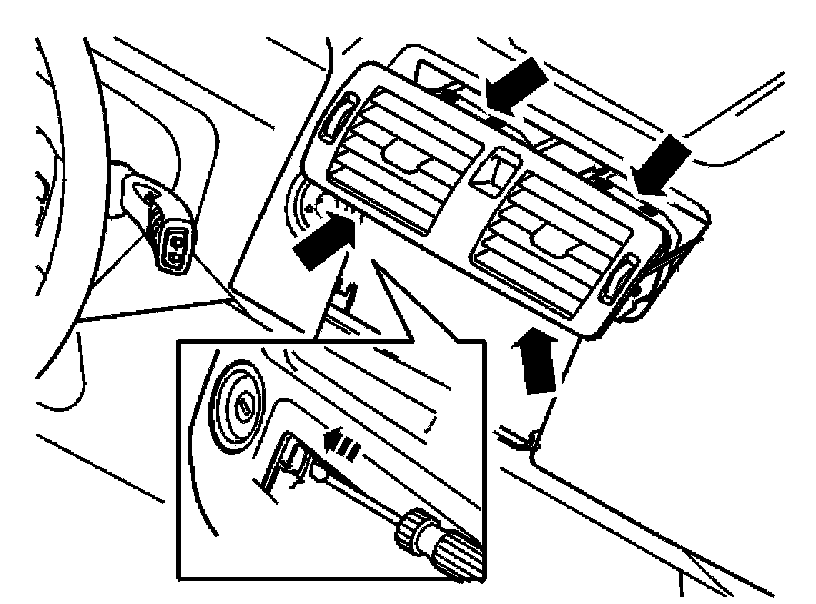

Removing the center ventilation vent

Remove:





- The ventilation grilles. Pry off the grilles from inside
- the vent housing by prying up the hooks.
- the connector for the switch.

Transferring components
Transfer the switch for the hazard warning signal flashers to the new ventilation vent housing.

Installing the center ventilation vent

Install:
- the connector
- the vent housing. Ensure that the hooks engage properly.

First locate the ventilation grilles in the outer mountings. Then press the grilles into place.

Outer ventilation vents, replacing

Removing outer ventilation vents

Remove:





- the ventilation grilles. Pry off the grilles from outside
- the vent housing by prying up the hooks.

Installing outer ventilation vents
Install the vent housing. Ensure that the hooks engage properly.
First locate the ventilation grilles in the inner mountings. Then press the grilles into place.
