Outer Ventilation Vents, Replacing

Outer Ventilation Vents, Replacing

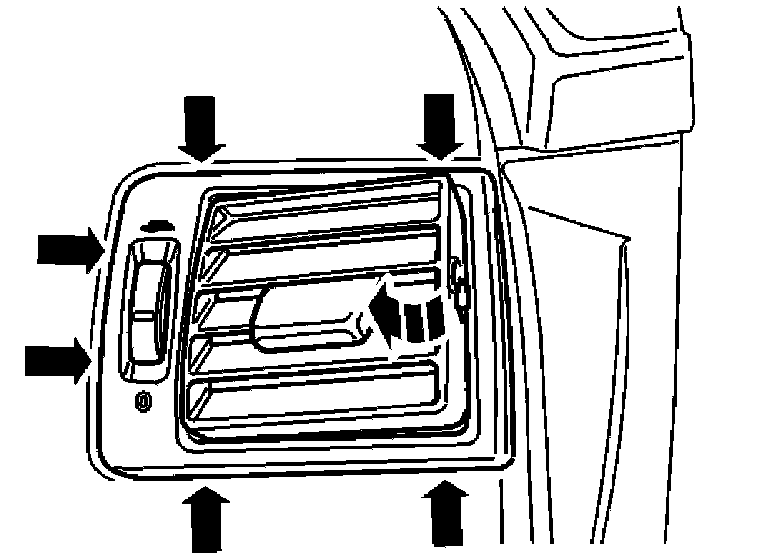

Removing outer ventilation vents

Remove:





- the ventilation grilles. Pry off the grilles from outside
- the vent housing by prying up the hooks.

Installing outer ventilation vents
Install the vent housing. Ensure that the hooks engage properly.
First locate the ventilation grilles in the inner mountings. Then press into place.
