Fuel Filter: Service and Repair

Replacing The Fuel Filter

Removal

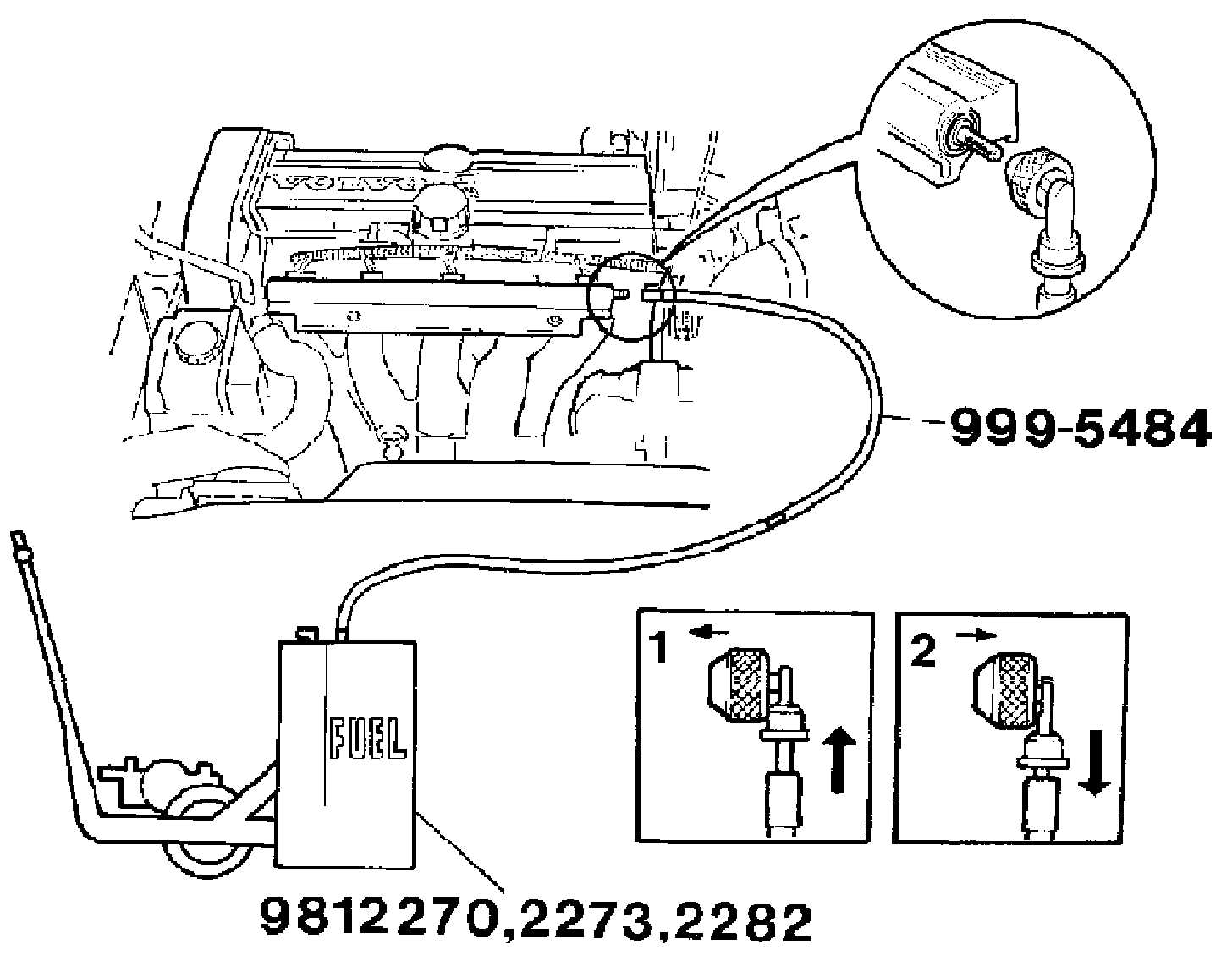

Draining the fuel system







- Empty the fuel injection system according to Draining the fuel system.

Removing the fuel filter







- Remove the screw securing the clamp around the filter
- Disconnect the quick-release connectors from the fuel filter
- Replace the filter.

Installation

Installing the fuel filter
In reverse order.
Tighten the screw. Tighten to 25 Nm.
