Home >> Volvo >> 2006 >> XC90 AWD L5-2.5L Turbo VIN 59 B5254T2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 54/117

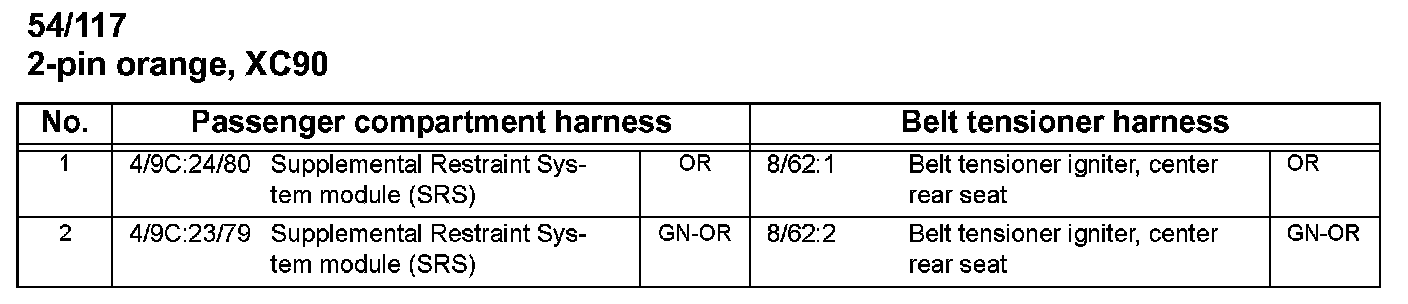

54/117

54/117:



54/117 Connector:
