Home >> Volvo >> 2006 >> XC90 AWD L5-2.5L Turbo VIN 59 B5254T2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 54/274

54/274

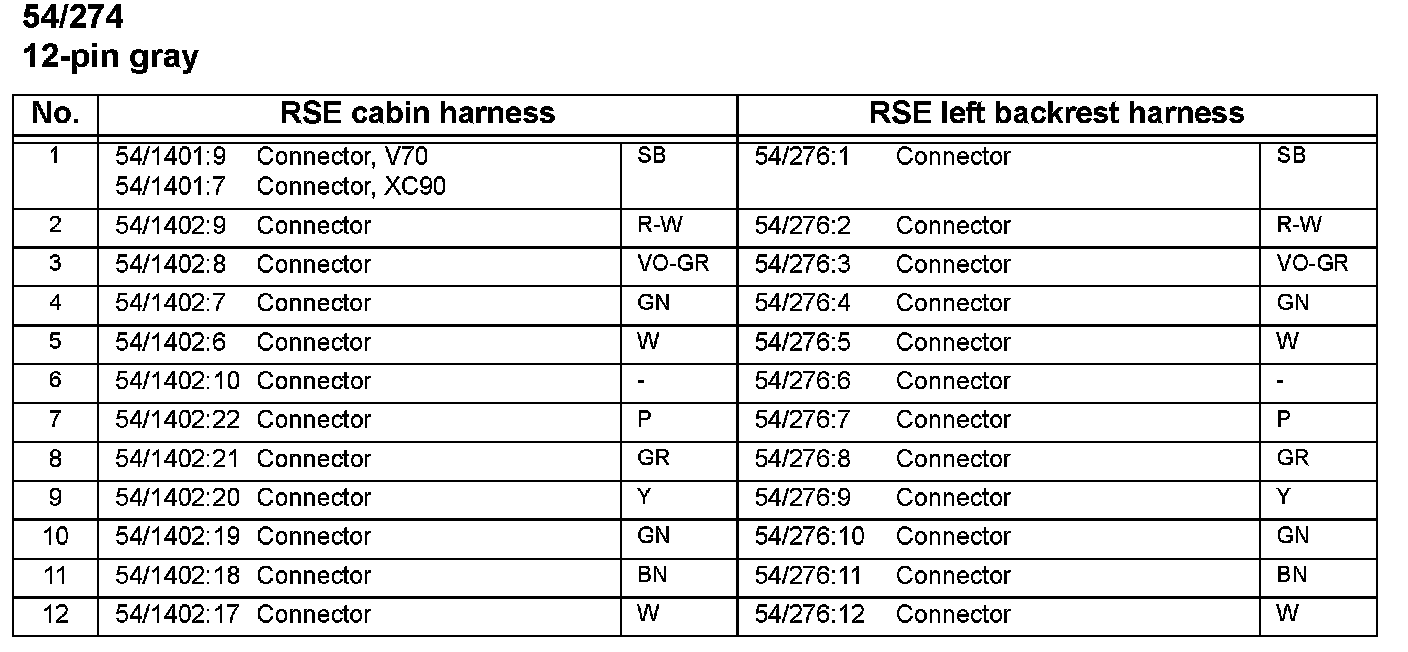

54/274:



54/274 (2006 Late Version):

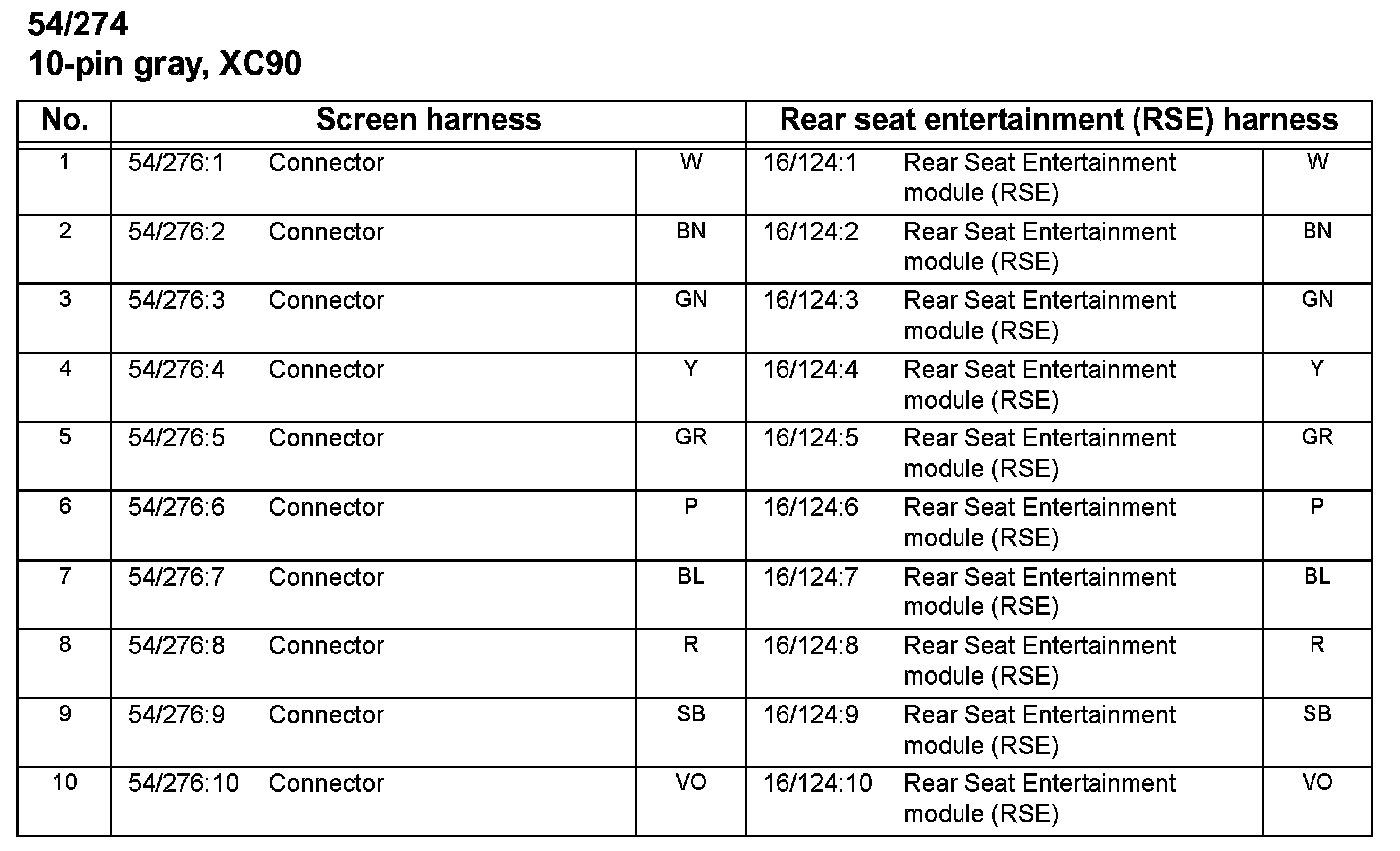

54/274 Connector XC90 (2006 Late Version):
