Rear Seat Entertainment

Rear Seat Entertainment

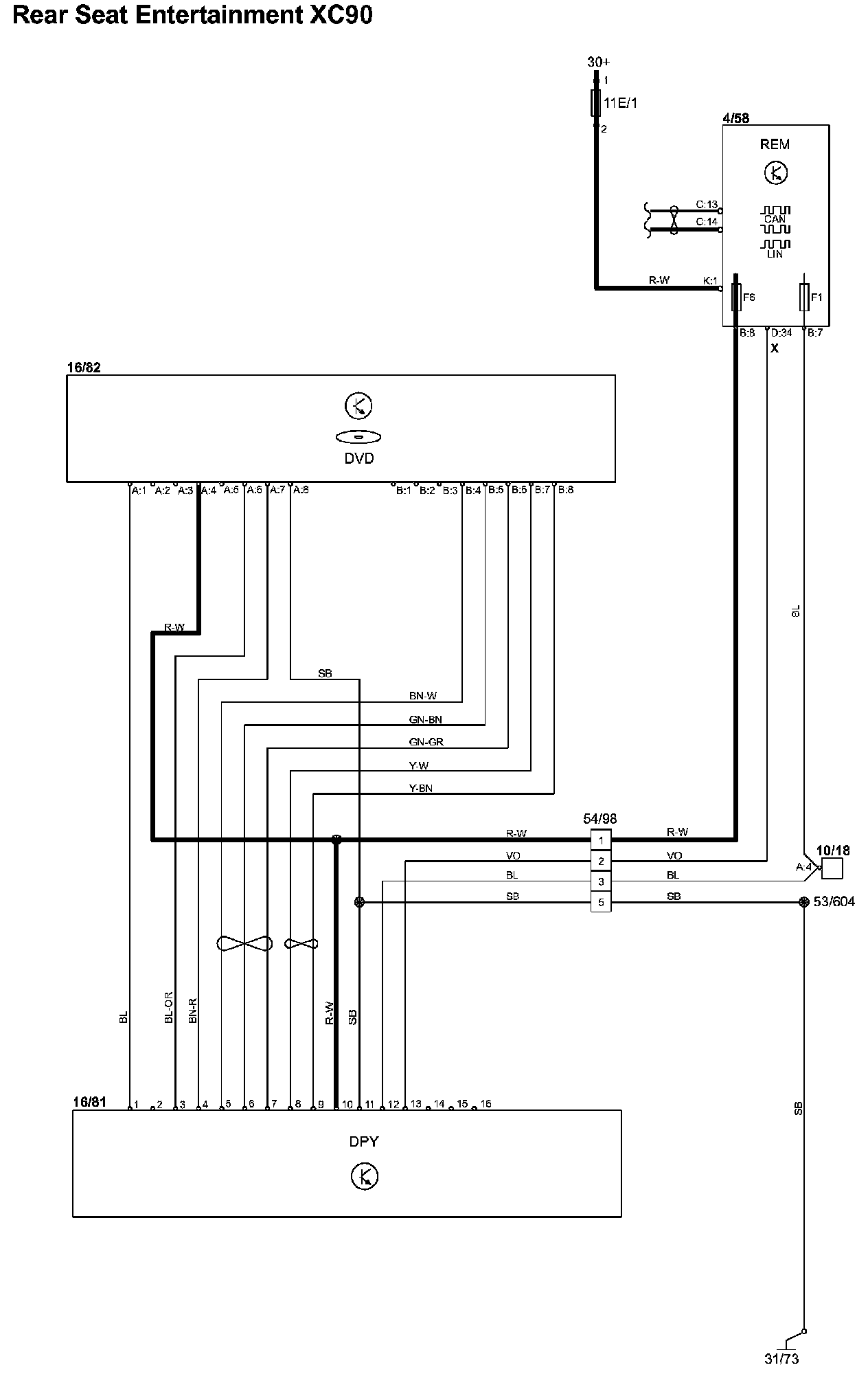

Rear Seat Entertainment:

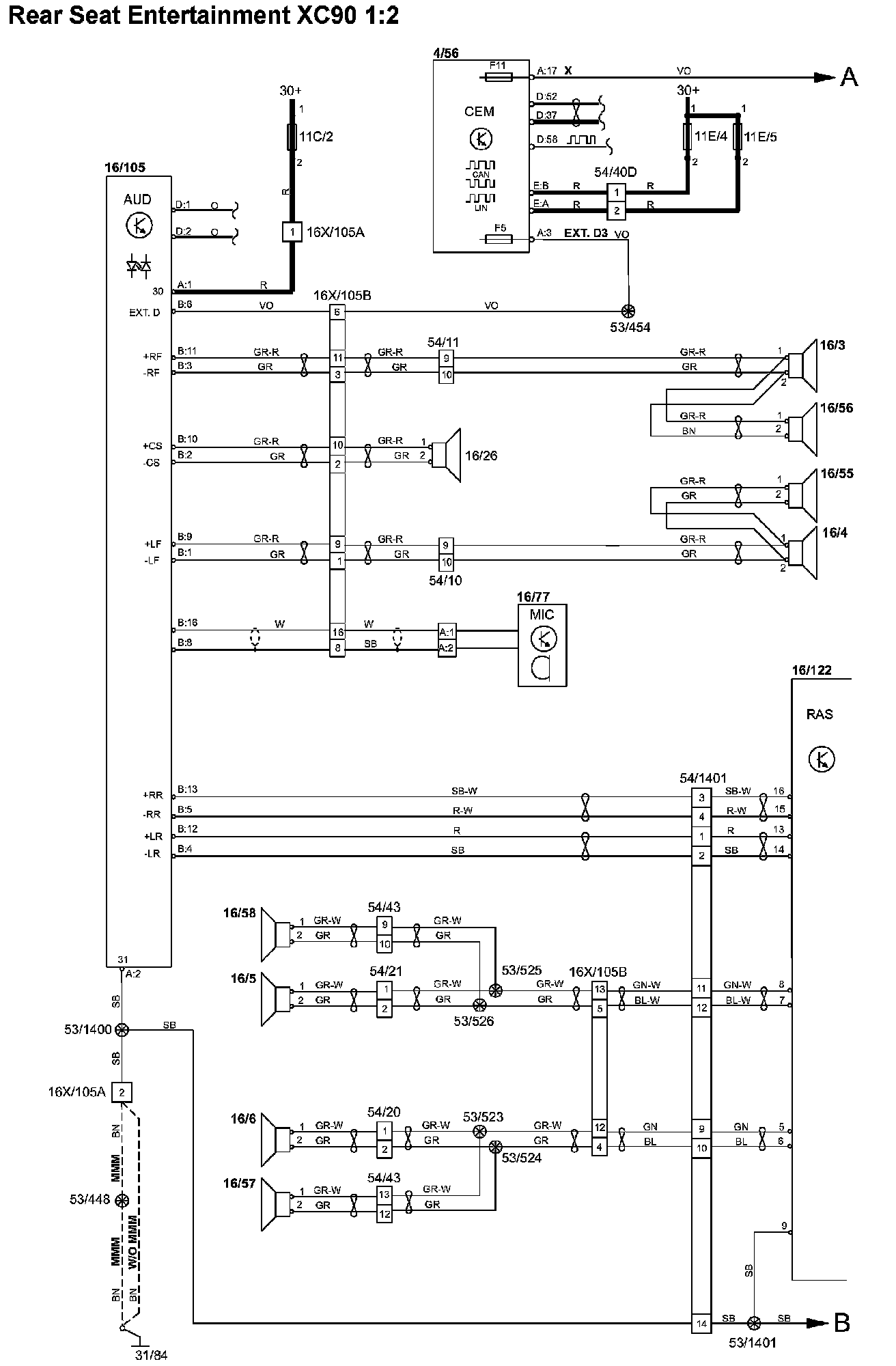

Rear Seat Entertainment 1:2:

Rear Seat Entertainment 2:2:

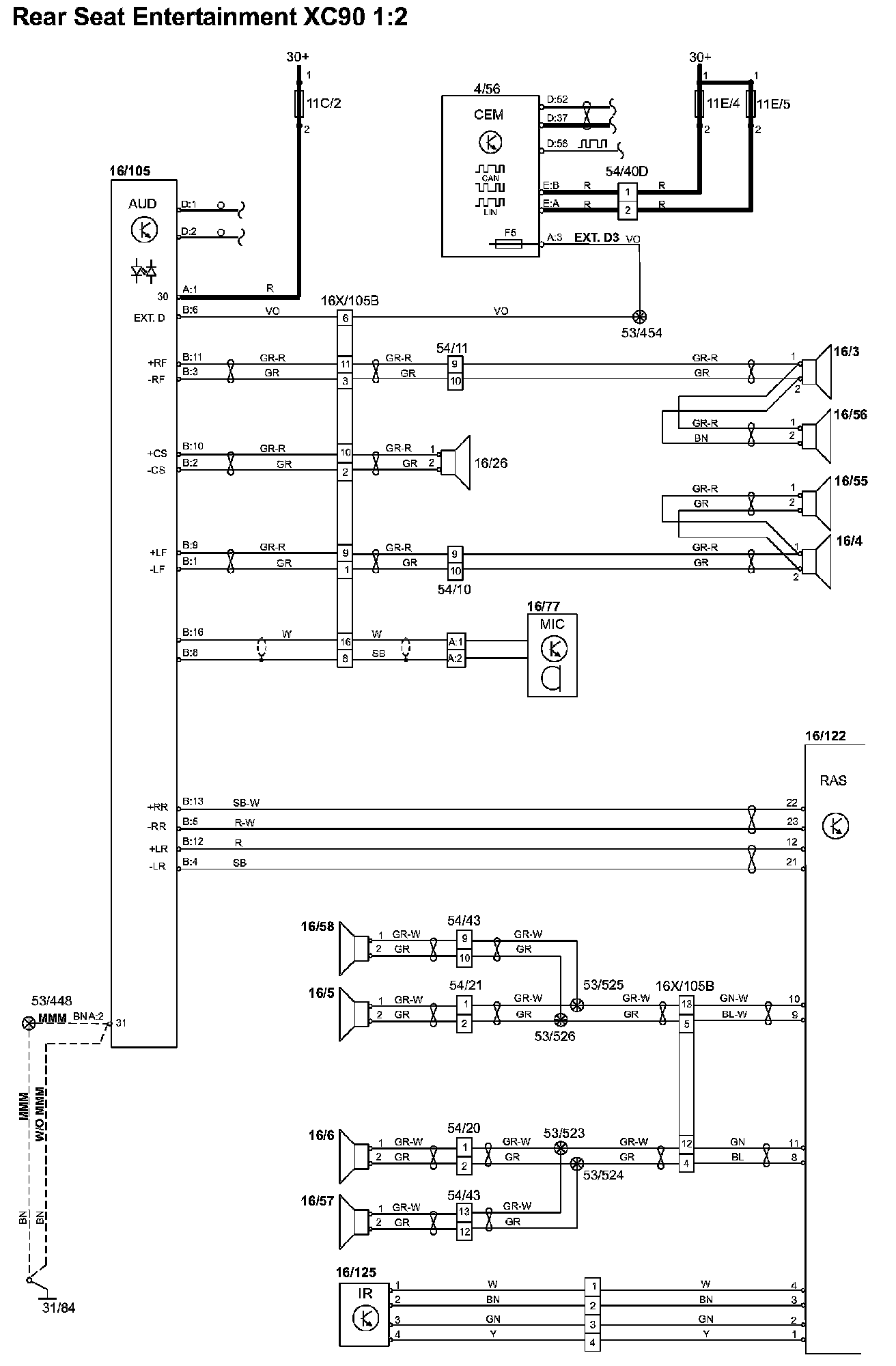

Rear Seat Entertainment 1:2 (2006 Late Version):

Rear Seat Entertainment 2:2 (2006 Late Version):

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code Identification and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
