Global Positioning System: Service and Repair

Receiver GPS, TMC (ATM), replace

NOTE: As the illustrations in this service information are used for different model years and/or models, some variation may occur. However, the essential information in the illustrations is always correct.

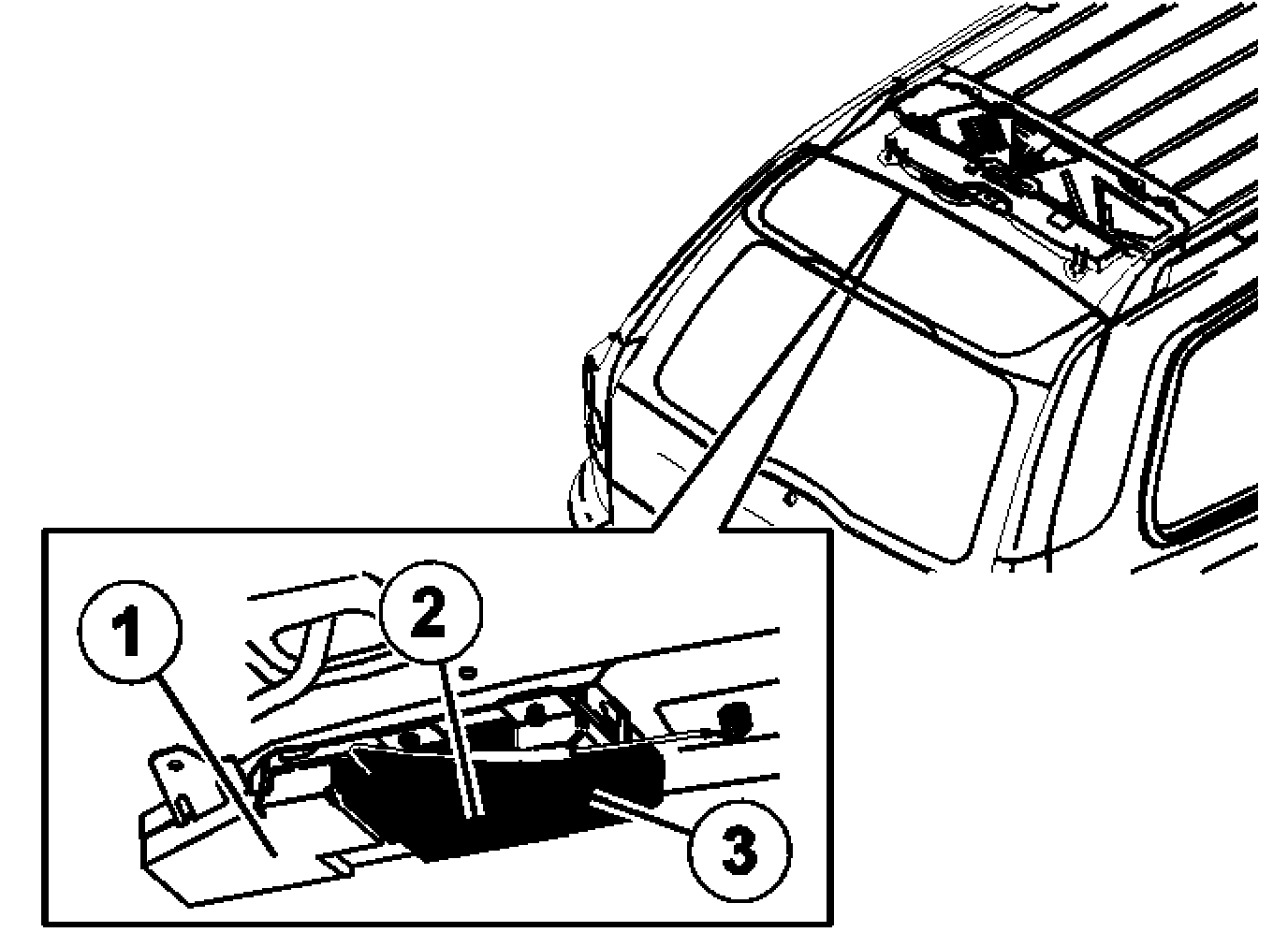

Location







1 The AM/FM receiver.
2 Receiver TMC.
3 Receiver GPS.

Preparatory work

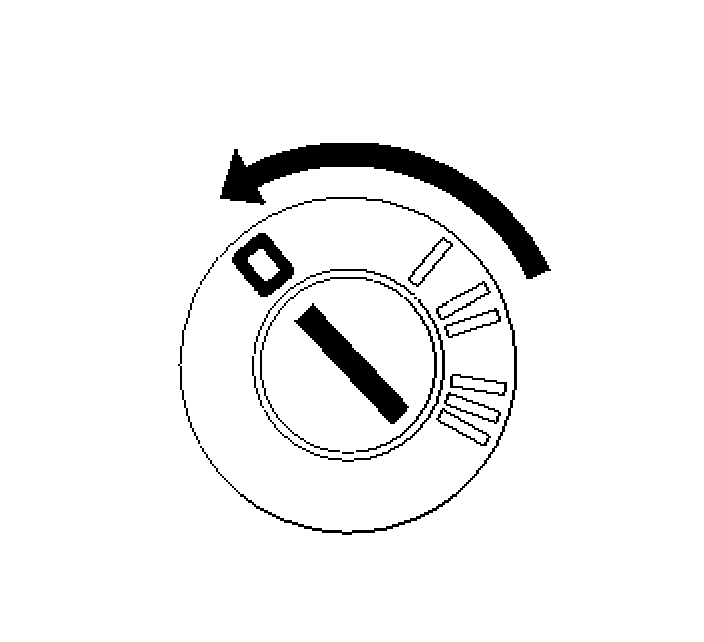

Ignition off.

Remove the centrail.

Removing the receiver GPS/TMC

NOTE: The TMC receiver must always be removed before the GPS receiver.







- Disconnect connector
- Remove the screws
- Remove the receiver.

Installing the GPS/TMC receiver

NOTE: The GPS receiver must always be installed before the TMC receiver.







Align the receiver.

Install the screws. Tighten.

Connect any connectors

Finishing work
Install the cantrail (see Trim Panel).

Test the function.
