A/C - Snow Enters Blower Fan During Heavy Snowstorm
TIE Technical JournalTitle Snow in fan motor
Ref No US19883.2.0 en-GB
Issuer -
Partner 3 US 7510 Volvo Cars North America
Func Group 8731
Func Desc heater unit, complete
Status Released
Status Date 2010-09-27
Issue Date 2010-08-25
Reference VIDA

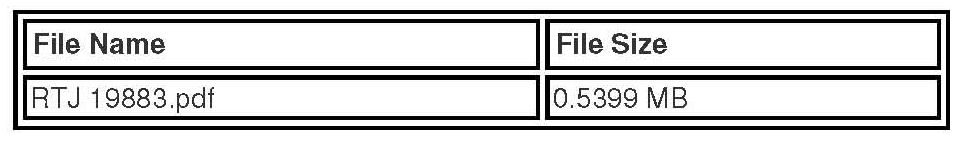

Attachment

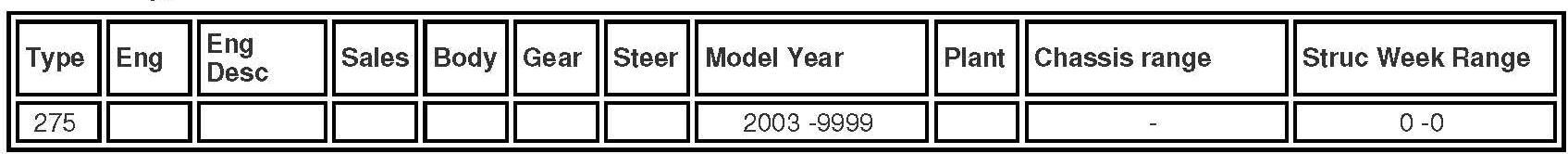

Vehicle Type
CSC
DTC
Text

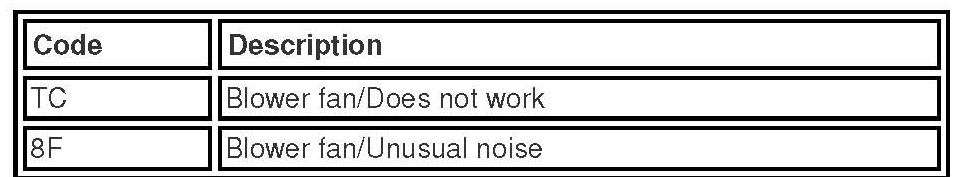

CSC = Customer Symptom Code
DTC = Diagnostic Trouble Code
Note!
If using a printed copy of this Retailer Technical Journal, first check for the latest online version.
DESCRIPTION:
*Snow may enter into the the fan motor area due to heavy snowstorms.
SERVICE:

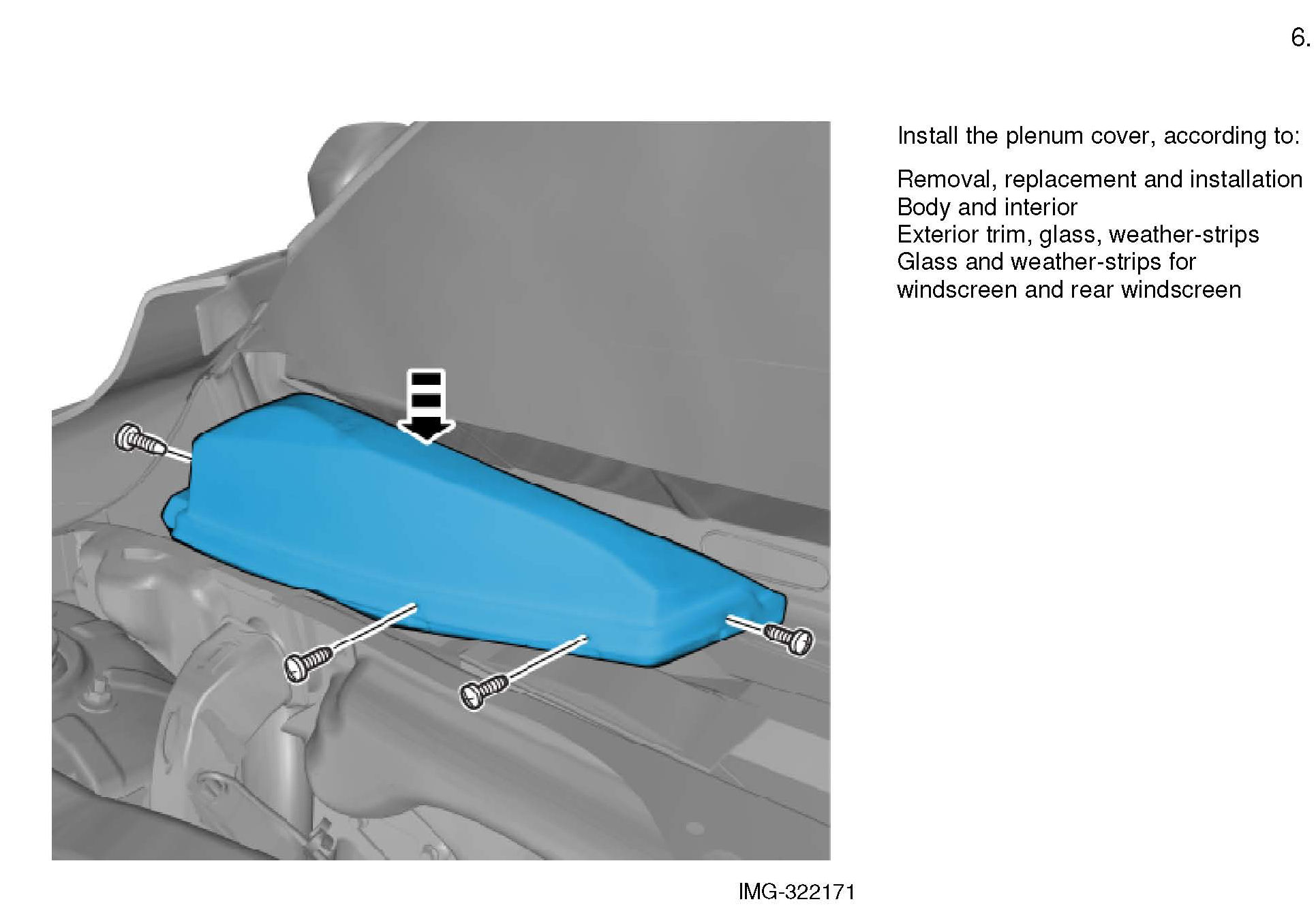

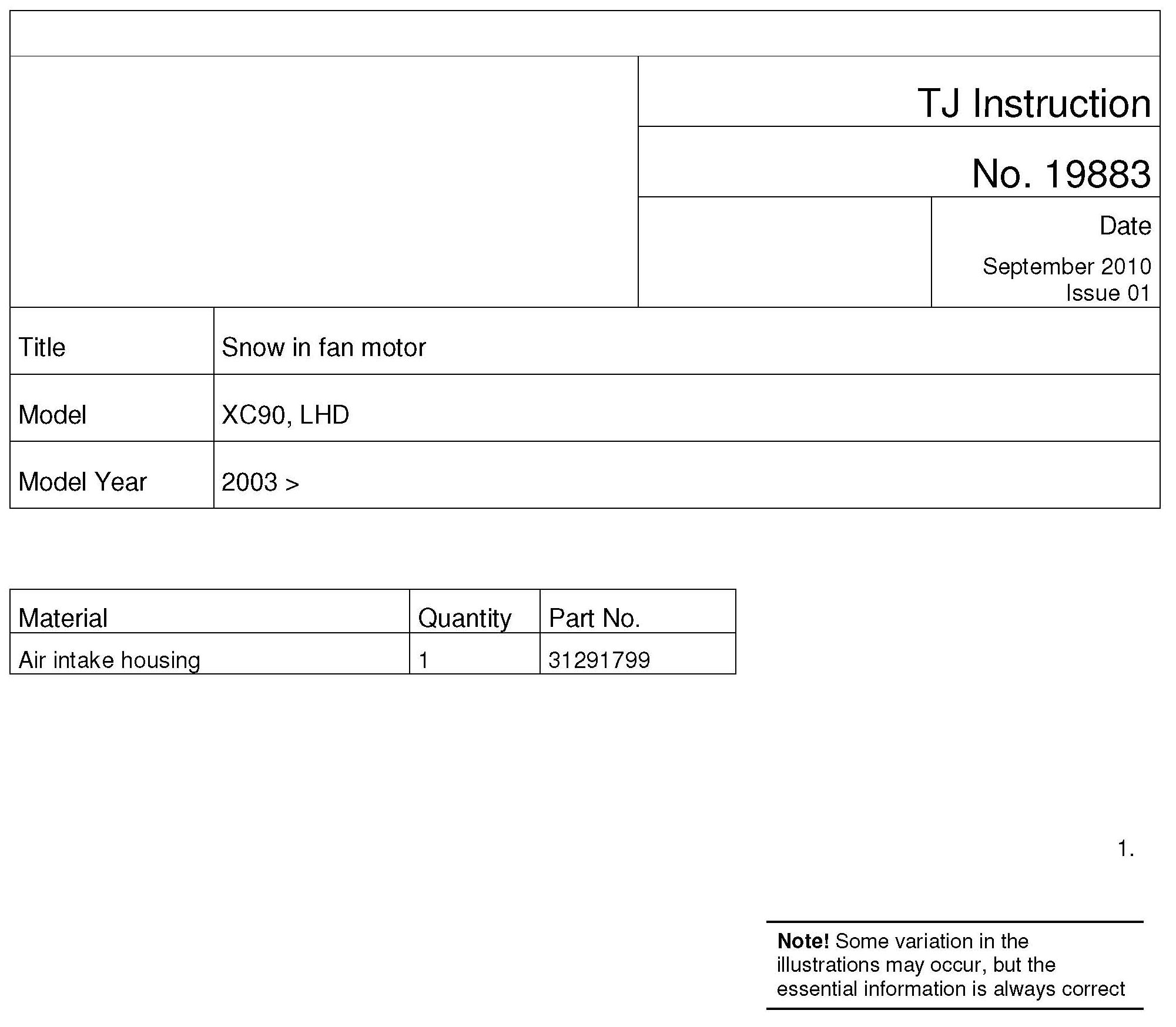

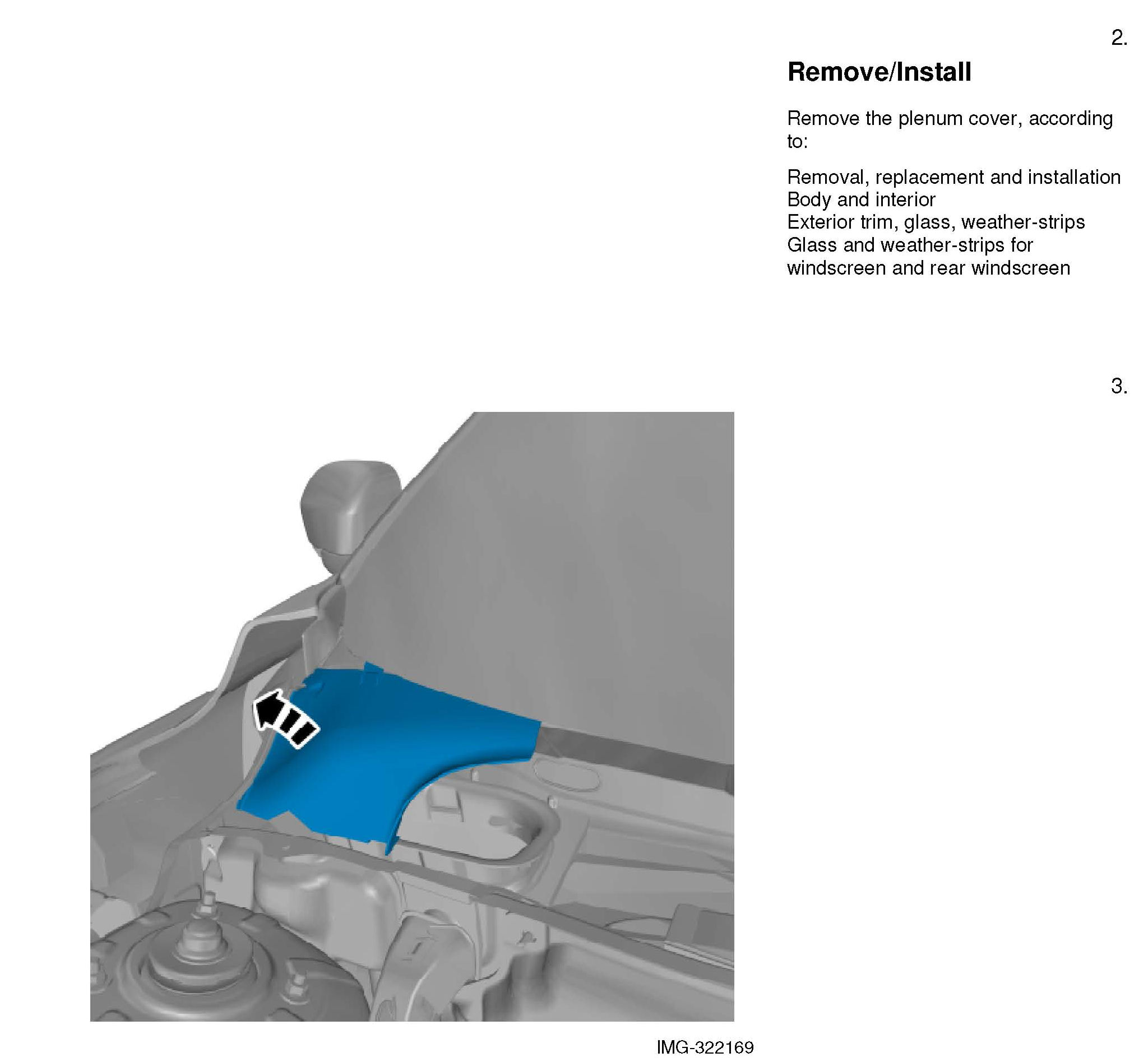

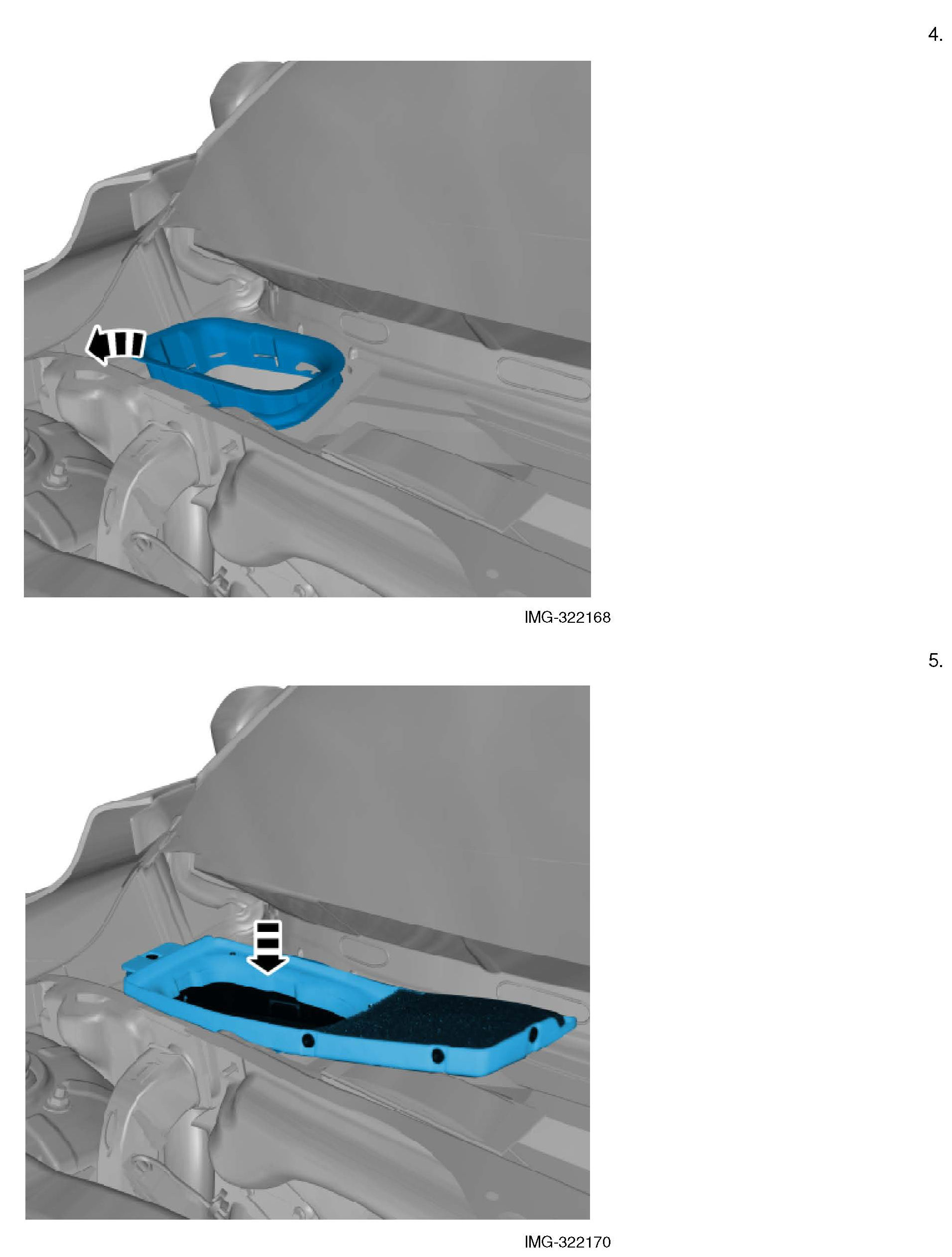

*Install snow cover P/N 31291799 according to attached RTJ instruction.
*Important: this service solution is only for cars used in cold climate areas with heavy snowstorms. If the car is used in warmer climate area this snow cover protection is not needed. Remove the cover and install the original air guide. P/N 30643490.
VOLVO STANDARD TIMES GUIDE (VSTG) INFO:
Operation number -99594-2 Air intake housing replace 0.6hrs.
Claims may be submitted under the new car warranty when there is a documented customer complaint using claim type: 01
- Labor times are valid at the time of release and are subject to change.
