A/T - Revised Shift Cable Replacement
Retailer Technical Journal 20930Gear selector cable,
Updated replacement procedure
Date 06-15-2009
Reference: VIDA, VSTG
Note! If using a printed copy of this Retailer Technical Journal, first check for the latest online version.

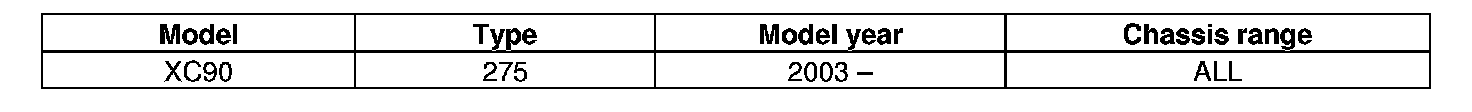

AFFECTED VEHICLES:
DESCRIPTION:
The procedure in VIDA regarding gear selector replacement on vehicles with rear A/C (Air Conditioning) has been updated. The updated procedure will be in VIDA 2009C.
SERVICE:
1. Use the method in VIDA with this supplement for replacement of the gear selector cable. For removal of the gear selector cable, see VIDA:
INFORMATION
REPAIR
Removal, replacement and installation
Power transmission
Transmission
Gear selector cable assembly
Gear selector cables, replacing
2. Remove the left front seat and move it backwards according to VIDA:
INFORMATION
REPAIR
Removal, replacement and installation
Interior
Front seat replacing

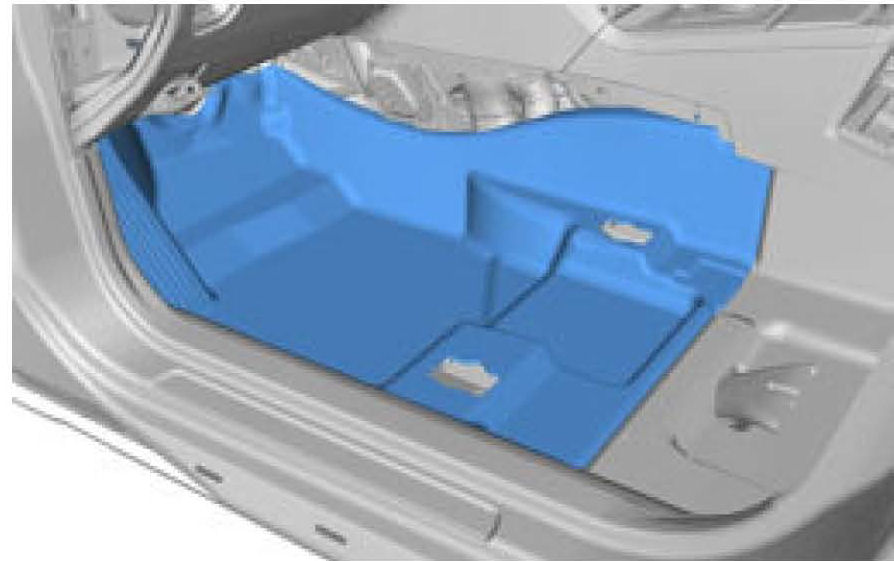

3. Remove driver's side front carpet.
4. Remove strap.
5. Prop up A/C pipe with wood or similar at location 1 2, and 3.
At location 3, use a pry bar to move the A/C pipe away from the gear selector cable attachment point (top left of picture).

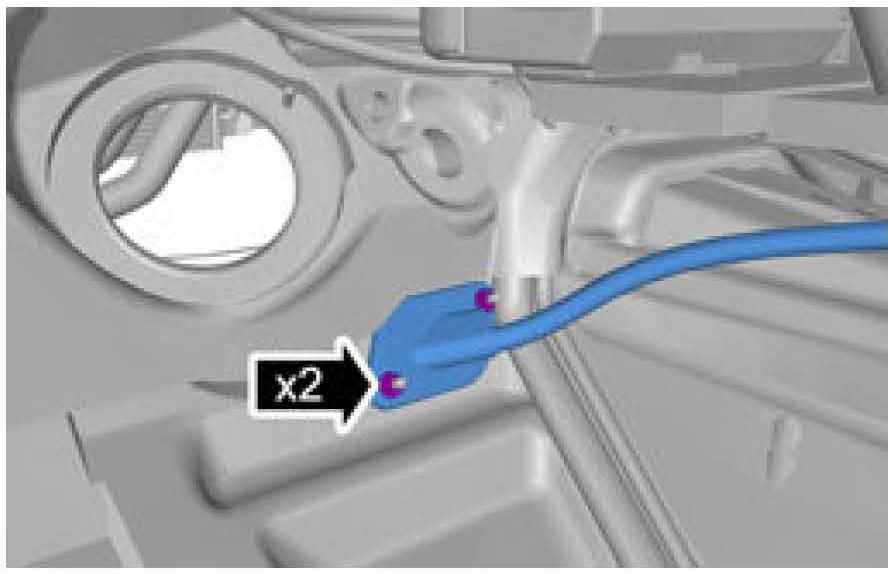

6. Remove two nuts.
7. Continue replacement according to VIDA.

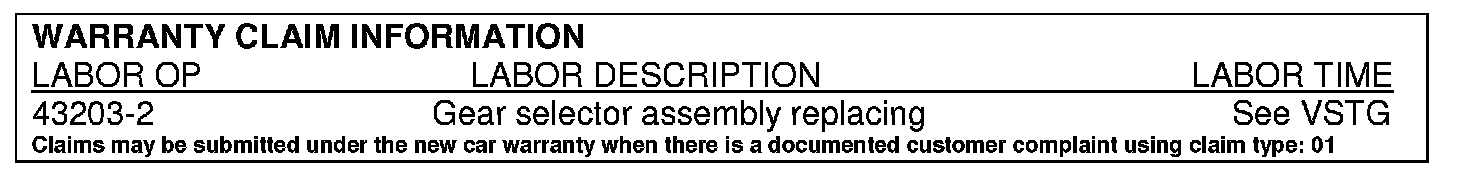

WARRANTY CLAIM INFORMATION
