Lighting - Headlamp Moisture Due To Broken Guide Pin
Technical JournalTITLE:
Headlamp moisture due to broken guide pin
CAR MARKET:
United States and Canada
ISSUING DEPARTMENT:
Technical Service
REF NO:
TJ 27303
ISSUE DATE:
YEAR
2013
MONTH
03
DAY
15
PARTNER:
3 US 7510 Volvo Cars North America
FUNC DESC:
Headlamp, complete
FUNC GROUP:
3521
"Fixed Right - First Time"
Attachment
Vehicle Type

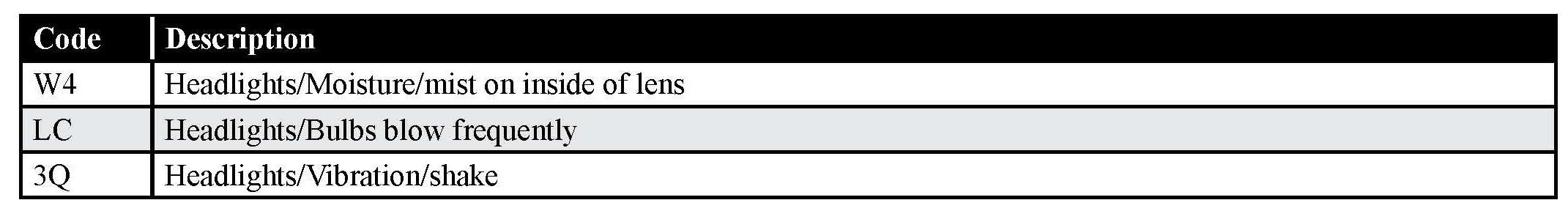

CSC Customer Symptom Codes
Text
CSC = Customer Symptom Code
DTC = Diagnostic Trouble Code
Note!
If using a printed copy of this Technical Journal, first check for the latest online version.
DESCRIPTION:
The headlamp may have a broken guide pin on the headlamp housing. This can lead to moisture. The guide pin is only used in the factory assembly process.Any residual moisture should dissipate shortly with normal headlight use.
SERVICE:

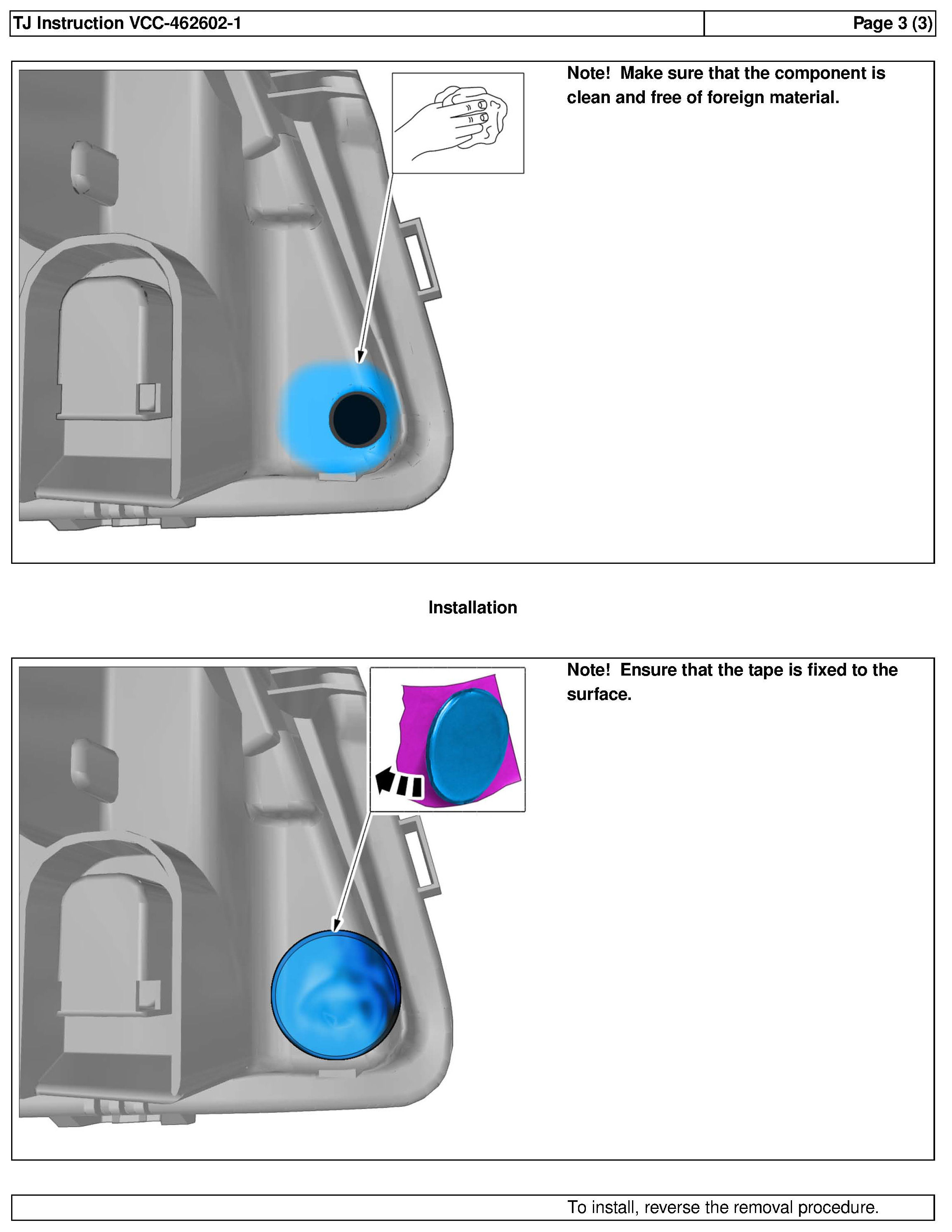

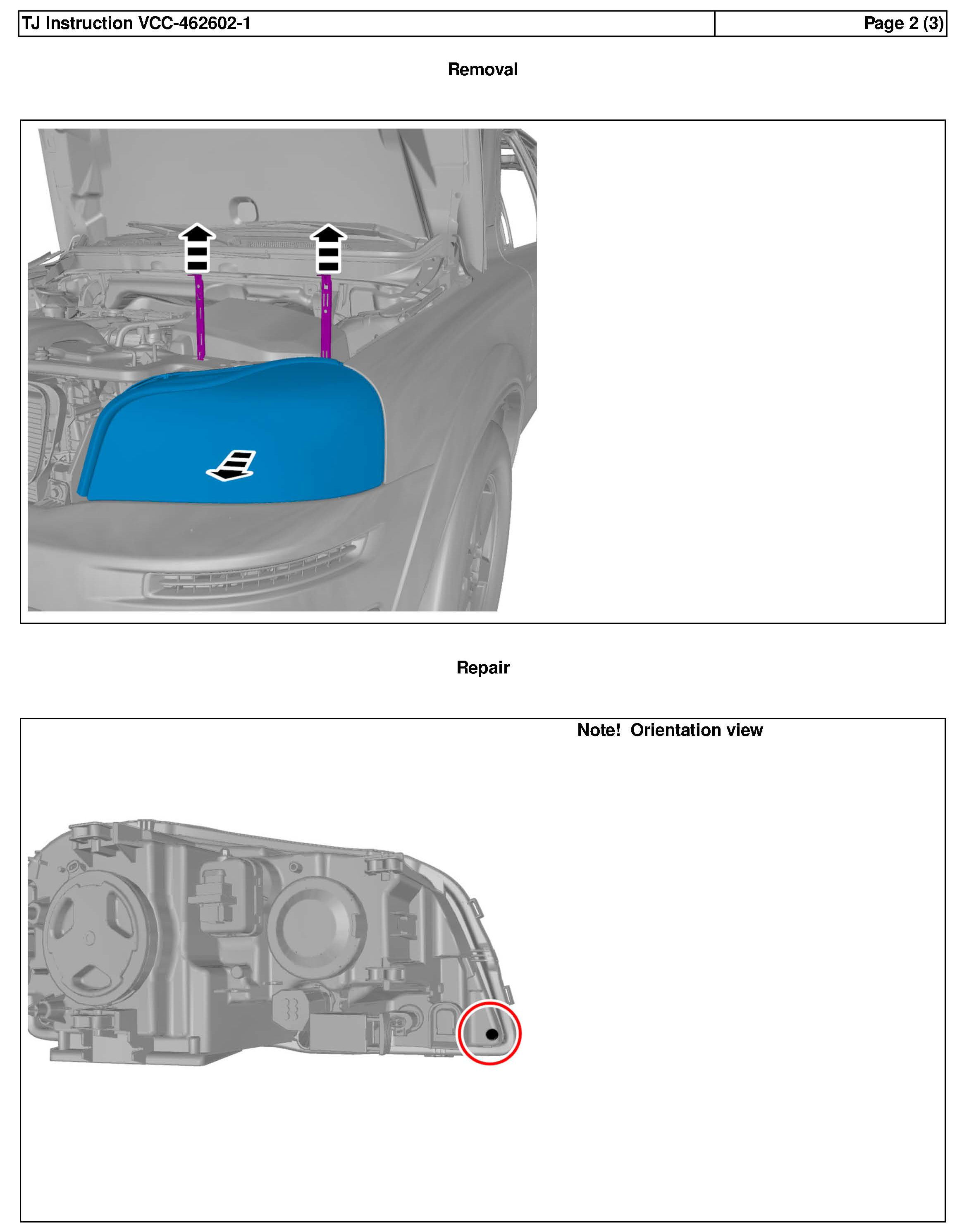

In case of customer complaints, check the headlamp for damages. Repair the headlamp according to instruction.
VOLVO STANDARD TIMES GUIDE (VSTG) INFO:
Operation number *98465-2* - **Head lamp 1 side adjust ** - "0.1 hrs".
- Claims may be submitted under the new car warranty when there is a documented customer complaint using claim type: 01
- Labor times are valid at the time of release and are subject to change.

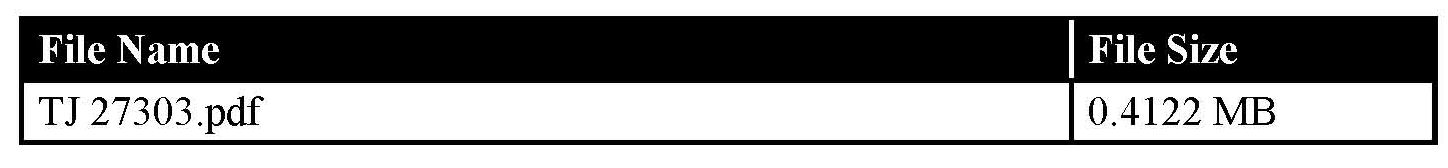

To view TJ attachment: This TJ has 1 attachment.
