Steering/Suspension - Front End Knock On Turns/Braking
TIE - Technical JournalTitle Front control arm bushings, Knocking noise while braking / turning at low speeds
Ref No US17498.7.3 en-GB
Issuer -
Partner 3 US 7510 Volvo Cars North America
Func Group 6122
Func Desc control arm; control arm stay
Status Released
Status Date 2010-04-26
Issue Date 2010-04-26
Reference VIDA, VSTG

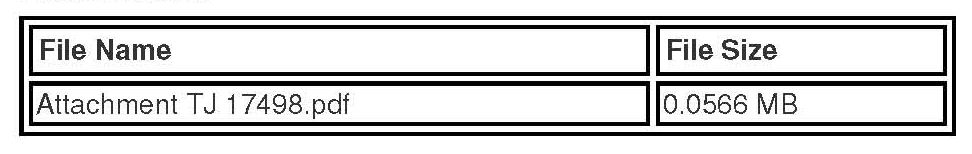

Attachment

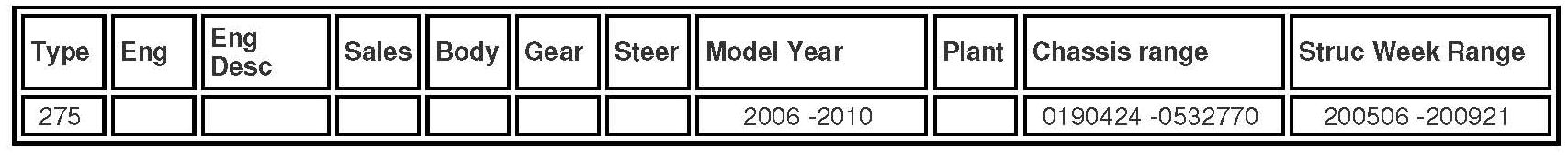

Vehicle Type
CSC
DTC
Text

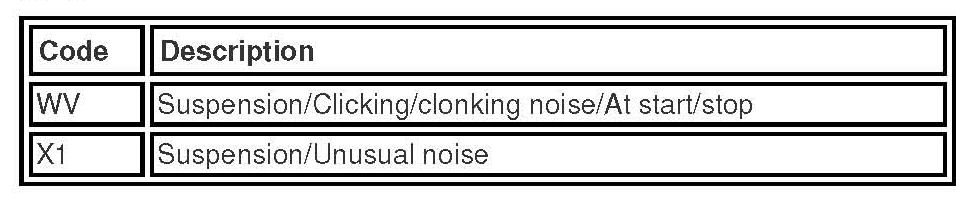

CSC Customer Symptom Code
DTC Diagnostic Trouble Code
Note!
If using a printed copy of this Retailer Technical Journal, first check for the latest online version.
NOTE!
THIS DOCUMENT SUPERSEDES THE PREVIOUS RETAILER TECHNICAL JOURNAL 17498 DATED 11-30-2009. Additional fault tracing has been added and the chassis range has been changed. PLEASE UPDATE YOUR FILES.
DESCRIPTION:
When diagnosing a single knock from the front suspension that occurs when the driver brakes and turns at low speeds attention should be paid to the rear bushing in the front control arm where it connects to the front subframe.
PRODUCT MODIFICATION:

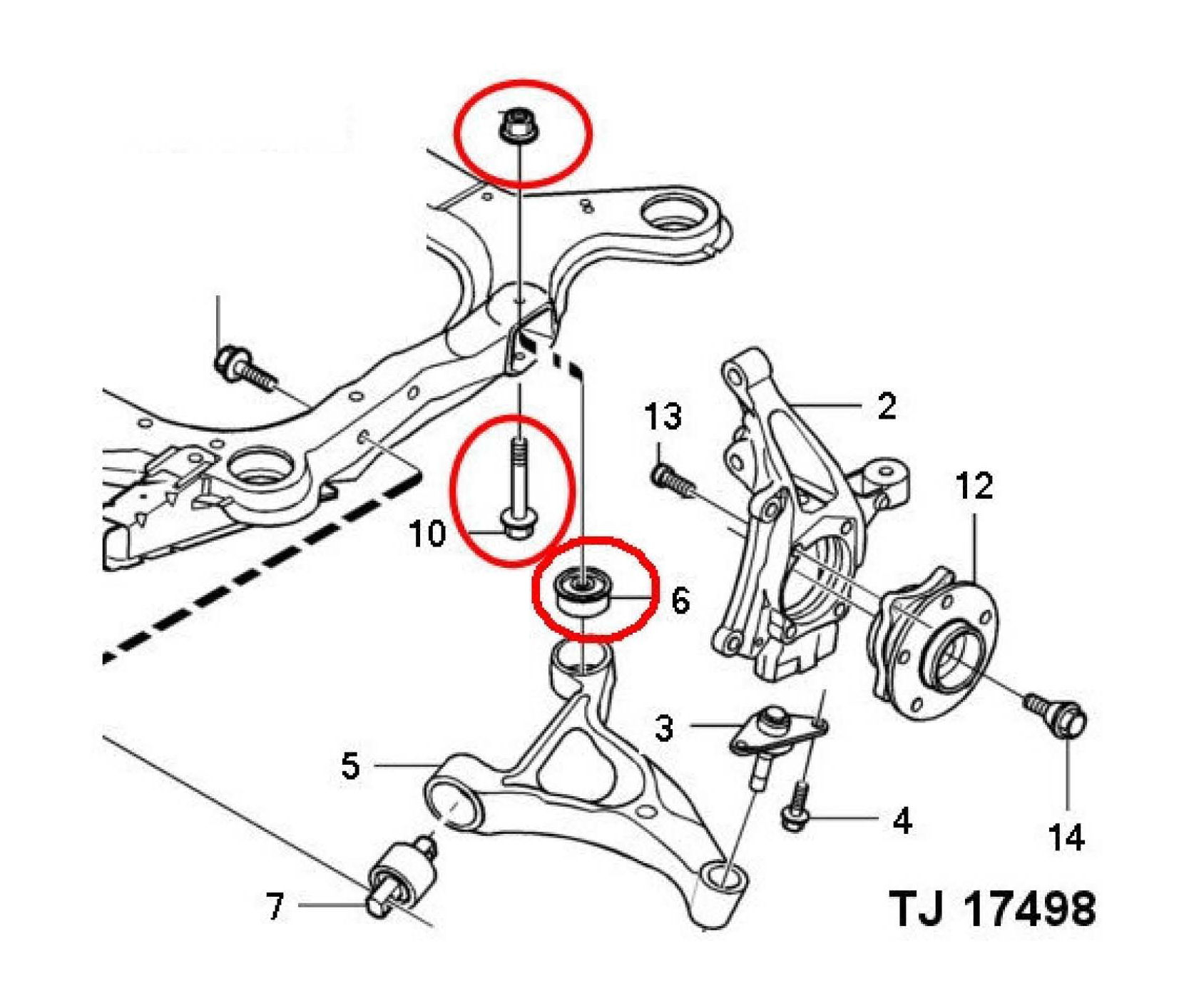

A new screw (note 10 in picture in the attachment) with wider waist was introduced in production during structure week 2008w40 (chassis 512712) to maintain a better connection.
A new control arm with a narrower bushing tube was introduced in production during structure week 2009w21 (see chassis range above). This bushing will minimize the play to only 0.5 mm (0.02") when using it with the new screw. The screw and the bushing are available as spare parts.
SERVICE:
First carry out basic analysis to understand where the noise is coming from. If possible use the Chassis Ear tool kit.
Only for cars before chassis number 532770:
If the noise is determined to be coming from the rear bushing of the front control arm replace the rear bushing (PN 31304040) the screw (PN 999403) and the nut (PN 985660) on both sides according to VIDA:
INFORMATION
REPAIR
Removal replacement and installation
Suspension and steering
Front wheel suspension
Front axle crossmember control arm
Bushings link arm replacing
Note!
It is very important to tighten the nut to the proper torque found in VIDA!
VOLVO STANDARDS TIME GUIDE (VSTG) INFO:
Operation number 99513-2: Screw/nut link arm 1 side replace - 0.2 hrs
Operation number 61216-2: Front control arm remove-install/replace (2 sides) - See VSTG
Operation number 61246-3: Bushing rear control arm front replace (use 2x) - See VSTG
Operation number 99521-2: Chassis ear tool kit install/remove (only if chassis ears are used) - 0.4 hrs
