Signal Description, Traffic Message Channel Module (TMC)

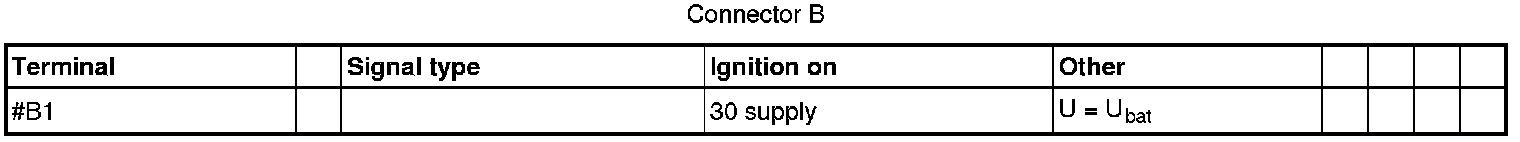

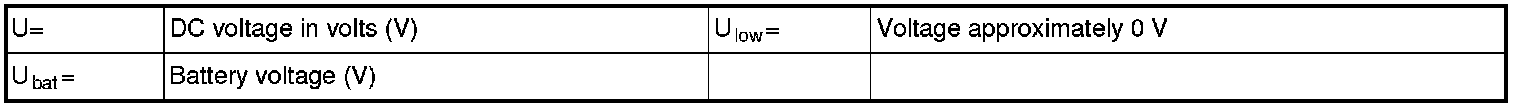

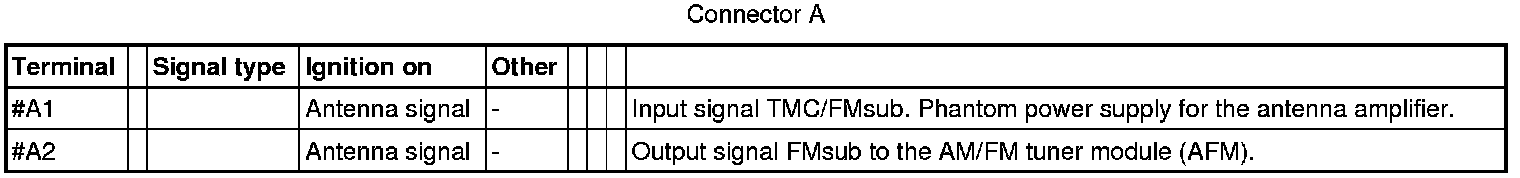

Signal specification

General

Note! It is important to check ground terminals before taking readings.
