Mobility Connection Package [1 of 5]
Mobility Connection Package, C30
INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimise the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.
Mobility Connection Package, C30
Note! These installation instructions show installation on a left hand drive car. For installation on a right hand drive car, perform the steps on the opposite side and/or mirrored. Where the operations differ, the right hand version is also shown with text and image. When installing Velcro strips/tape, the surface must be at a temperature of at least +20°C (68° F).
Note! Navigation system, portable: For information regarding the GARMIN device, see www.garmin.com.

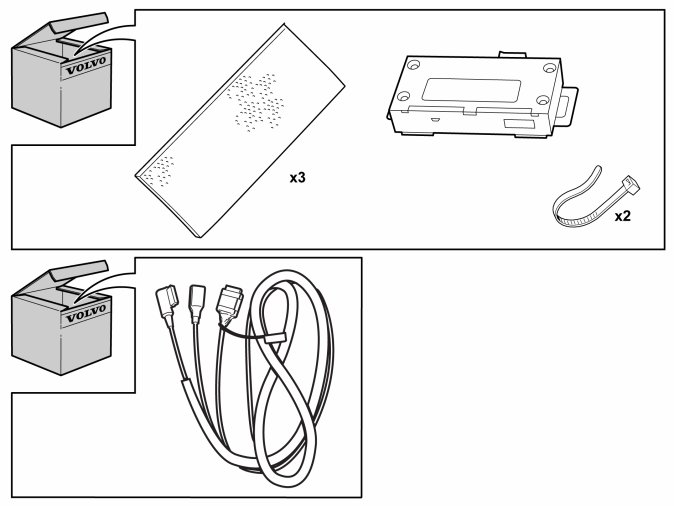

Note! The disc marked A in the kit image is used on cars with central loudspeaker grilles.

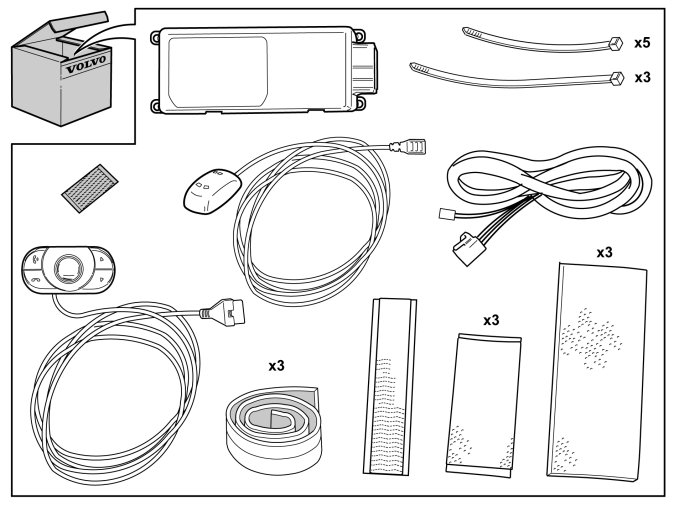

Note! Bluetooth handsfree: There may be parts in the accessories kit that do not need to be used for this installation. Keep the manual for this accessory in a convenient place in the car.

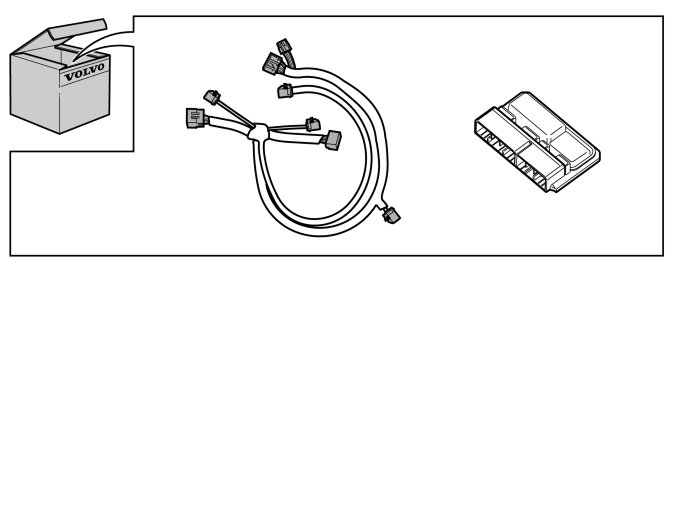

Note! USB/iPod Interface: This accessory requires unique software.
Note! Take care when handling the components, they are fragile and are easily damaged.
- Take the three screws M5x25 part no. 986957 and nuts from the kit.
- To prevent excessive resistance when the nut for the holder is tightened, hold the screw and screw the nut on and off the threaded part of the screw. Carry this out on all screws and nuts.
- Take special tool 9814104 (torx driver, torx 6), and unscrew the two screws holding the connector in the holder.
- Carefully push the connector to one side with the cable to expose the bottom of the holder.
- Take the kit with the four spacers from the installation kit.
- Carefully pry off the spacer using P/N 31212784. The part number (1) is on the bottom of the spacer.
- Take the three screws and insert them in the spacer fully.
- Apply pieces of butyl tape to the screws so that the screw heads do not protrude outside the spacer when installing it.
Illustrations A and B
- Install the spacer in the bottom of the holder.
- Ensure that the holder's two screw turrets align between the small pins in the oblong holes in the spacer. A click should be heard when the spacer is securely in position.
- Place the connector in the bottom of the hole. The guide hole (1) in the connector's circuit board must align in the corresponding pin at the bottom of the holder and the holes (2) in the circuit board must be over the holder's screw turret.
- Take the small torx screws and carefully tighten the connector to the holder. Ensure that the connector's circuit board is properly against the screw turret and that there is no play.
- Remove the butyl tape from the screws.
- Turn the ignition key to position 0.
Note! Wait at least three minutes before unplugging the connectors or removing other electrical equipment.
