Mobility Connection Package [5 of 5]

Sections 68-71 apply to cars without loudspeaker grilles

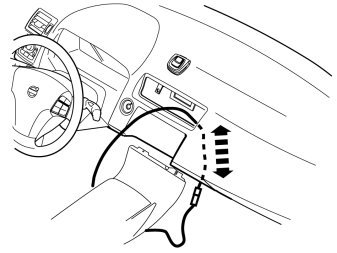

- Insert a wire spiral from the outlet where the air outlet was located and down to the right-hand side of the tunnel console.
- Tape the connector and a piece of the cable harness to the wire spiral.
- Carefully pull the cable harness up through the hole for the air outlet.

- Connect the cable from the cradle to the routed cable.
- Secure the two green connectors using a piece of butyl tape in a suitable place to prevent rattling.
- Pull down all surplus cable and conceal under the floor mat.

- Connect the cable to the warning flashers.

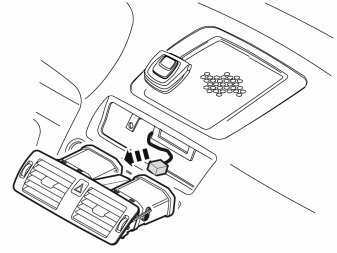

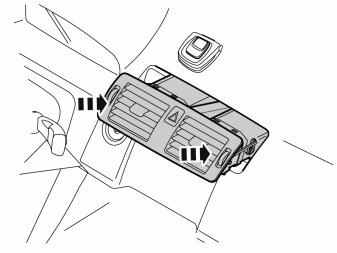

- Press the air outlets into place in the dashboard. Make sure the cable to the cradle is not pinched.

Sections 72-78 apply to cars with loudspeaker grilles

- Remove the short connection cable from the kit and connect to the routed cable harness.

- Pull up the cable through the hole in the loudspeaker console.

- Connect the connector in the routed cable to the connection on the cradle.

Note! Ensure the three screws fit in their holes before securing the grille.

- Push the cable through the holes in the grille and loudspeaker console.
- Carefully push on the loudspeaker grille with the cradle on the loudspeaker console. File out the holes for the stud bolts if necessary.
- Remove the paper from inside the dashboard and the air ducts.
- Secure the two green connectors using a piece of butyl tape in a suitable place to prevent rattling.
- Pull down all surplus cable and conceal behind the floor mat.

- Connect the cable to the warning flashers.

- Press the air outlets into place in the dashboard. Make sure the cable to the cradle is not pinched.

Applies to all models

- Fold the carpet to the right of the center console.

- Take the cable harness from the kit.
- Route the cables on the right-hand side of the centre console.

Note! The fibre cables must not be bent with a radius less than 25 mm (1"). Make sure the cables are routed so there is no risk of wear.

- Take the relay and two thick pieces of foam tape from the kit.
- Connect the connectors from cable harness A to the mute relay.
- Tape the foam tape pieces around the relay.

- Place the relay between the white metal bracket (1) and the climate unit, high up on the bulkhead partition.

- Take the control module and 2 pieces of foam tape from the kit.
- Bend the mountings in on the control module.

Illustrations A and B

- Remove the protective film on the foam tape and attach as illustrated.

- Connect the USB and iPod connector and the fiber-optic cable's connector to the control module.
- Clamp the USB/iPod cable at the eyelet on the control module using a cable tie.

- Place the adapter between the carpet and the climate control unit as illustrated.

Note! Do not damage the fibre optic cable.

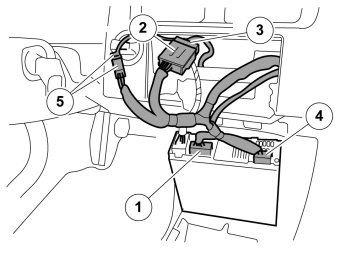

- Connect the gray connector (1) in the new cable harness to the corresponding socket in the media player.
- Connect the gray connector (2) in the new cable harness to the gray connector (3) which was detached from the media player.
- Plug in the connector (4) on the adapter cable's fibre cable to the media player.
- Plug in the remaining connectors (5) on the fibre cables to each other.
- Plug in the remaining connectors that were disconnected from media player.
- Take a 700 mm (27 9/16") long piece of foam tape and cut into three equal pieces. Tape around the connectors (2) and (3). And a little around the connectors (5).

- Position the connectors to the left in the opening so that they are not in the way when the media player is installed.
- Plug the remaining connectors which where detached into the media player.
- Reinstall the media player and secure it.

- Clean the area on the centre console as illustrated, which corresponds to the size of the double-sided adhesive tape. Use a solution of 25% isopropanol and 75% water, as well as a lint free cloth. Wipe dry carefully, do not rub.
- Allow to dry.

Note! In cases where the area is heavily soiled or treated with cockpit shine, first clean using a washing up detergent.

Applies to right-hand drive cars

- Place the control panel cable in the groove as illustrated.

Applies to all models

- Remove the protective film on the control panel and press in position as illustrated.

- Press the cable securely into the compartment that is in the joint between the front and rear side of the center console. Stop level with the lower edge of the display opening.

- Route the cable from the control panel on the right-hand side of the centre console.

- Install the centre console, connect the green connector and fit the screws, two at the top and two on the rear edge.
Applies to cars with manual gearbox
- Install the gear selector boot in the center console starting at the rear edge.

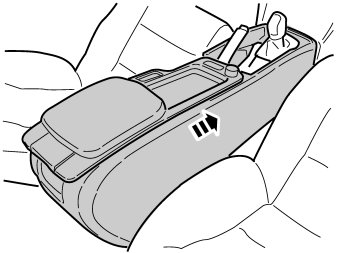

- slide the tunnel console forward so that the locking lug secures it. At the same time, guide in the floor carpet on the left-hand side.
Reinstall:
- the two screws at the front edge of the tunnel console.
- the panel at the parking brake.

- Reinstall the screws.

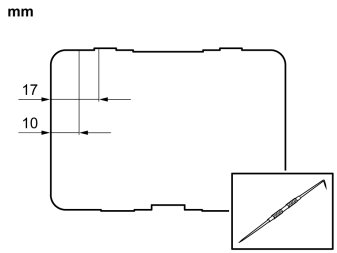

- Make a mark at the rear of the storage compartment's bottom cover for the USB/iPod cable in the position as shown.

- File out two cut-outs at the rear edge of the cover.

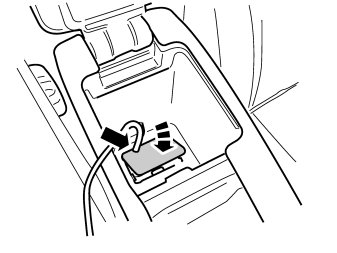

- Place the USB/iPod cable in the bottom cover's slot and pres it into place.

Reinstall:
- the ignition control module (ICM) with the connectors, screws and frame.
- front storage compartment inside of the center console.

- Unhook the sun shield from the bracket. Do this on both sides.

- Remove the locking plug and bracket. Do this on both sides.

- Pull off the driver's weather strip at the A-post and dashboard.
- Pull off the panel from the A-pillar. The panel is secured by three clips.
- Unhook the safety clip.
- Lift the panel upwards and inwards in the vehicle.
- Remove the panel.

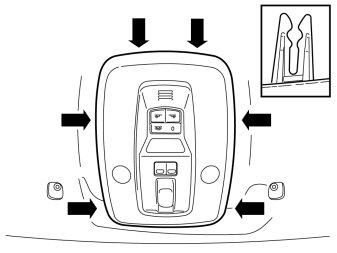

- Remove the interior lighting by grasping the front edge and pulling downward. It is held in place by six catches.

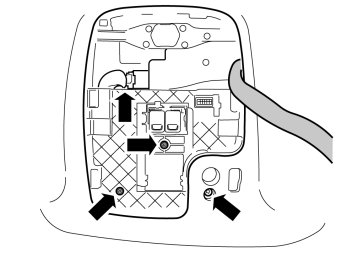

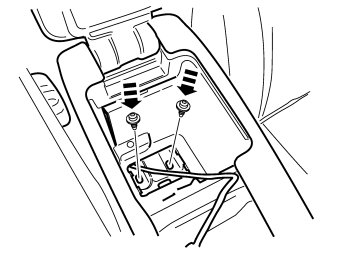

- Remove the three screws.

- Take two 700 mm (27 9/16") pieces of foam tape from the kit.
- Cut one piece of the foam tape in half.

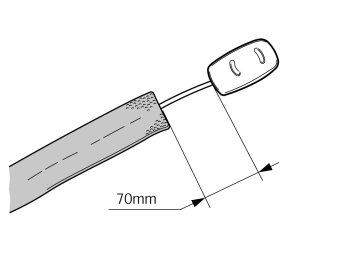

- Tape one long and one short piece of foam tape on the microphone cable starting 70 mm (2 3/4") from the microphone.

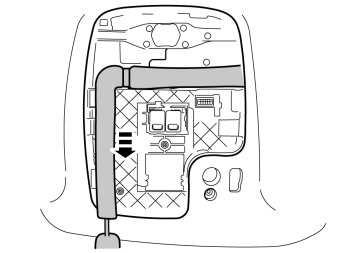

- Pull down the headlining with the interior lighting frame slightly.

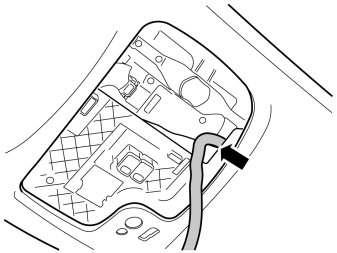

- Route the microphone cable along the top of the existing cable harness as illustrated.

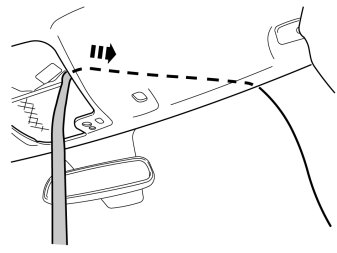

- Route the microphone cable to the front edge of the headlining as illustrated.

Note! Position the cable so that it is not pinched when the sun visor mounting is refitted.

- Make a mark on the foam tape which is attached to the cable, 230 mm (9 1/16") from the microphone.
- Use a cable tie to fasten the cable at the mark at the existing connector.
- Install the three trim screws.

- Hold the microphone cable straight forward and refit the interior lighting.

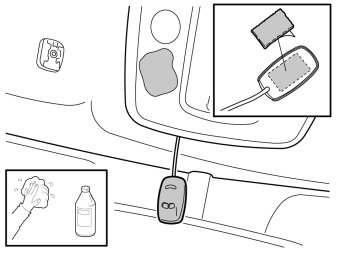

- Clean the microphone and roof panel in the area illustrated, which corresponds to the size of the double-sided adhesive tape. Use a solution of 25% isopropanol and 75% water, as well as a lint free cloth. Wipe dry carefully, do not rub.
- Allow to dry.

Note! In cases where the area is heavily soiled or treated with cockpit shine, first clean using a washing up detergent.

- Remove the backing tape from one side of the Velcro strip and press it onto the microphone.

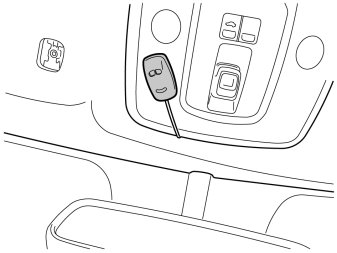

- Remove the remaining backing tape from the Velcro strip and press the microphone securely onto the ceiling panel as illustrated.

Note! Direct the microphone towards the driver.

- Feed in any cable excess.

- Route the cable to the A-pillar and onwards to the glove compartment.

Note! The function of the inflatable curtain can be affected if the cable is routed differently.

- Take three small tie straps from the kit and secure the cable at the A-pillar as illustrated.
- Refit the sun visor mountings.
- Reinstall the A pillar panel and weatherstrip.

- Take the cable harness and control module from the kit. Connect the cable harness to the control module (1).
- Lock the catch (2).

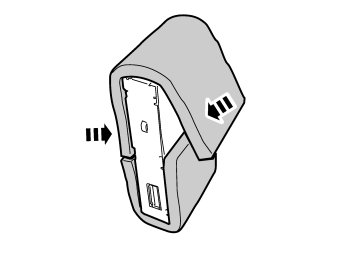

- Get a thick foam tape from the kit and fasten it on the front of the control module. Fold up the foam tape around the corners and edges of the control module.

- Get three small pieces of foam tape from the kit and fasten these on the back of the control module.

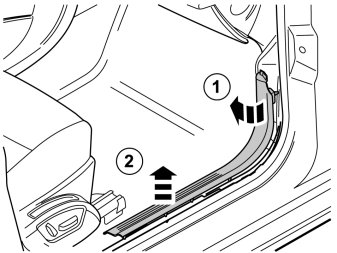

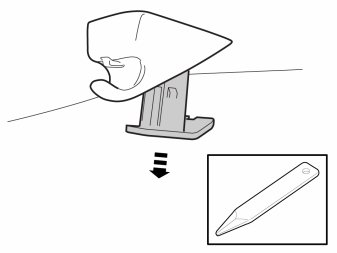

- Detach the front sill molding by first pulling it backwards at the front edge and then straight up so that the clips release.

- Unscrew the clips holding the floor carpet.
- Fold aside the floor mat to access the bulkhead panel inside.

Note! Take care not to create folds in the carpet.

- Place the control module with the thick foam tape forward, against the bulkhead.

- Fold aside the cable harnesses (1) so that they do not end up between the control module and floor mat.
- Route the control module's cable harness under the cable harnesses (2) and on toward the tunnel console.
- Fold back the carpet.

- Connect the connectors for the Bluetooth system as illustrated:
1. cable harness power supply
2. the microphone
3. the control panel
- Take one of the cut pieces of foam tape and tape around the connectors.

- Place the connectors and the excess wiring inside the center console.
- Fold back the carpet.

- Take two large tie straps from the kit and secure the cable from the microphone on top of the collision pipe.

- Reinstall the connectors to the rear section of the glove box. Note the color marking on the cable for the right-hand connector.

Reinstall:
- the lower vent.
- the sound proofing.
- the rear section of the glovebox by guiding it in diagonally inside the center console. Then straight forward. The rear section must be positioned on the outside of the remaining inner section.
- the clip for the vent on the glovebox.
- the panel on the dashboard end face.
- Remove the tape.
- the panel above the centre console. Check that the cable to the control panel is not pinched.
- the sill trim panels.

- Download the software for the accessory's function following the service information in VIDA.

Check the function of the Bluetooth system as follows:
- Turn the ignition key to position I.
- Turn the radio on. Wait 20 seconds.
- Check that the control panel for Bluetooth illuminates. Press the round button (1) in the middle of the control panel. The radio should then mute and a voice should be heard.
- Press the red handset button (2). The voice should now stop and the audio from the radio returns.
