Alternator: Service and Repair

Operation number: 32102-2

Generator

Removal

Note! Removal steps in this procedure may contain installation details.





Remove the air filter housing Refer to: Air cleaner housing Service and Repair

Remove the throttle body Refer to: Throttle body Removal and Replacement

Remove the auxiliaries belt Refer to: Accessory Drive Belt Tensioner, B5244S4 Service and Repair









Remove the following items:

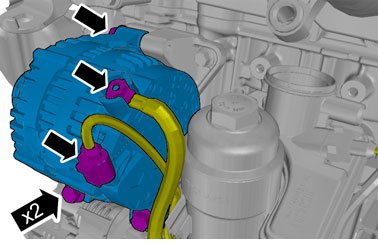

1. Torque: Generator B+ terminal, 15 Nm

2. Torque: M10, 50 Nm

Installation

To install, reverse the removal procedure.
