Windshield Washer Reservoir: Service and Repair

Operation number: 36338-236340-3

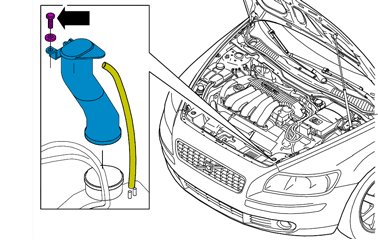

Washer fluid reservoir

Removal

Note! Removal steps in this procedure may contain installation details.





Remove casing bumper front Refer to: Cover bumper front Service and Repair

See information on component position washer reservoir Refer to: Location of components, washer reservoir, B5244S4 Locations





Warning! Be prepared to collect escaping fluid.

Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.
