Home >> Volvo >> 2007 >> C70 L5-2.5L Turbo VIN 68 B5254T3 >> Repair and Diagnosis >> Diagrams >> Grounds >> 31/52

31/52

31/52:

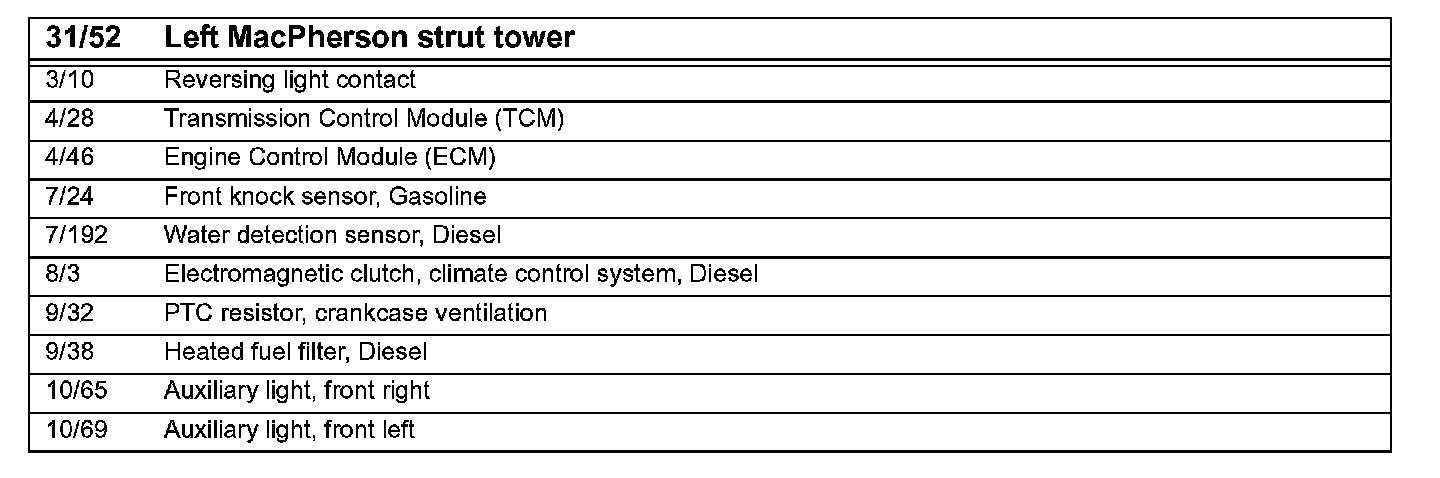

31/52 Ground Connection, Left MacPherson Strut Tower:
