Component Specification



Component Specification, Central Electronic Module (CEM)

Component specification
The resistance values assume a temperature of +25 degrees C unless otherwise stated

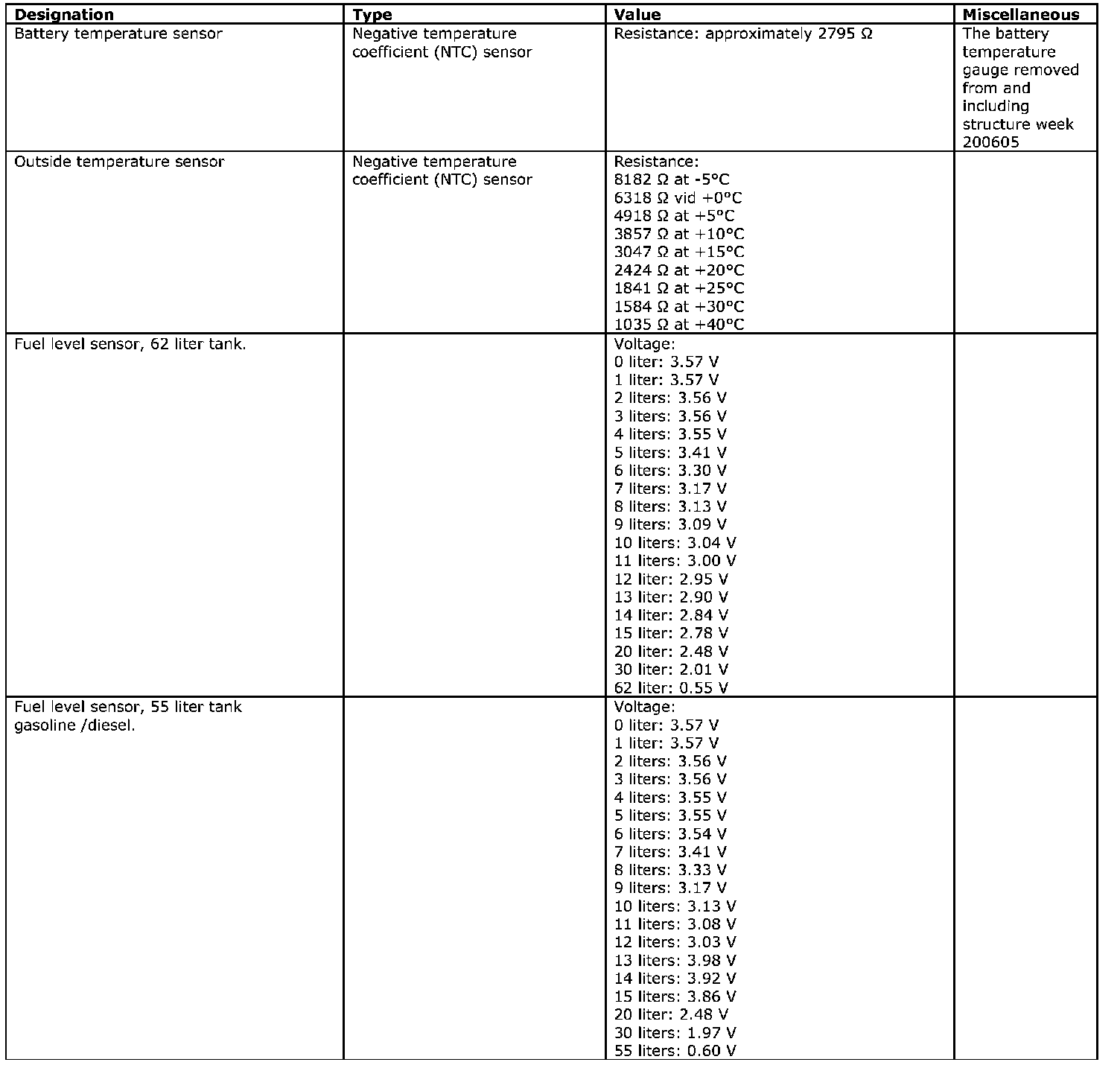

Part 1:




Part 2:
