Operation CHARM: Car repair manuals for everyone.
Home >> Volvo >> 2007 >> S80 L6-3.2L VIN 98 B6324S >> Repair and Diagnosis >> Diagrams >> Connector Views >> 74/508 - Changes Introduced Up to October 2006

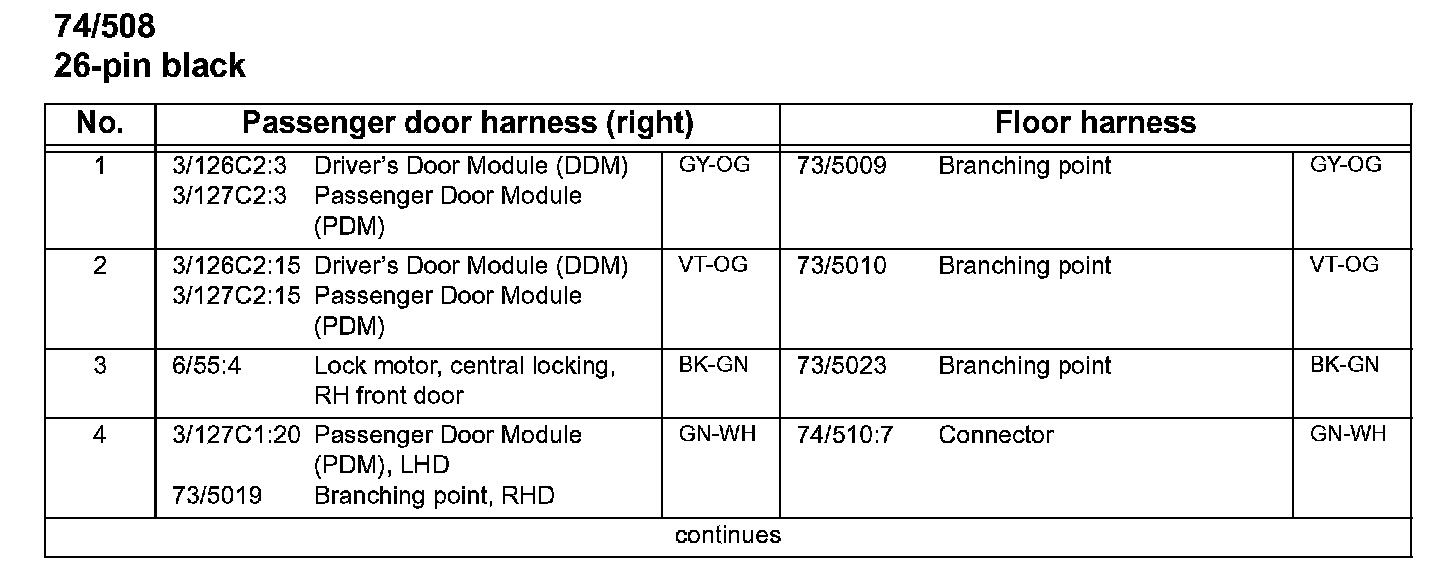

74/508 - Changes Introduced Up to October 2006

74/508:



74/508:
