Wheel Hub: Service and Repair

Rear wheel hub

Operation number: 77371-2

Removal

Note! Removal steps in this procedure may contain installation details.

Remove brake disc rear. Rear Brake Disc

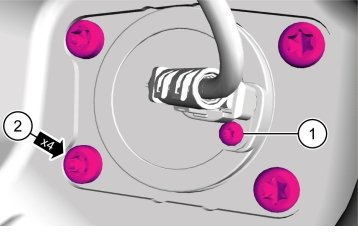

Remove the following items:
1. Torque: M5, 5 Nm

2. Torque: Wheel bearing rear to wheel knuckle, 110 Nm

Installation

To install, reverse the removal procedure.
