Engine Controls - No Crank/No Start/Codes 0100/DE11/0082

Retailer Technical Journal 19666
No Start/No Crank

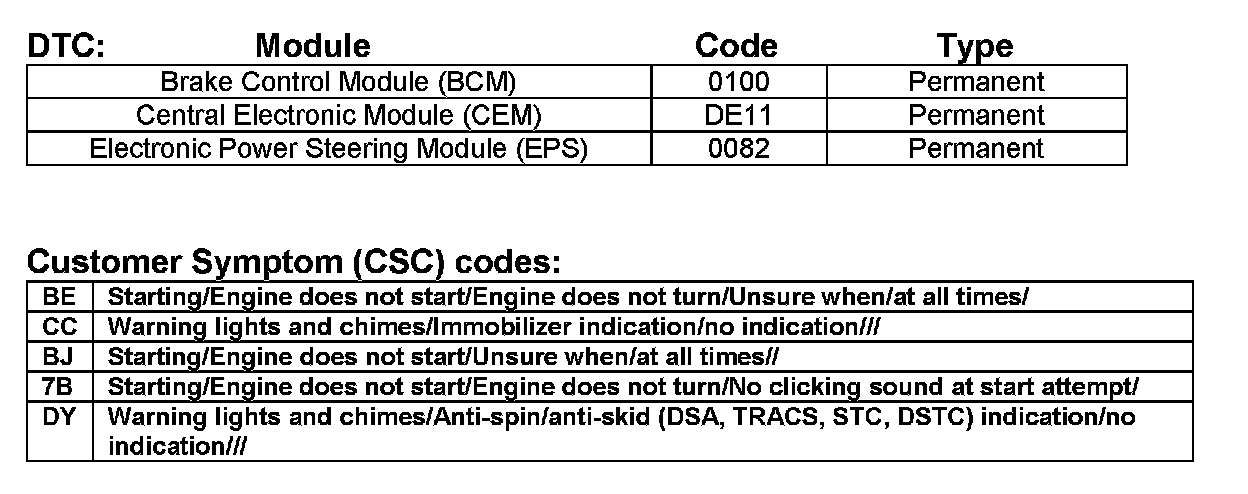

DTC: BCM 0100, CEM DE11 and EPS 0082

Date 01/15/2009

Note!
If using a printed copy of this Retailer Technical Journal, first check for the latest online version.

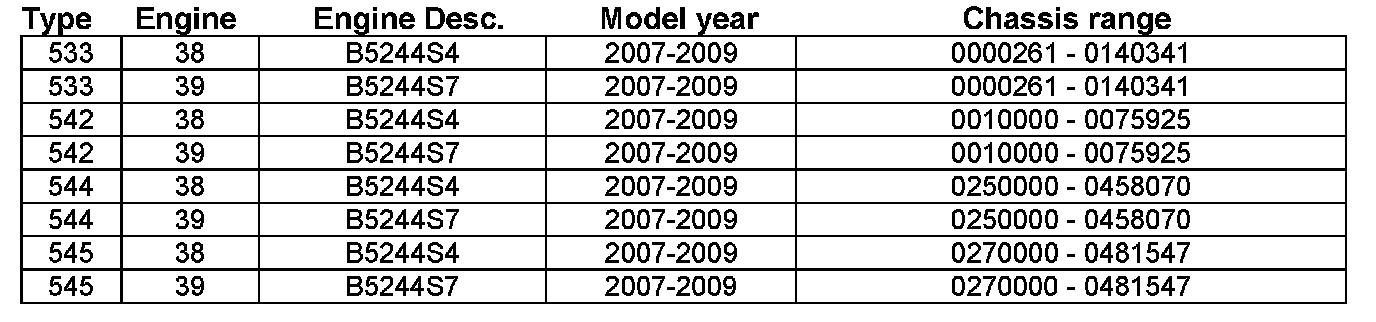

AFFECTED VEHICLES:

DESCRIPTION:
The vehicle may exhibit a intermittent "no crank/no start" condition and in addition, the Drivers Information Module (DIM) will display messages for immobilizer and anti-skid service required, and all three DTCs (Diagnostic Trouble Codes) listed below will be posted.





Note:
All three of the listed conditions should be present before continuing with this diagnosis and repair.

Service:

Perform an ECM upgrade, P/N 30668282.

NOTE:
Do not perform an ECM reload and do not replace hardware components. The condition is software-related.

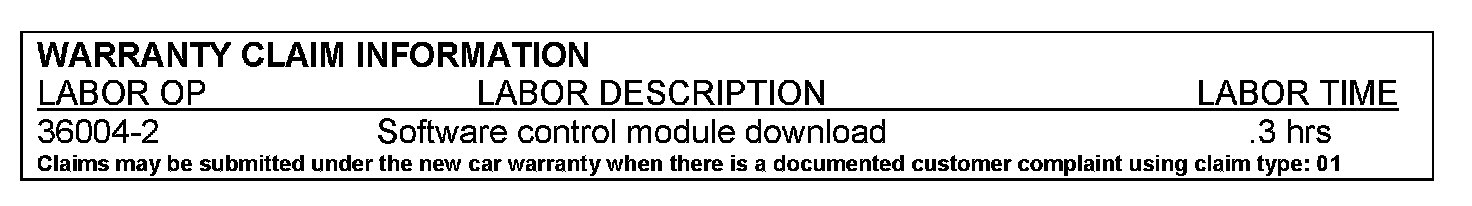

WARRANTY CLAIM INFORMATION
