Home >> Volvo >> 2007 >> V70 L5-2.4L VIN 61 B5244S >> Repair and Diagnosis >> Diagrams >> Connector Views >> Changes Introduced Up to and Including April 2007 >> 54/3.1

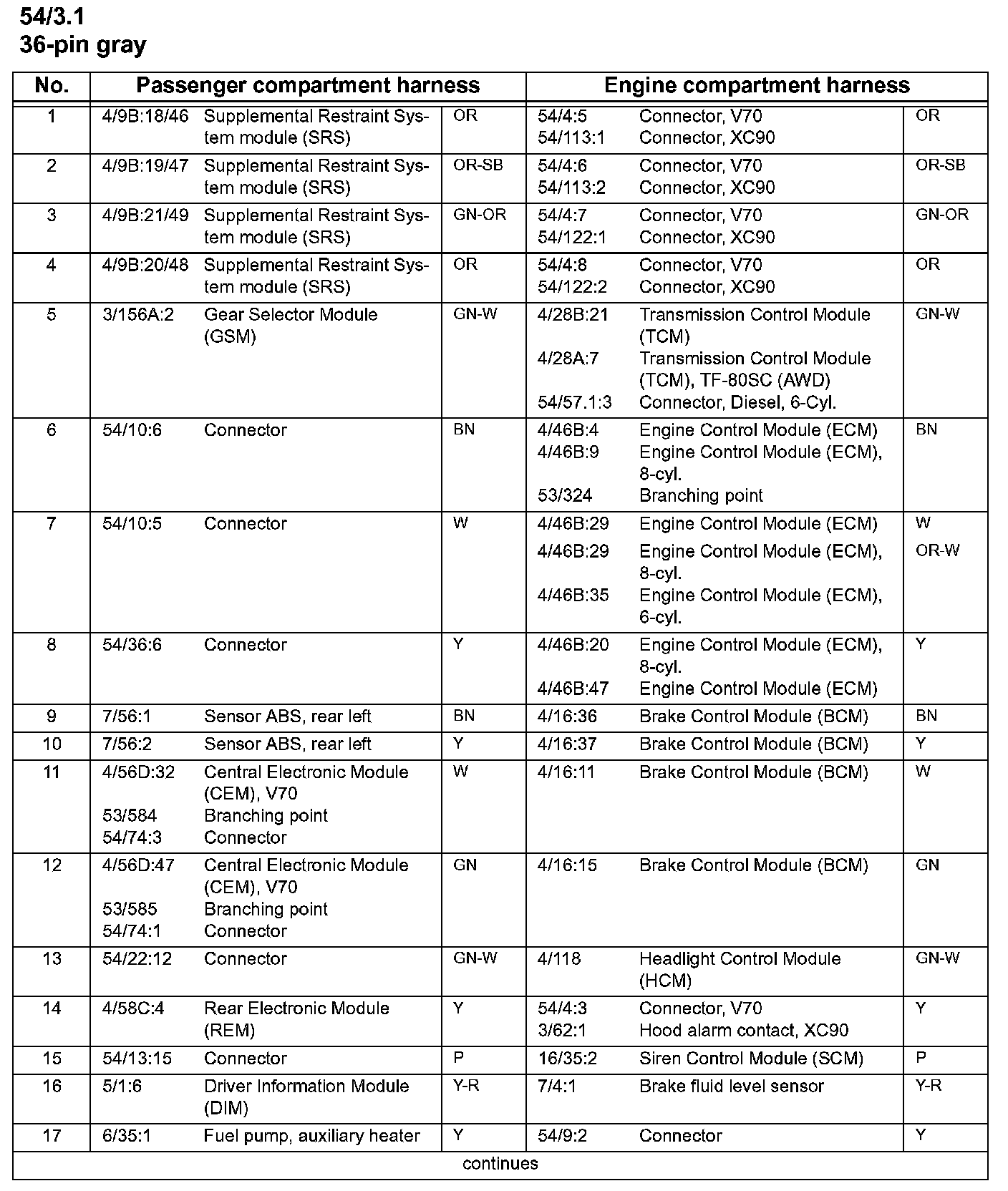

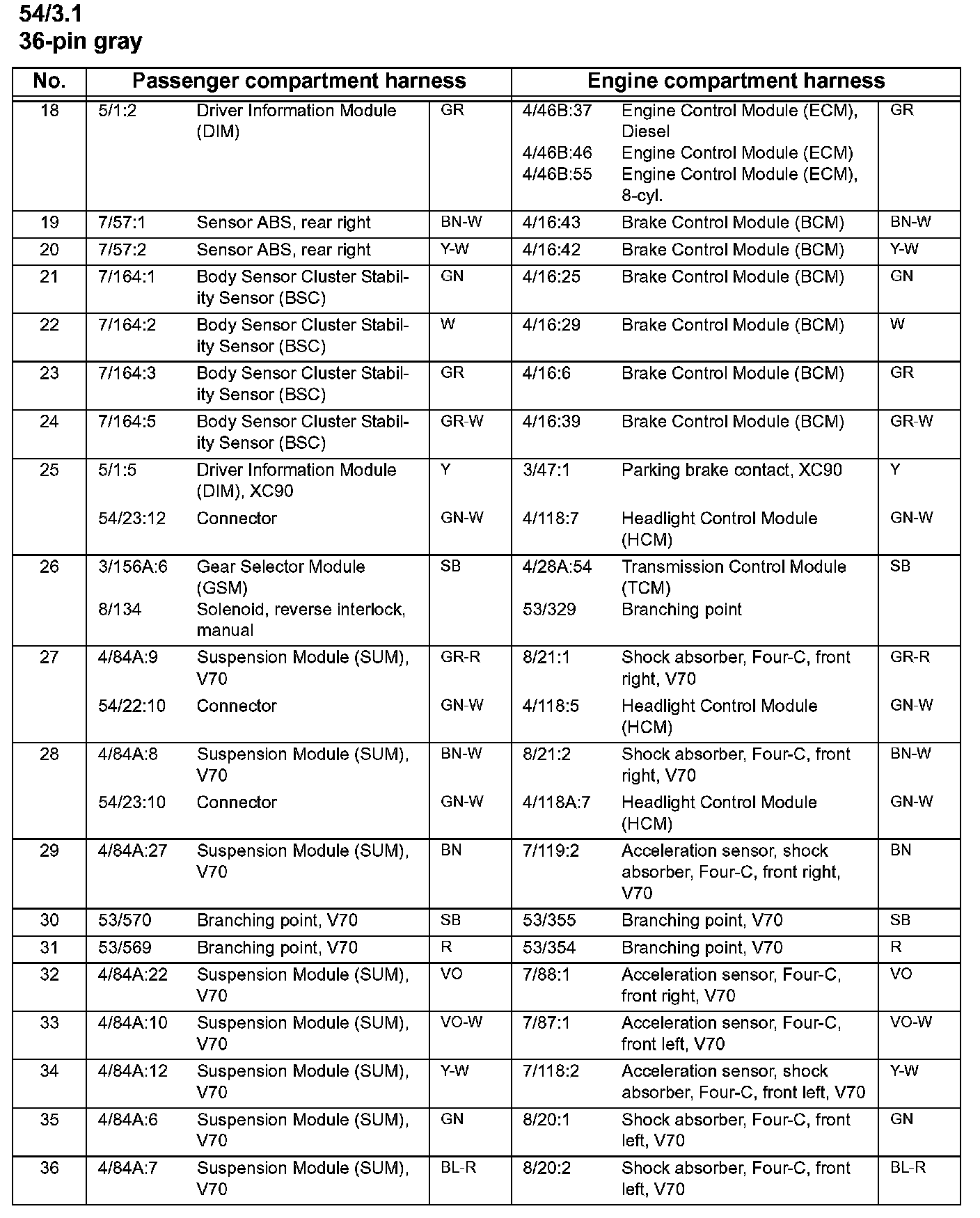

54/3.1

54/3.1:

54/3.1:
