Auxiliary Cabin Heater

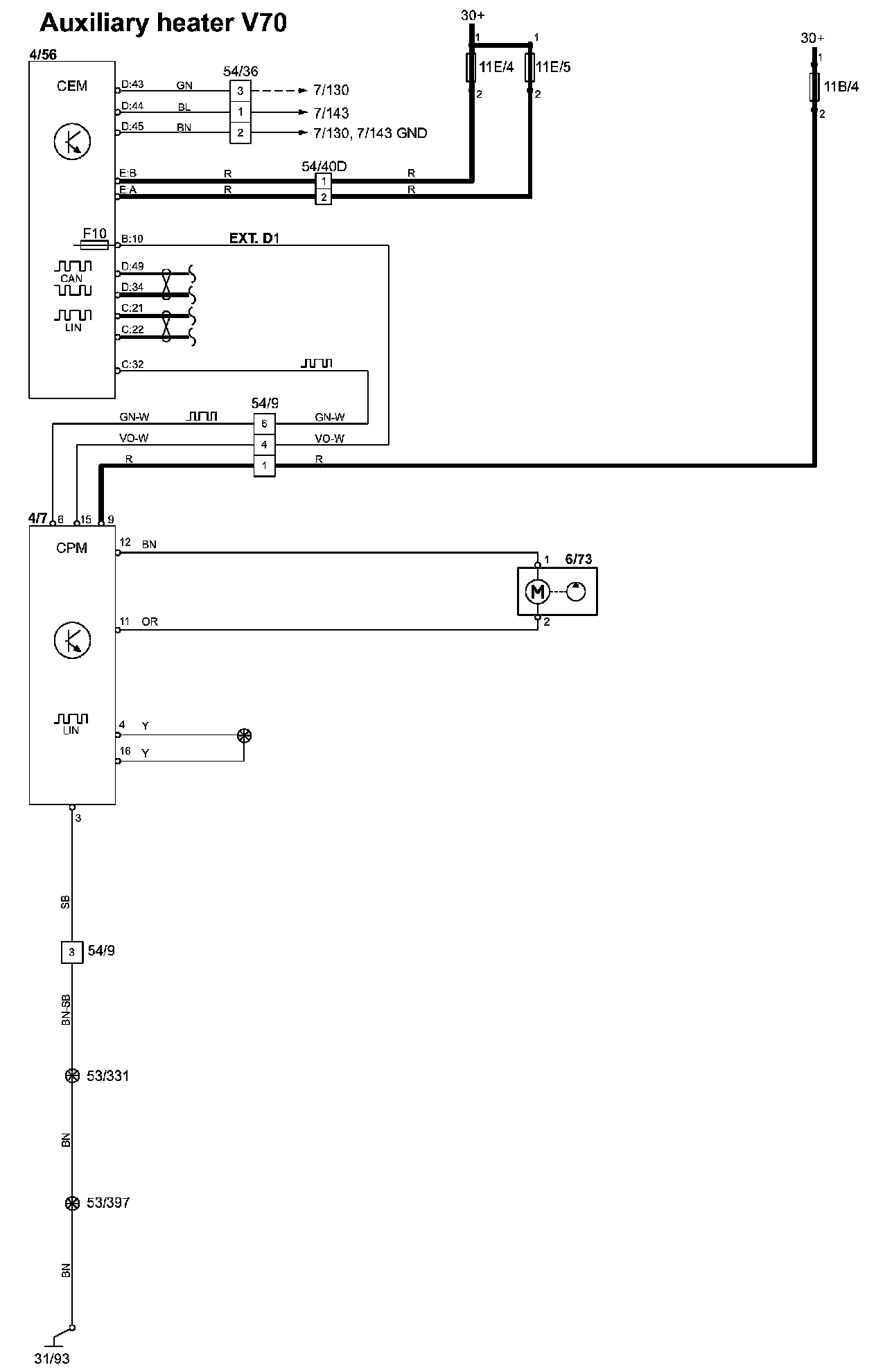

Auxiliary Heater V70

Auxiliary Heater:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
