Harness

53/304:

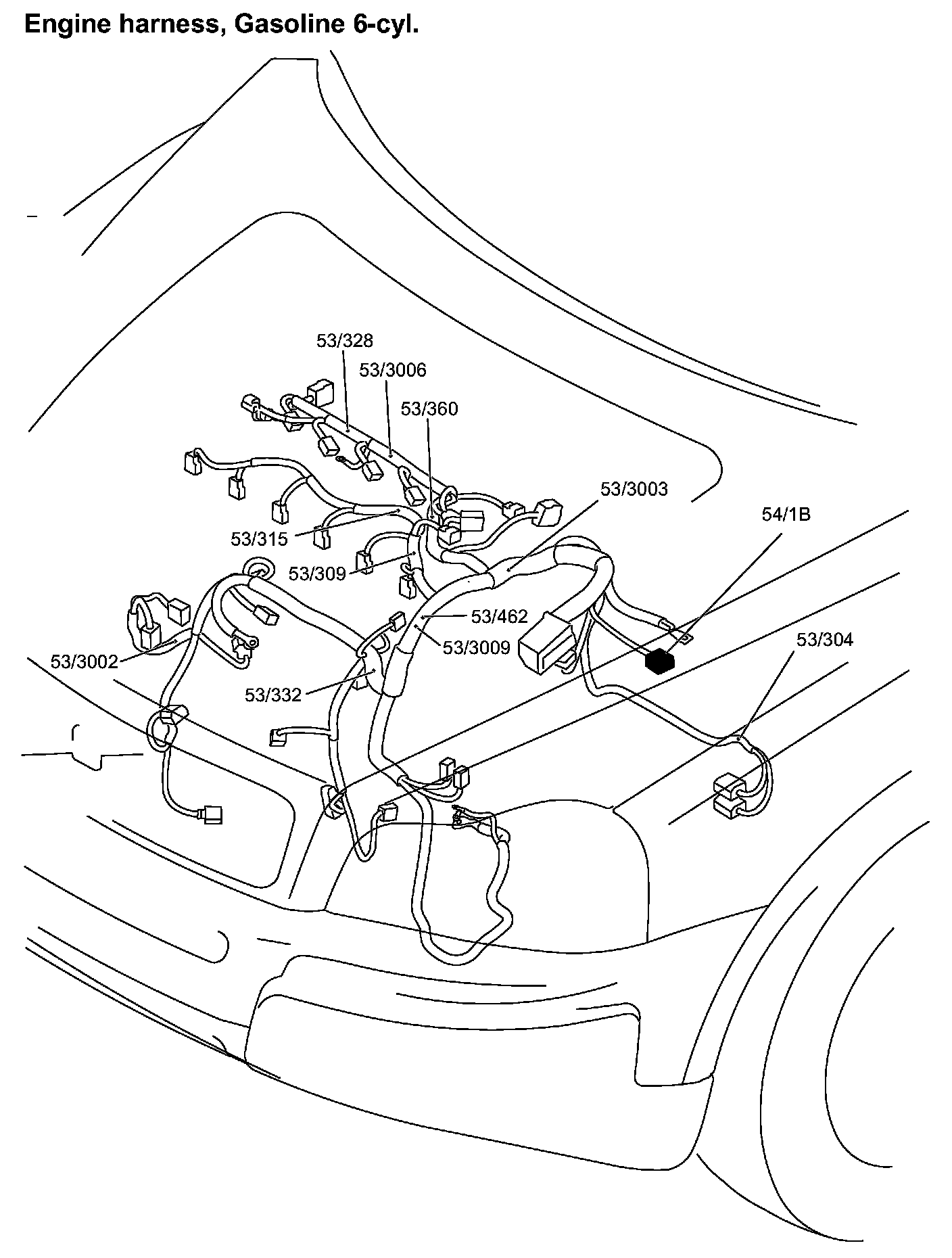

Engine Harness, Gasoline 6-Cyl.:

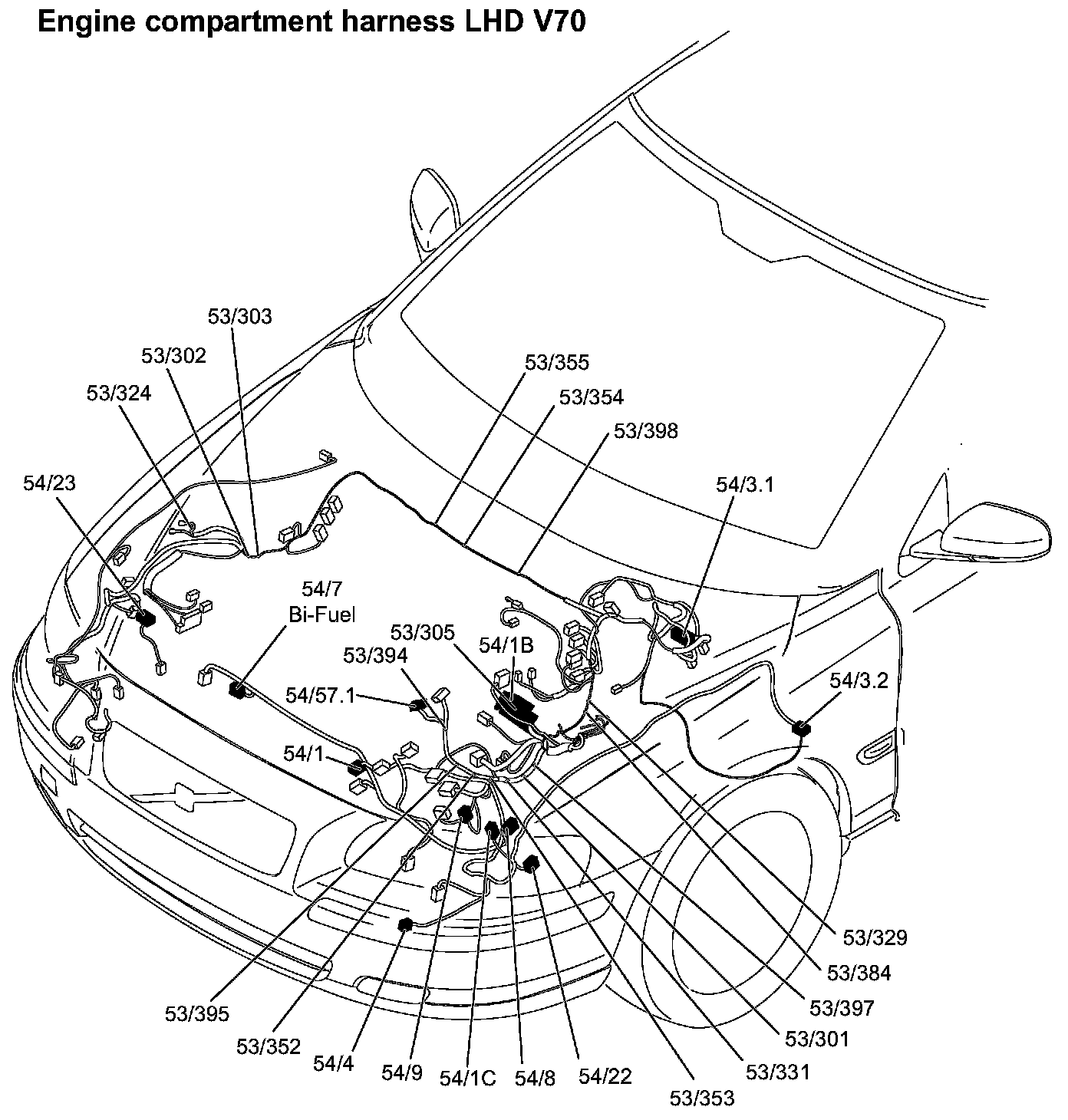

Engine Compartment Harness LHD V70:

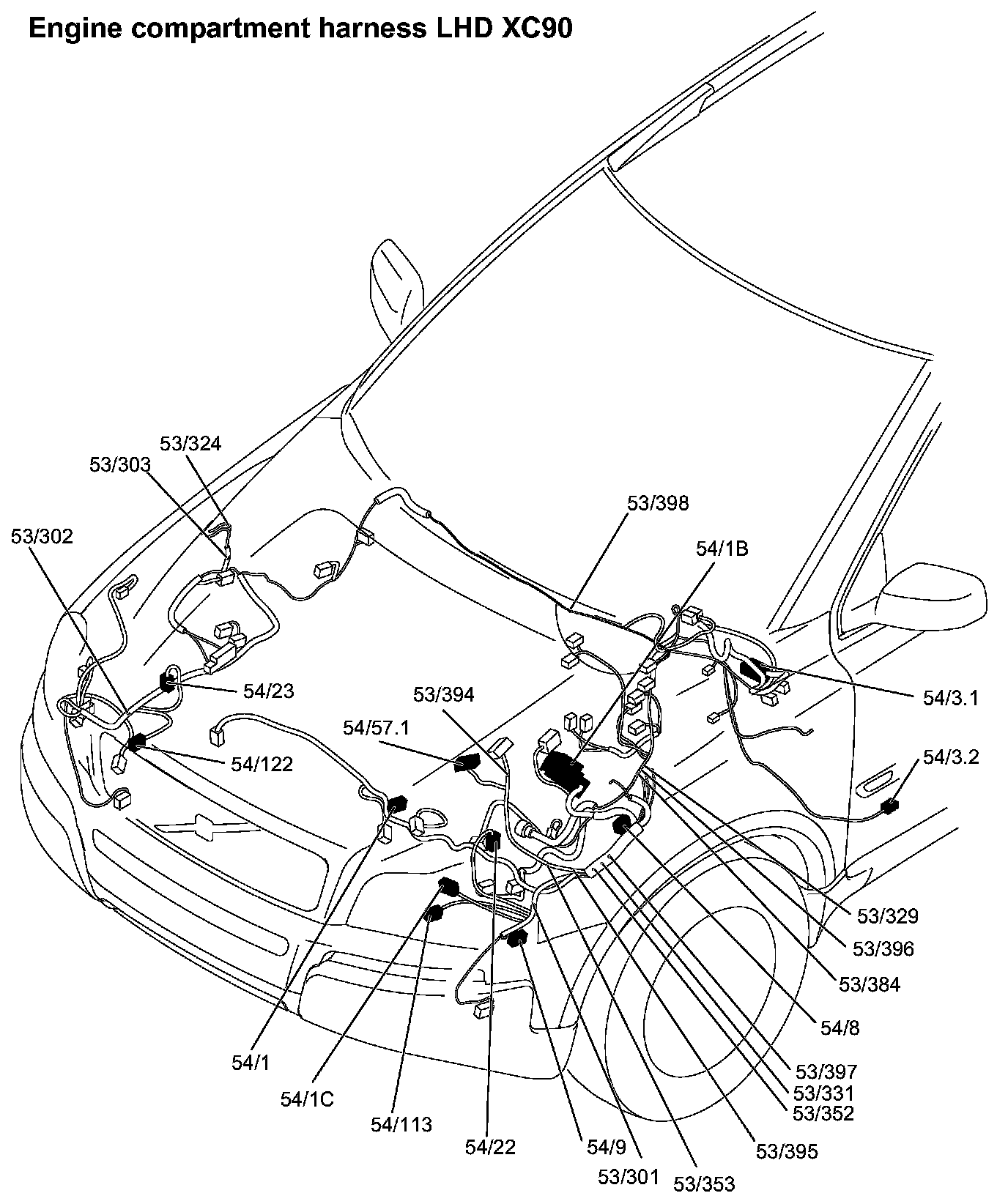

Engine Compartment Harness LHD XC90:

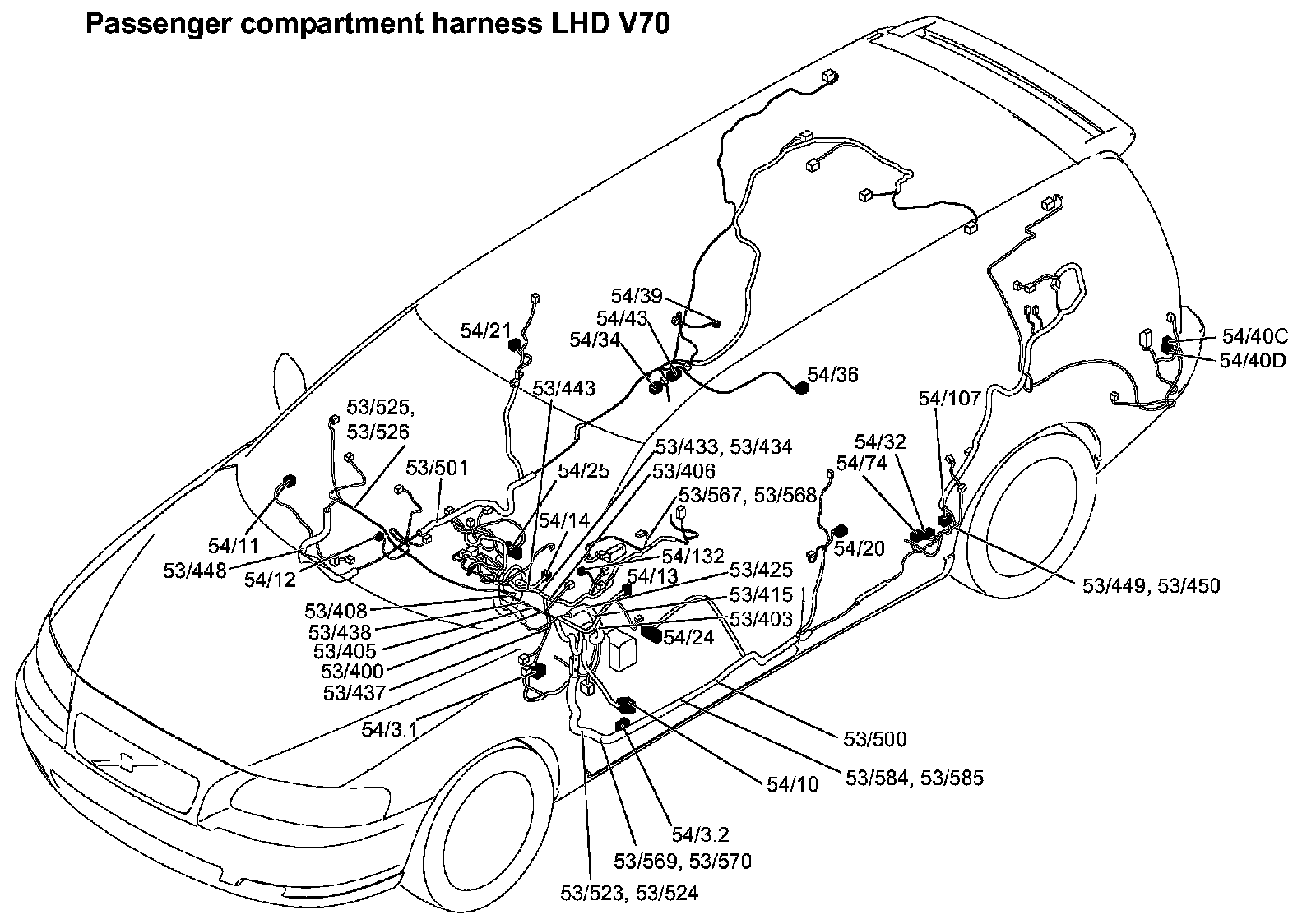

Passenger Compartment Harness LHD V70:

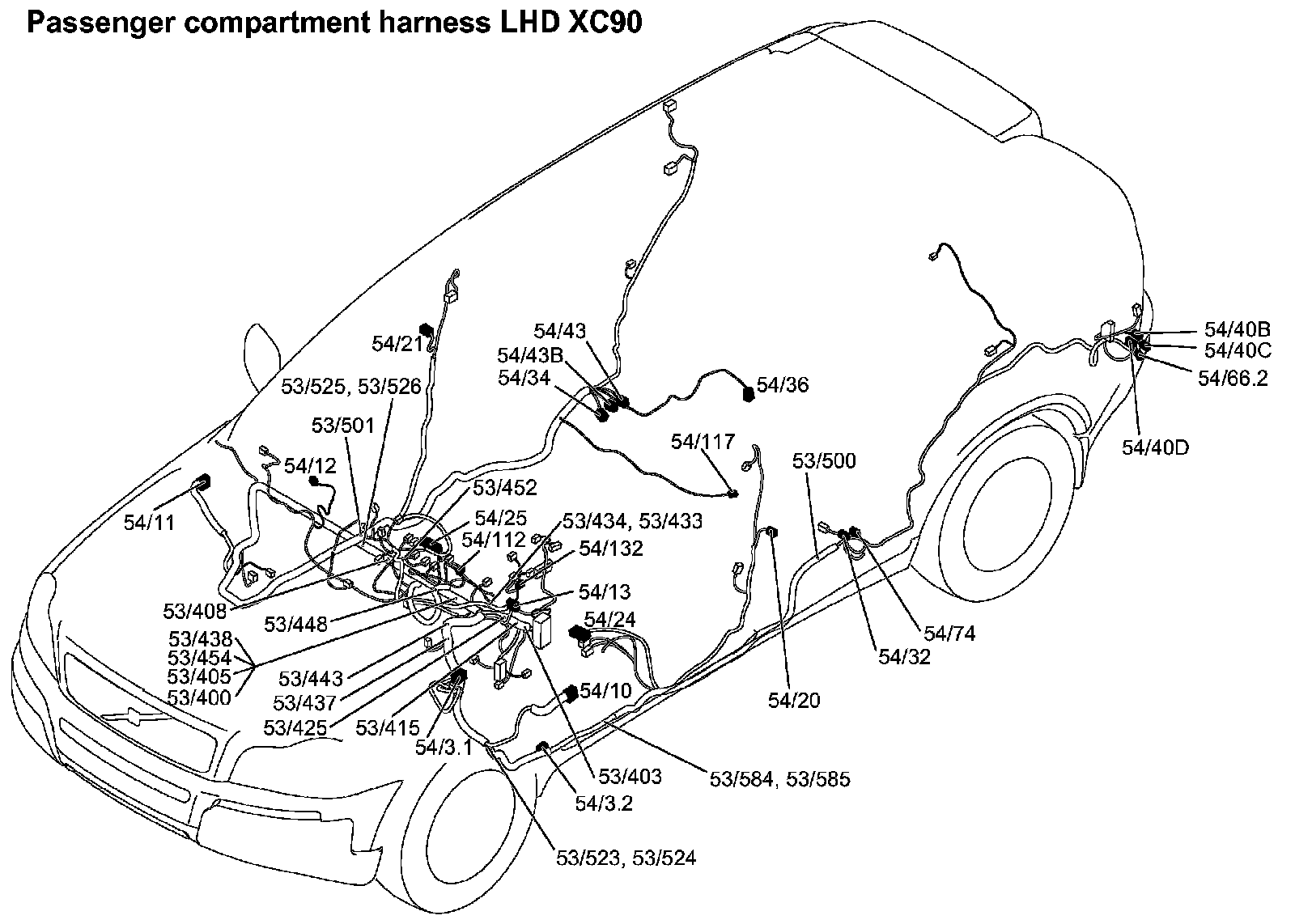

Passenger Compartment Harness LHD XC90:

Cargo Compartment Harness V70:

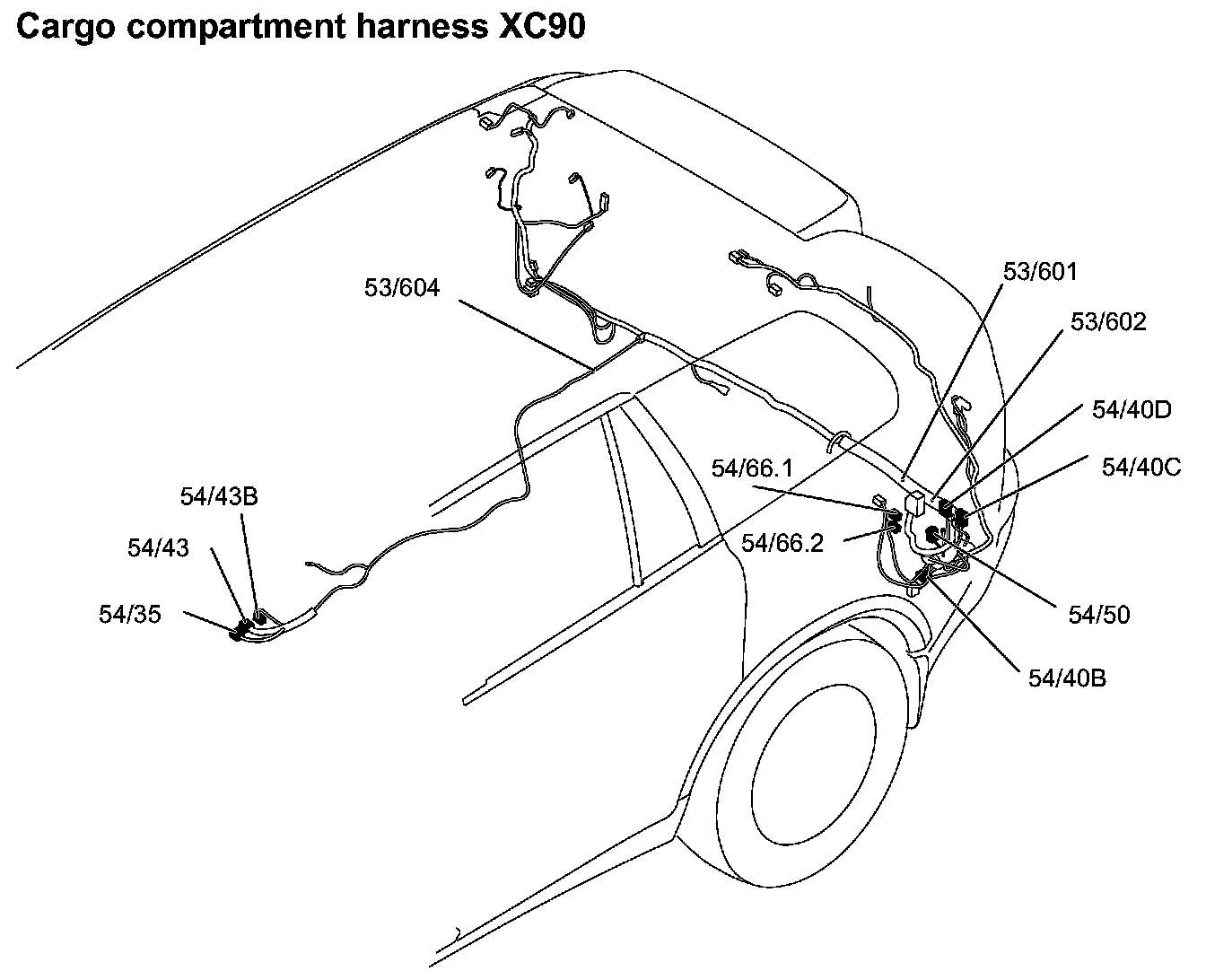

Cargo Compartment Harness XC90:

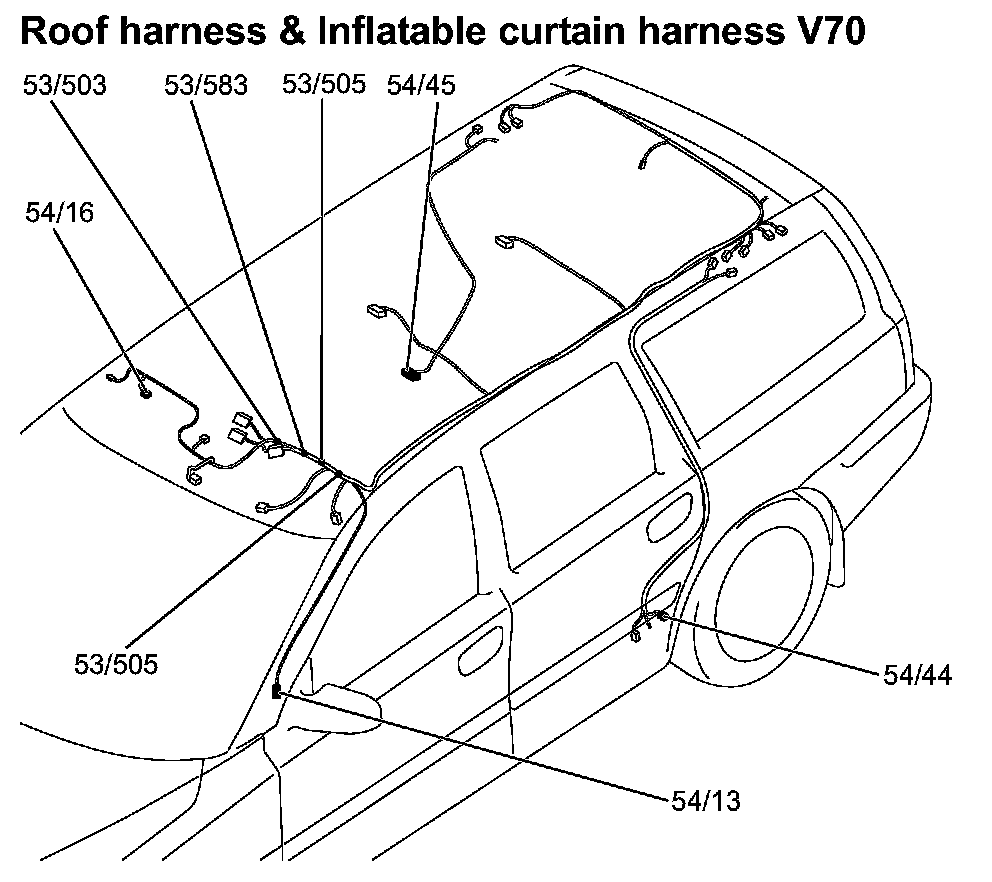

Roof Harness & Inflatable Curtain Harness V70:

Tailgate Harness V70:

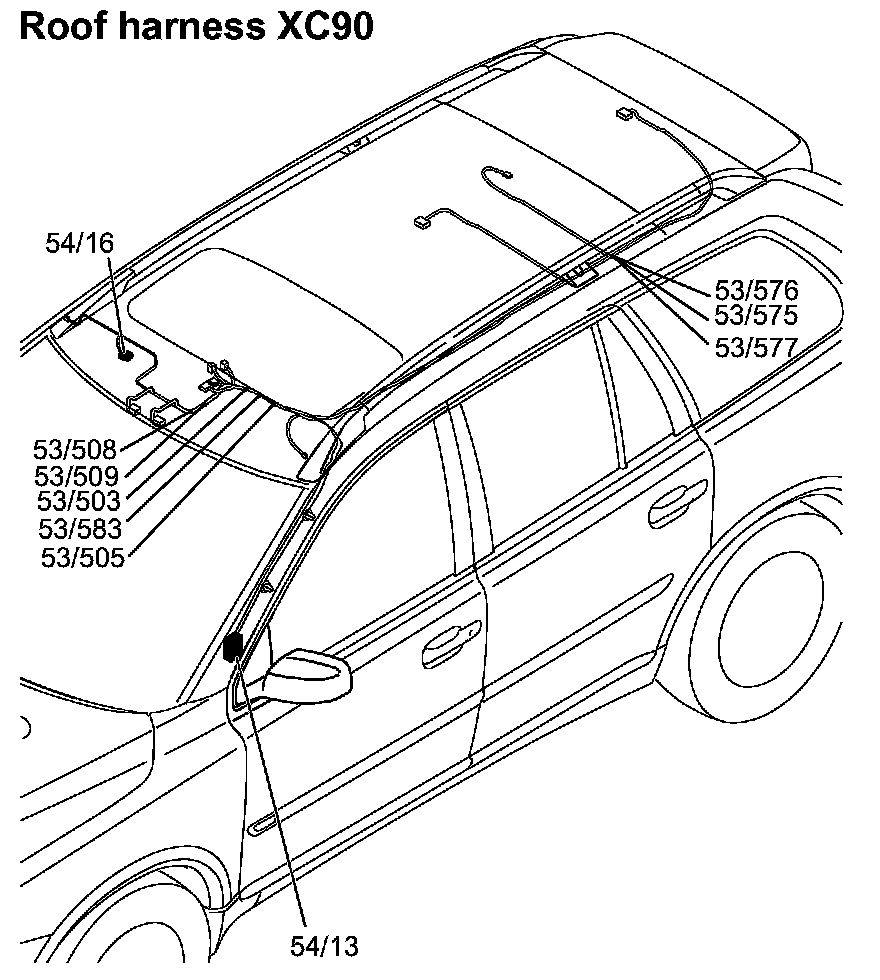

Roof Harness XC90:

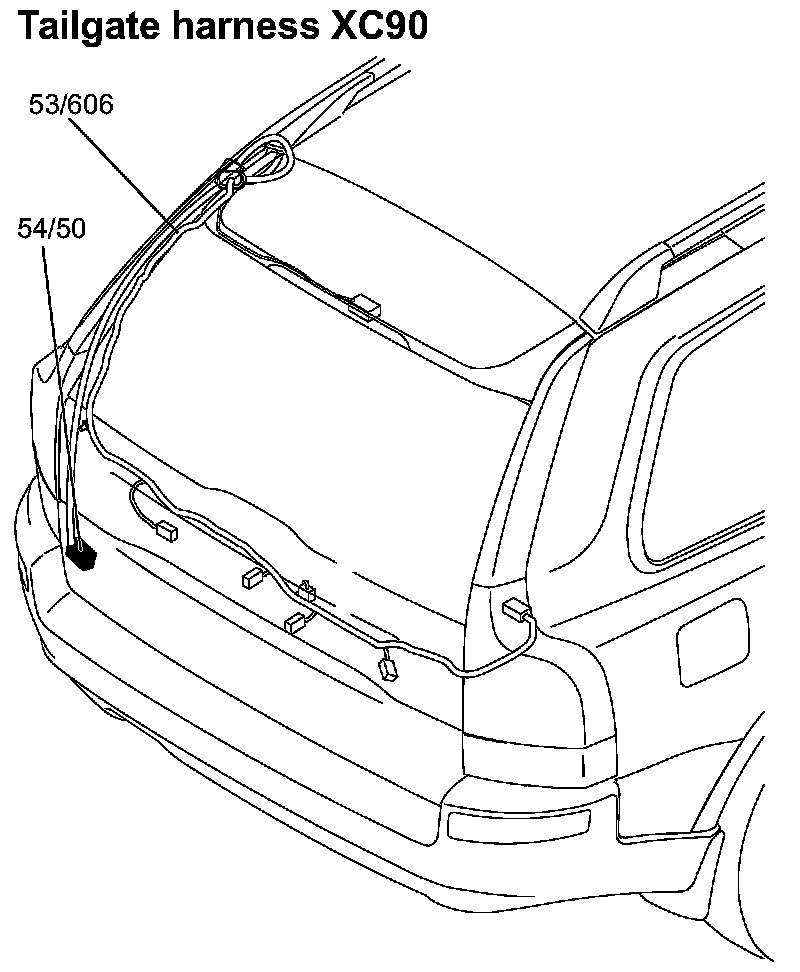

Tailgate Harness XC90:

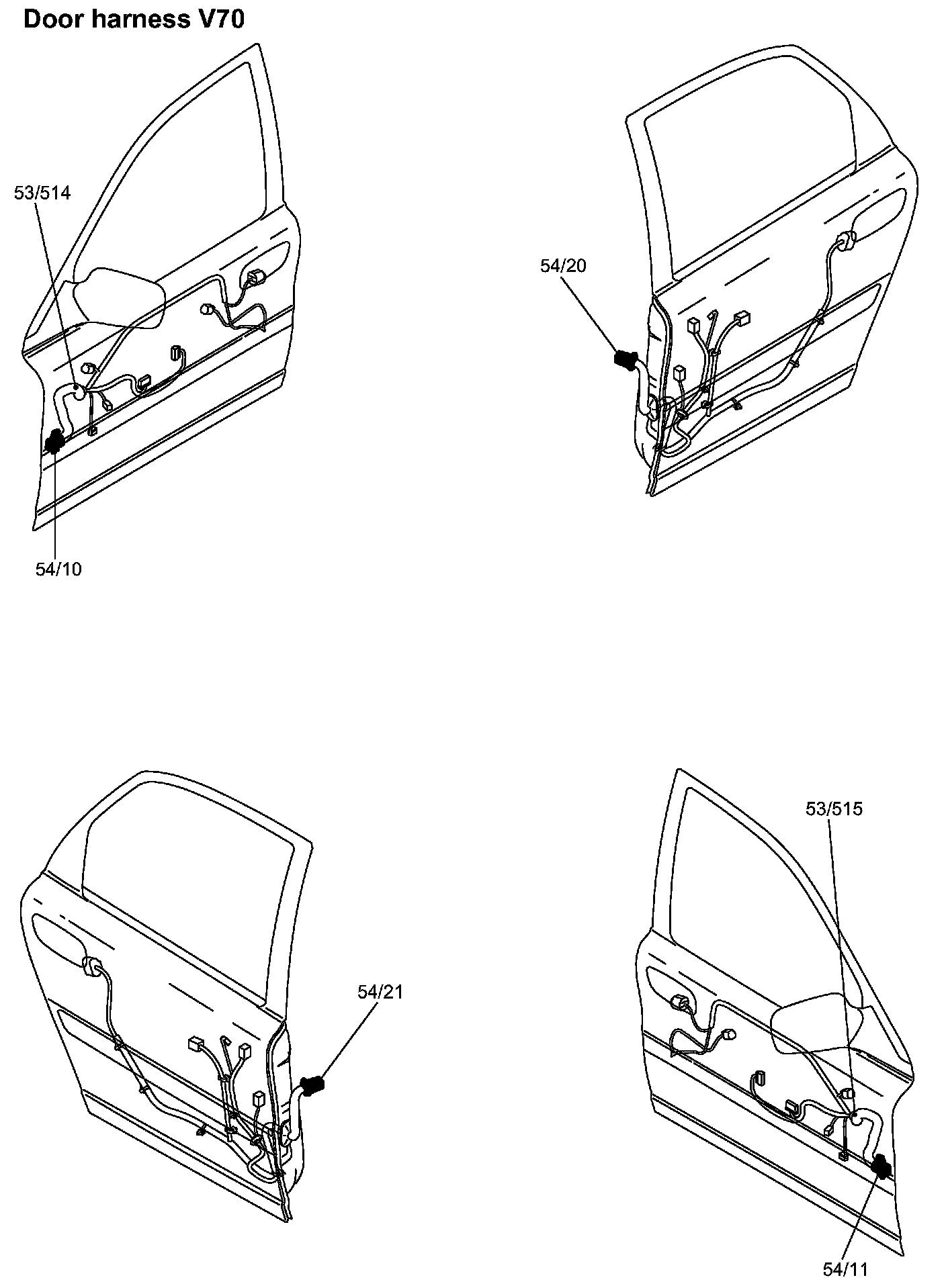

Door Harness V70:

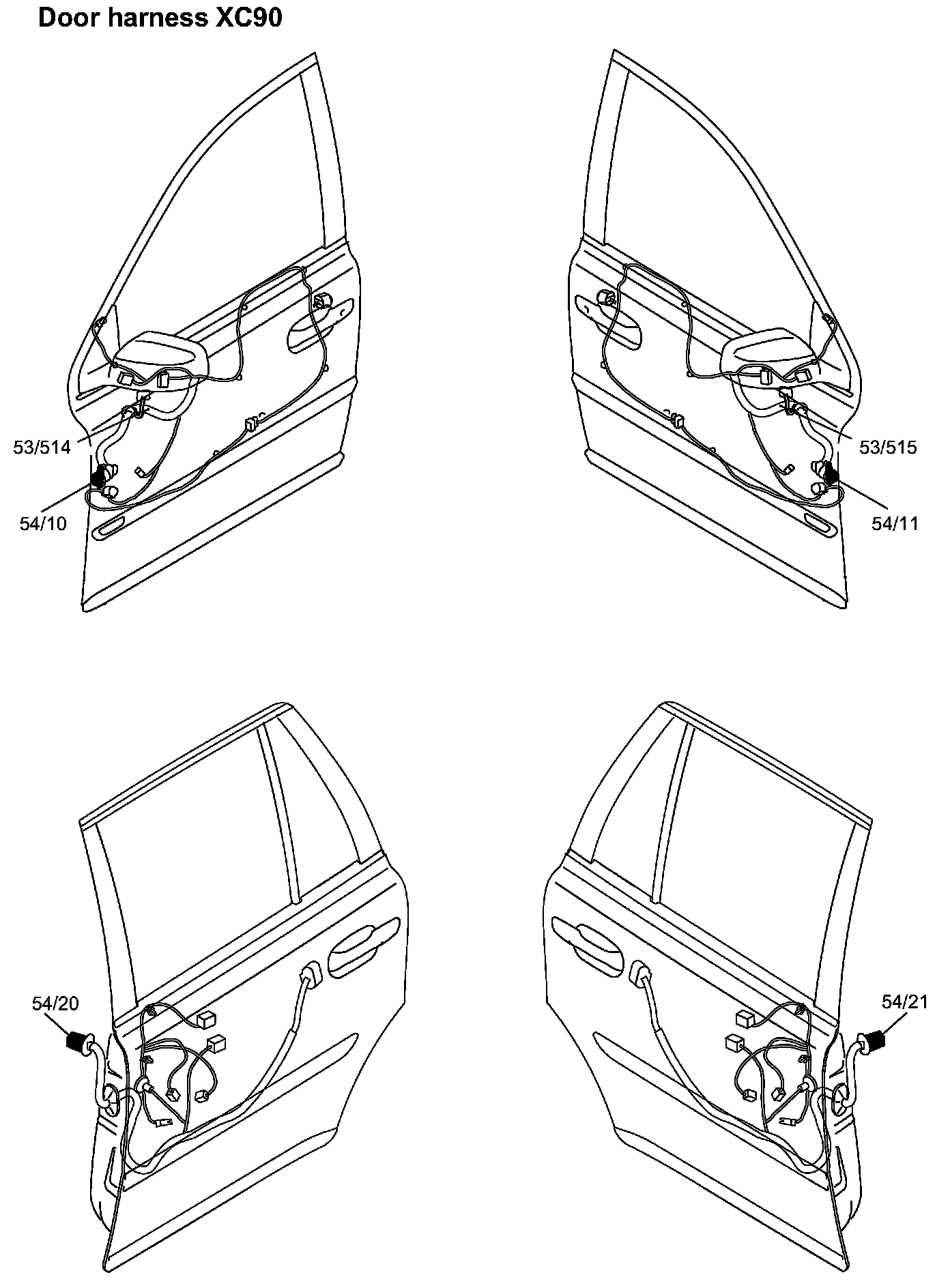

Door Harness XC90:

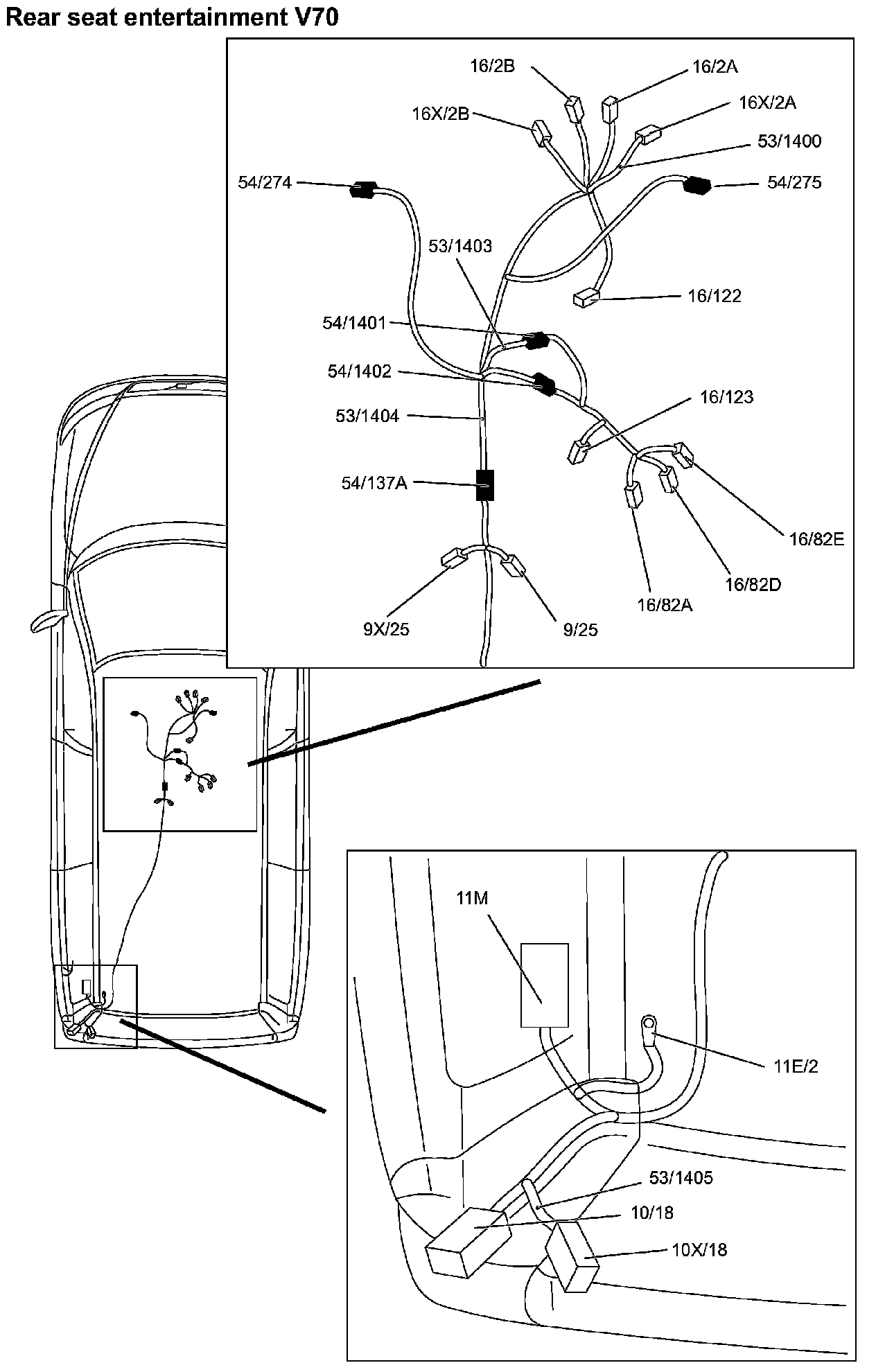

Rear Seat Entertainment V70:

Rear Seat Entertainment XC90:

Image Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
