Bushing, Push Rod, Replacing

Bushing, push rod, replacing

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Remove the brake lamp switch in accordance with: Stop lamp switch, replacing Service and Repair.

Removal

Removing the bushing

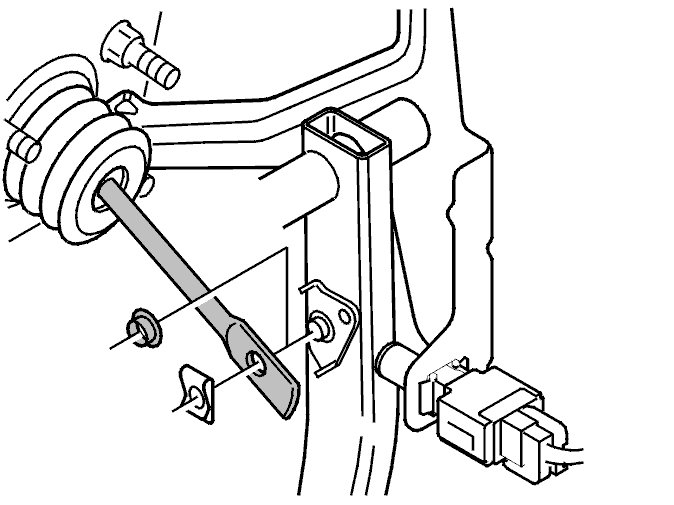

Remove the small bushing located on the brake pedal.

Installation

Installing the bushing




Lubricate the new bushing with grease, P/N 1161241-3.
Fit the bushing on the brake pedal.

Finishing

Fit the brake lamp switch in accordance with: Stop lamp switch, replacing Service and Repair.
