Radiator Cooling Fan: Service and Repair

Engine cooling fan (FC)

Operation number: 26361-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.





Drain the coolant. Refer to: Cooling system - draining, charging and bleeding Service and Repair

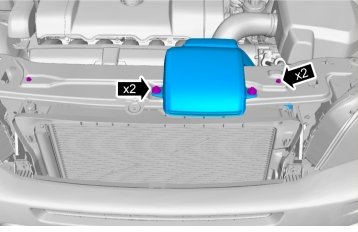

Note! Do not remove the screws completely.







Use suitable paper to absorb any escaping fluid.




Torque: M6, 10 Nm





Installation

To install, reverse the removal procedure
