Clutch Four Wheel Drive

Clutch four-wheel drive

Operation number: 46505-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.





Removal

Note! Removal steps in this procedure may contain installation details.

Remove the driveshaft. Refer to: Propeller Shaft, B6324S, TF-80SC AWD Propeller Shaft

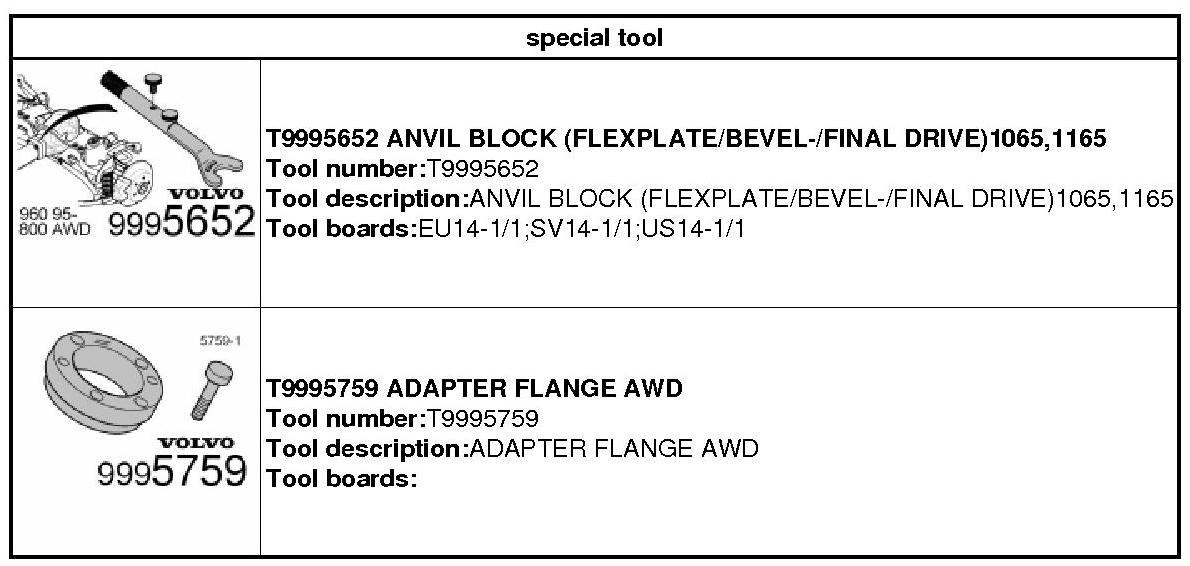

999 5652 Counterh. 999 5652 Counterh. , 999 5759 Adapter flange All-wheel drive 999 5759 Adapter Flange All-Wheel Drive

Note! Be prepared to collect escaping fluids.

Torque: M8, 24 Nm








Installation

To install, reverse the removal procedure

Fill and check the oil level in the four wheel drive clutch. Refer to: Final drive, replacing, B6324S, TF-80SC AWD Final Drive, Replacing
