Operation CHARM
: Car repair manuals for everyone.
Home
>>
Volvo
>>
2007
>>
XC90 AWD V8-4.4L VIN 85 B8444S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
54/1401 - Rear Seat Entertainment System (RSE) (Changes Introduced Up to October 2006 Inclusive)
54/1401 - Rear Seat Entertainment System (RSE) (Changes Introduced Up to October 2006 Inclusive)
54/1401:

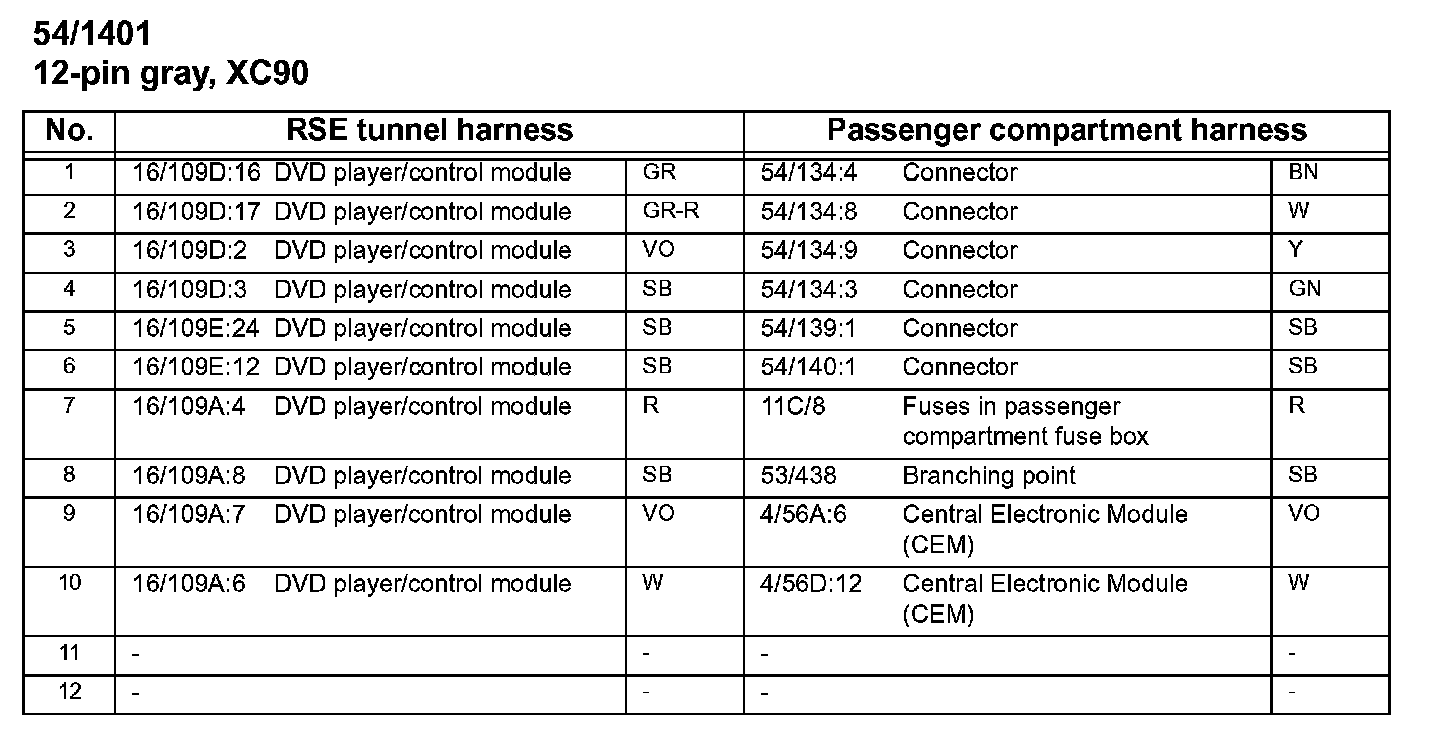

54/1401 Connector:
