Wiper/Washer Windshield

Wiper/Washer Windshield

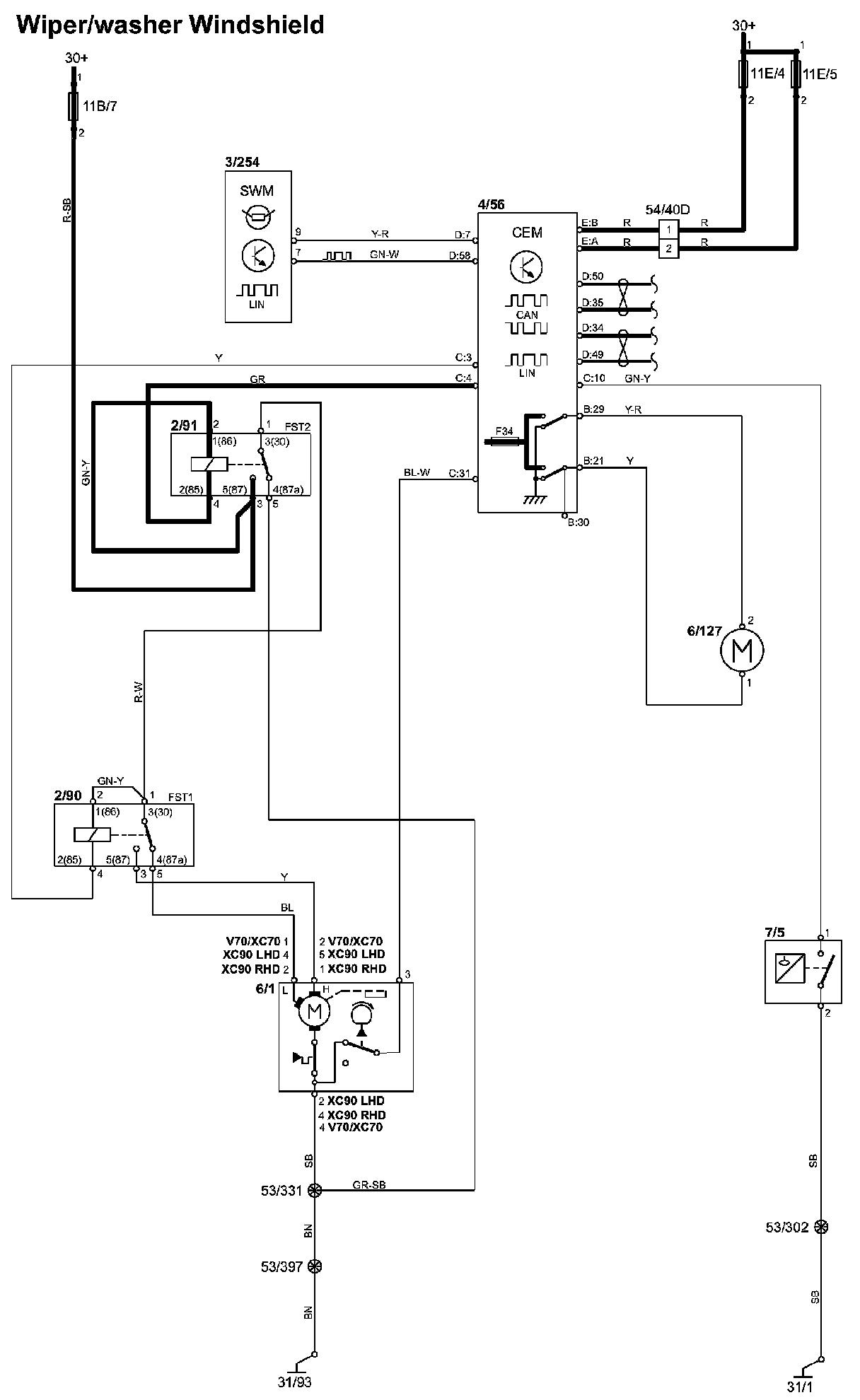

Wiper/Washer Windshield:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and the Other Abbreviations

List of Components By Component Number: List of Components By Component Number
