Home >> Volvo >> 2008 >> C30 T5 L5-2.5L Turbo VIN 67 B5254T7 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 64/333

64/333

64/333:

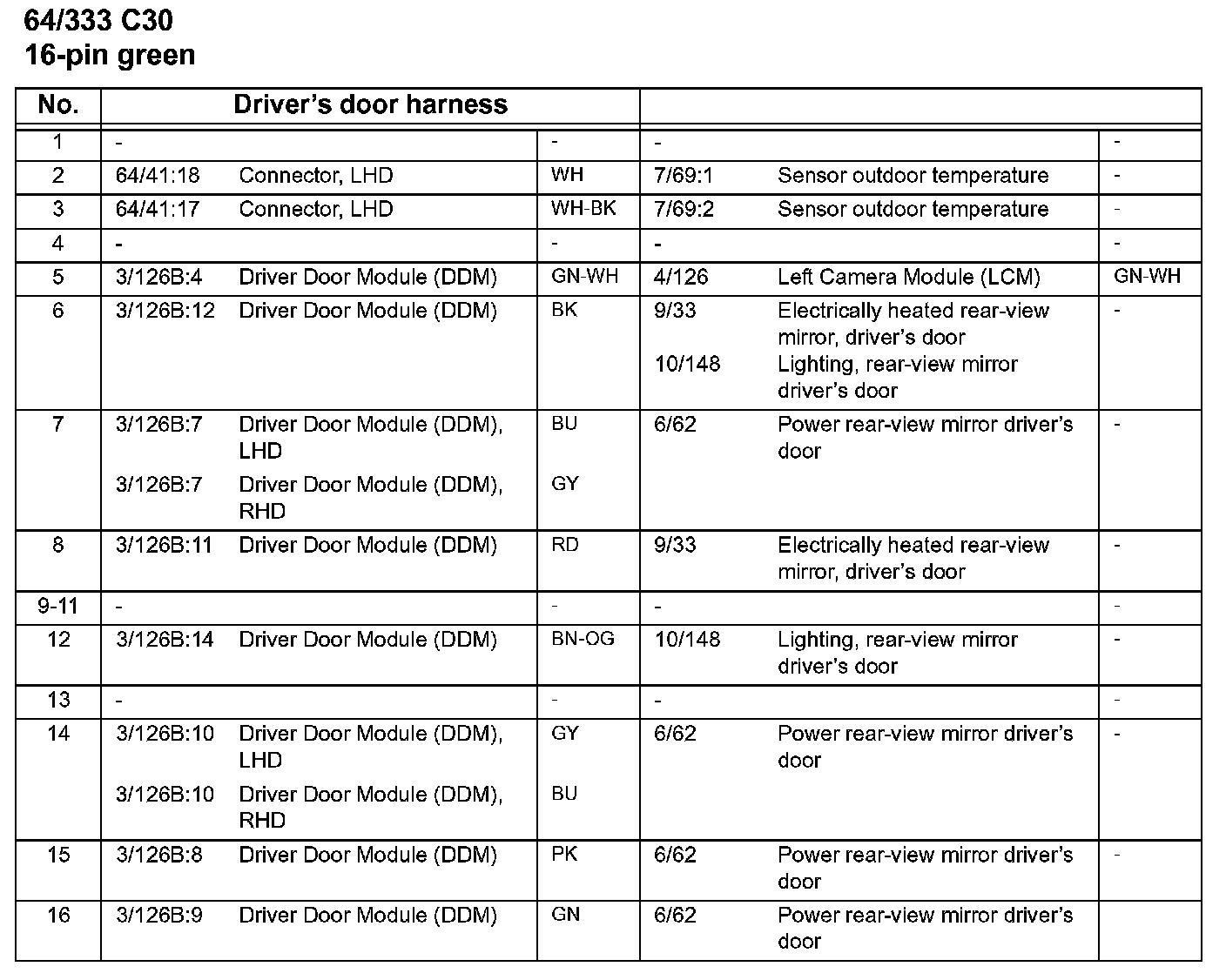

64/333 Connector:
