Fog Lamps

Fog lamps


























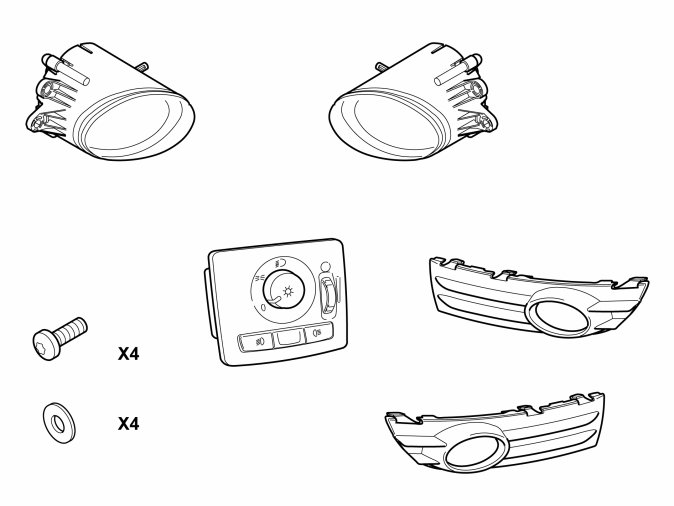

INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section.






Fog lamps

Installation




- Turn the ignition key to position 0.

Note! Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

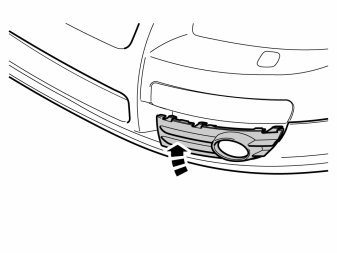

- Carefully remove the panel, starting at the right-hand side using tool P/N. 9512943. It is secured all round by six catches

Illustration A




- Detach the pre-routed connector for the fog lamp inside the removed panel.

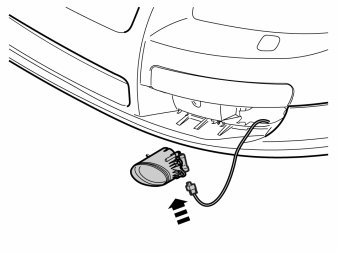

- Connect the connector to the fog lamp.

Illustration B




- Install the fog lamp. Ensure that the two pins are inserted into the corresponding cut outs in the bumper cover.

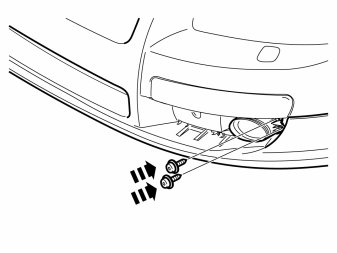

- Use the screws and washers from the kit and tighten the fog lamp securely.
- Repeat previous steps for the other side.

Installing the keypad




- Remove the keypad for the lighting by carefully prying it from the dashboard using a weatherstrip tool. It is secured with two catches on each side.

Note! Do not damage the dashboard.




- Unplug the connector from the keypad. Remove the connector. It will not be used again.
- Plug in the connector of the new keypad from the kit.
- Press the keypad into place in the dashboard.




- Download the software for the accessory's function following the service information in VIDA.

Finishing work

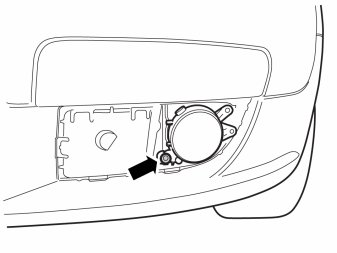

- Set the height of the fog lamps on both sides using the adjustment screw.




- Fit the new panels from the kit on both sides.
