INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section.

Alcohol lock

- Turn the ignition switch to position 0.

Note! Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

- Open the glovebox.
- Carefully pry off the panel inside the centre console. Use a plastic weatherstrip tool. The panel is secured by two clips on each of the short sides.
- Pull the panel off downwards.

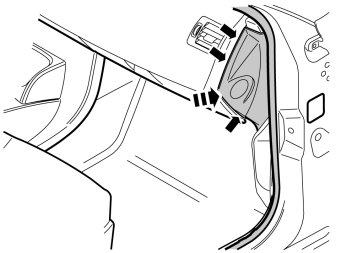

- Remove the panel on the right end of the dashboard. Carefully pry it loose all around with a weatherstrip tool, until the three legs release.

Note! Do not damage the dashboard.

- Detach the clip holding the nozzle from the glove compartment.

- Remove the glove compartment's rubber mat.
- Remove the five screws in the opening to the glovebox.
- Pull the glove compartment straight back to loosen the two hidden clips in the upper edge.
- Remove the outer section of the glovebox.

- Unplug the connectors on the top.

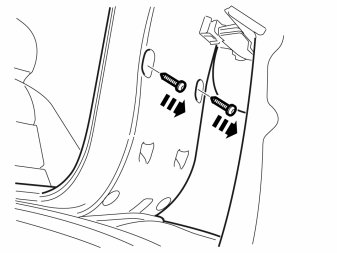

- Remove the two remaining screws at the rear of the centre console.
- Put away the screws and get new ones from the kit.

A
- Take the holder from the kit and insert the green connector in the lower hole and pull through the whole wire.

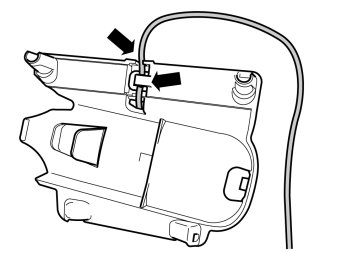

- Hook on the wire around the lip in the upper hole and place it in the slot at the top.

- Take the two longer screws from the kit.

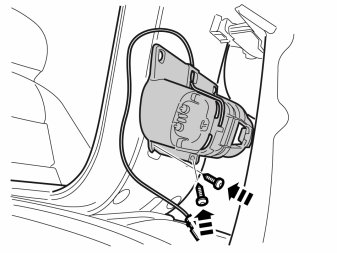

- Install the holder with the two screws in the upper edge and tighten.

Note! The lower holes are angled 45°.

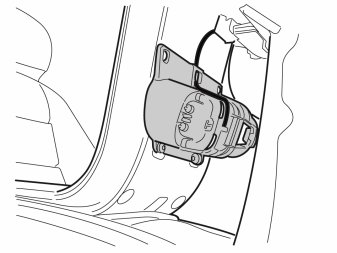

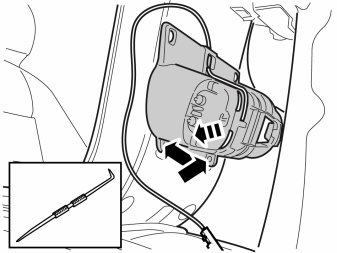

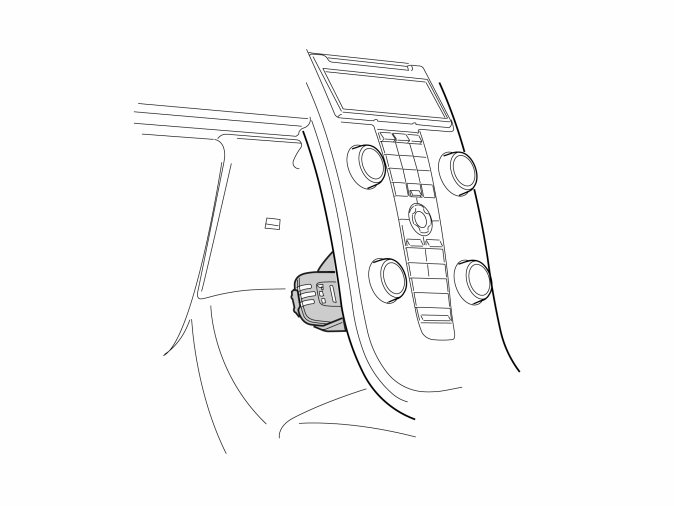

- Press the holder's middle part against the centre console's rear side. Make a distinct mark through the middle of the hole in the holder with a scribe to get the self-tapping screw to centre better.
- Repeat the operation on the other side.

- Take the self-tapping screws from the kit and tighten them.

- File a slot in the panel for the holder's wire as shown.

- Pull up the wire from the holder to the green connector for the display.

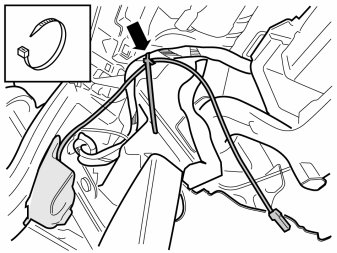

- Clamp the wire to the connector's cable harness so that the wire reaches down to the holder and so that it fits in the slot in the panel.

- Get the wire coming from the holder and attach it on the right side of the centre console. The wire shall be attached to the existing cable harness with a cable tie from the kit.

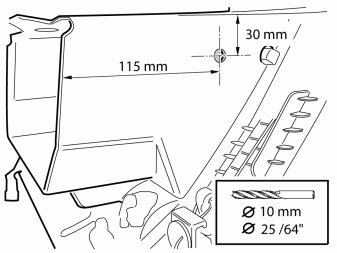

- Drill a - 10 mm (25/64") hole on the left side of the glove compartment's outer part.
- Remove any swarf.

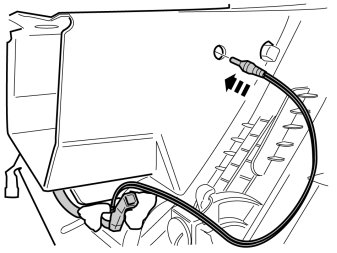

- Get the adapter wire from the kit and plug in one connector to the connection for the glove compartment lighting.
- Route the wires at the lower edge to the other side.

- Fasten the wires and the little green connector with pieces of butyl tape.

- Insert the little green connector and the whole wire in the glove compartment's outer part.

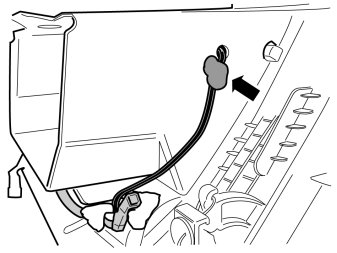

- Fasten the wire at the hole with a piece of butyl tape.

- Get the outer glove compartment and plug in the connector from the glove compartment lighting to the corresponding in the new adapter wire.
- Plug in remaining connector in the adapter wire for the glove compartment lighting.

- Plug in the green connector from the holder to corresponding on the adapter wire for the glove compartment lighting.
- Fasten the grey connector on the glove compartment's outer part.

- Install and tighten down the glove compartment's outer part.
- Roll up the wire in the glove compartment and fasten it with the velcro strap.

A

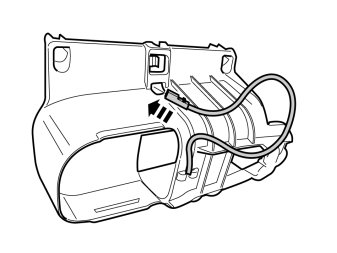

- Fit the wire from the holder in the slot on the panel and press to fasten.

- Download the software for the accessory's function following the service information in VIDA.
