C70 T5 L5-2.5L Turbo VIN 67 B5254T7
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
64/10B
64/10B

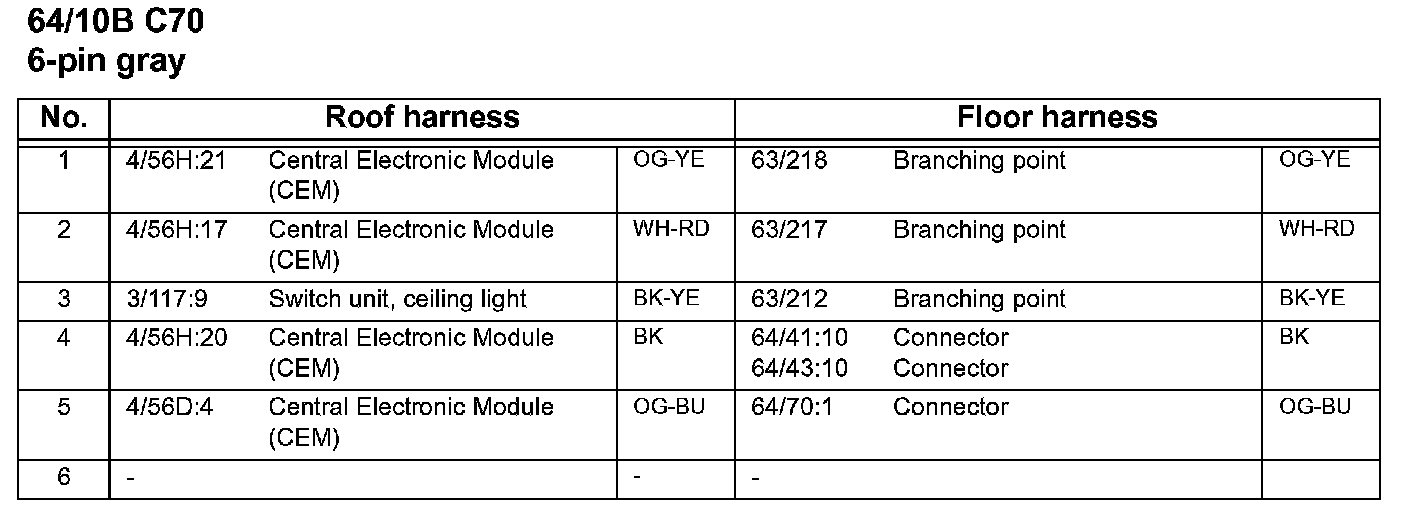

64/10B:

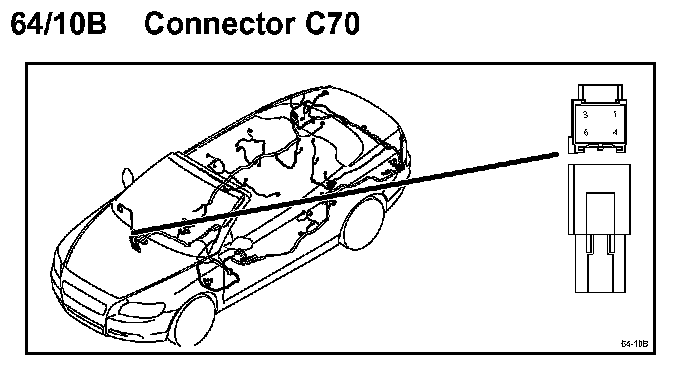

64/10B Connector:
