Home >> Volvo >> 2008 >> C70 T5 L5-2.5L Turbo VIN 67 B5254T7 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 64/660

64/660

64/660:

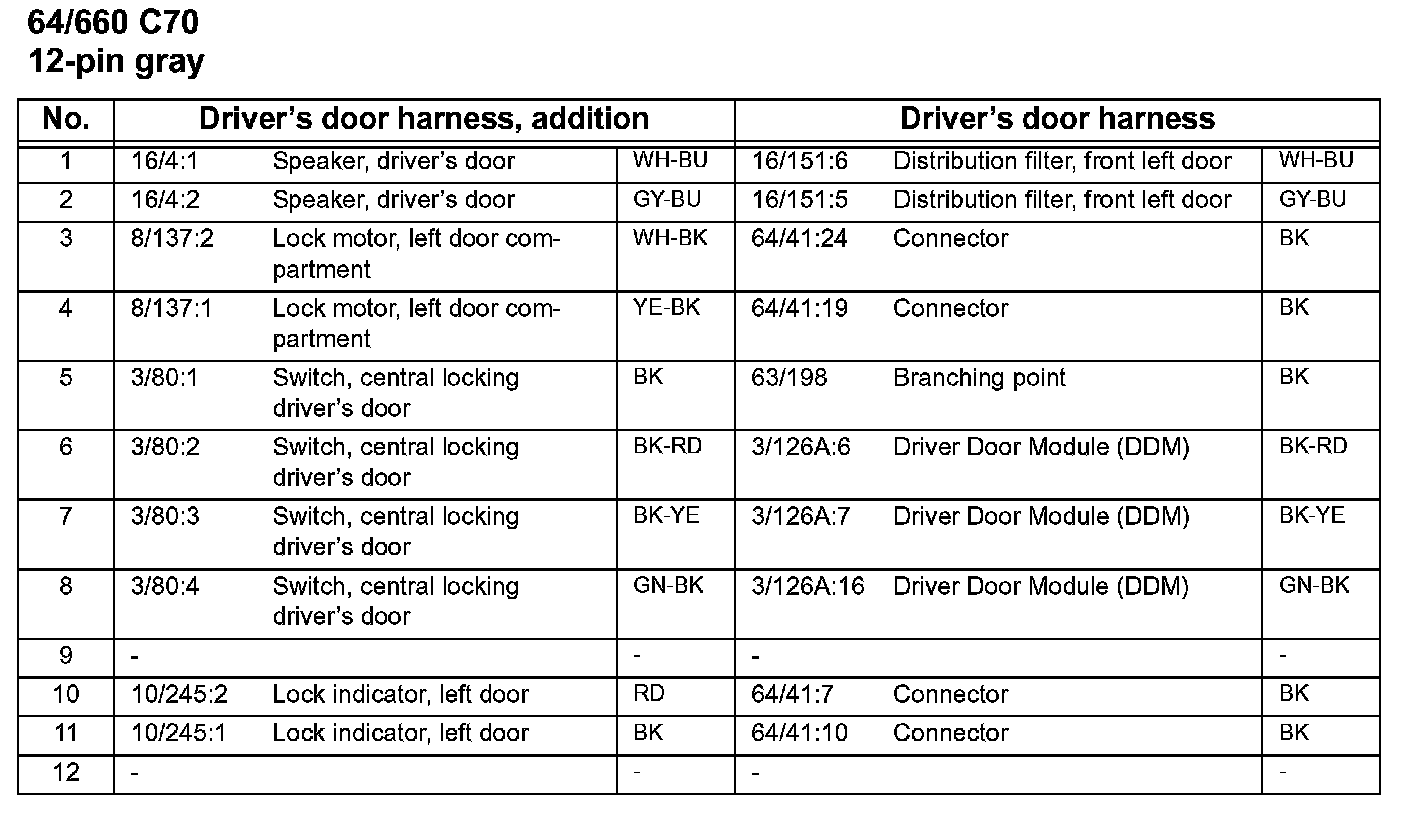

64/660 Connector:
