Air Bag Systems

Supplemental Restraint System (SRS)

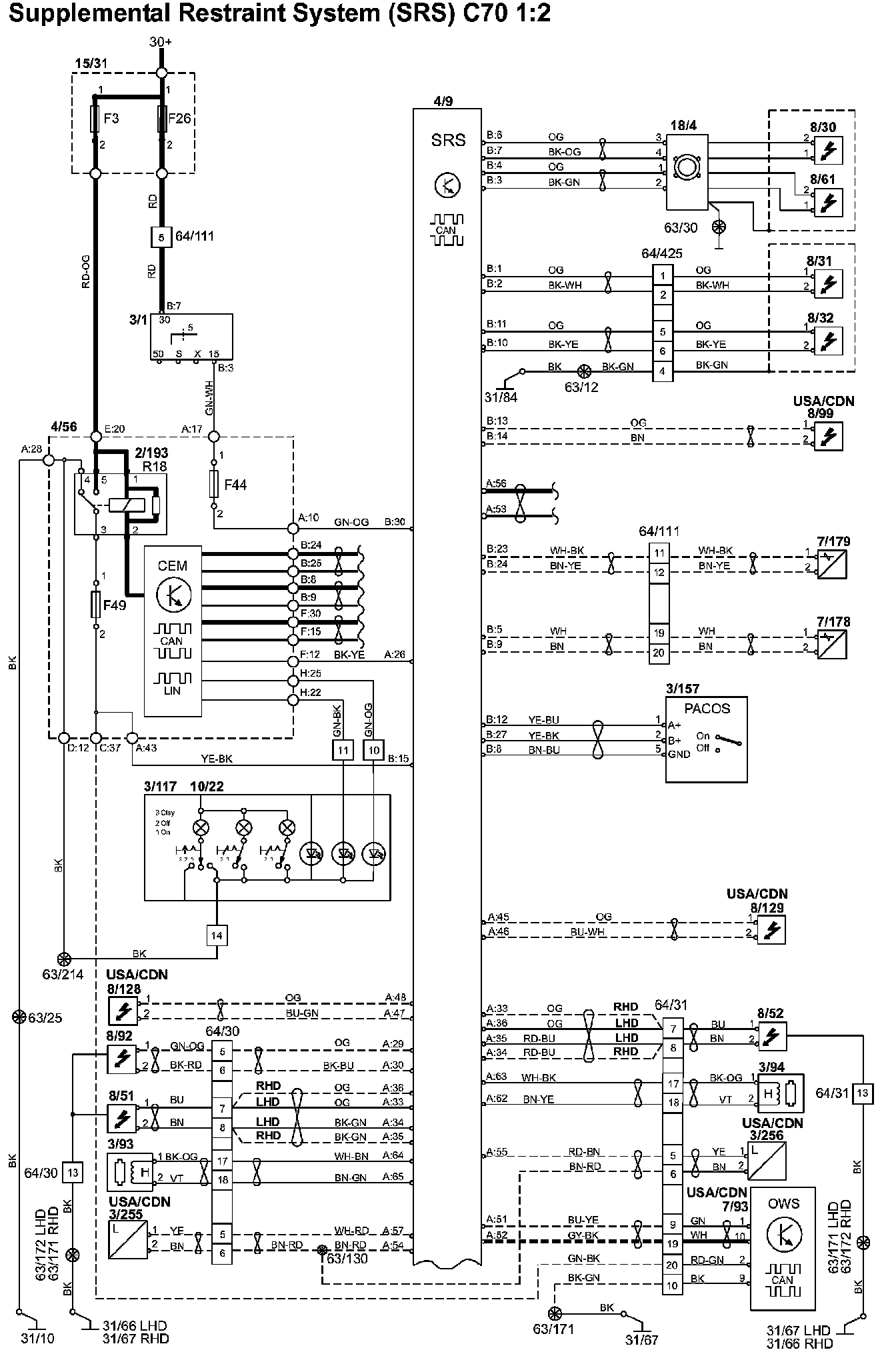

Supplemental Restraint System (SRS) 1:2:

Supplemental Restraint System (SRS) 2:2:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
