Engine Pad Right, Replacing
Engine pad right, replacingSpecial tools: 999 7103, 999 5185
Note: The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.
Preparatory work

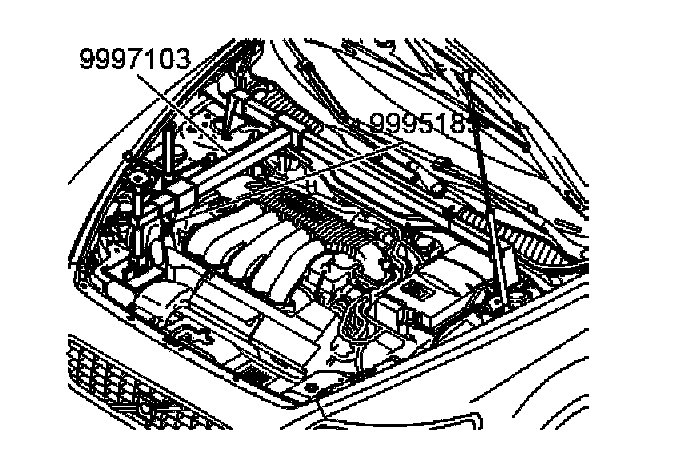

Install lifting beam: 999 7103 together with hook: 999 5185. Tension the tool. Lift the expansion tank and place on the engine.
Note: Ensure that no coolant escapes.

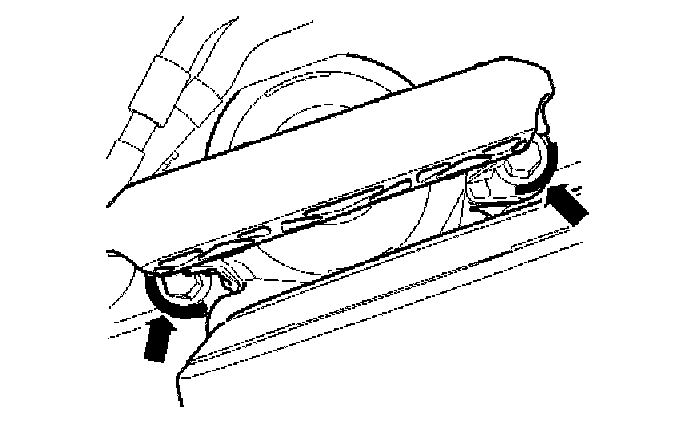

Marking the position of the engine pad
Mark the position of the engine pad on the frame member. Use a marker pen.
Removal
Removing the engine cover

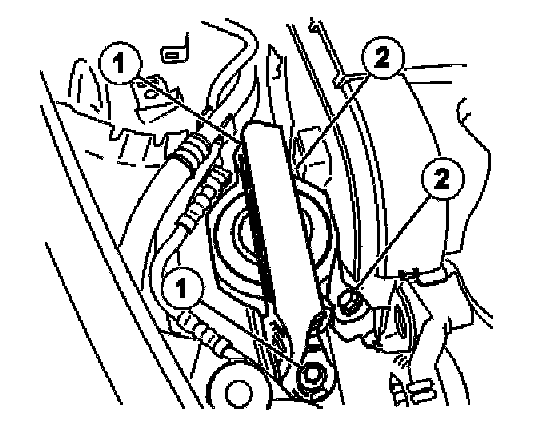

Remove:
- the 2 screws (1)
- the limiter
- the 2 screws (2)
- the engine pad.
Installation
Installing the engine pad
Note: For tightening torques, see Specifications
Install:
- the engine pad according to the markings
- the 2 x M 12 screws (2)
- the limiter
- the 2 x M 12 screws (1).
Finishing
Remove lifting beam: 999 7103 and hook: 999 5185. Install the expansion tank.
