Changes Introduced Up to and Including April 2007

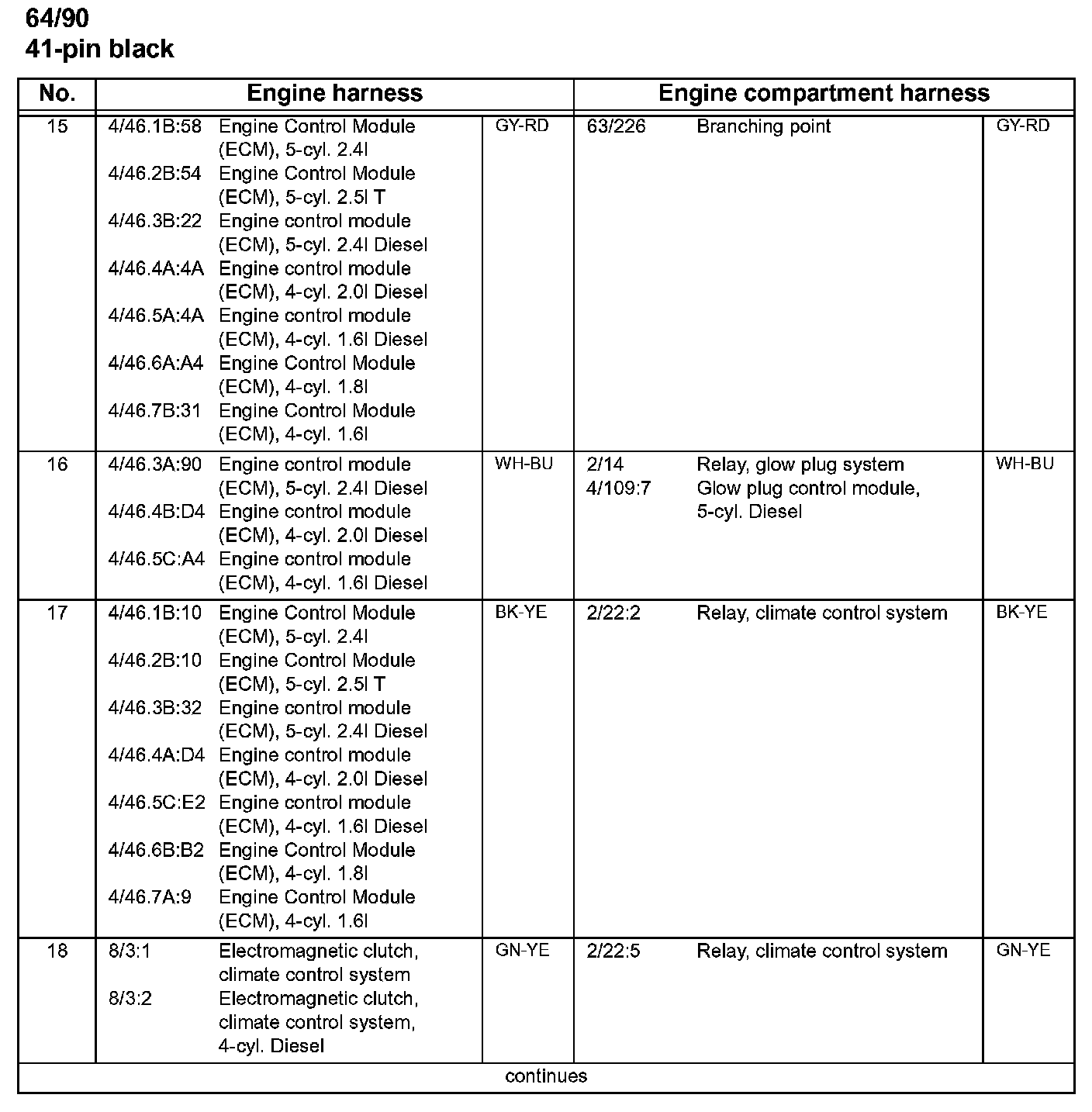

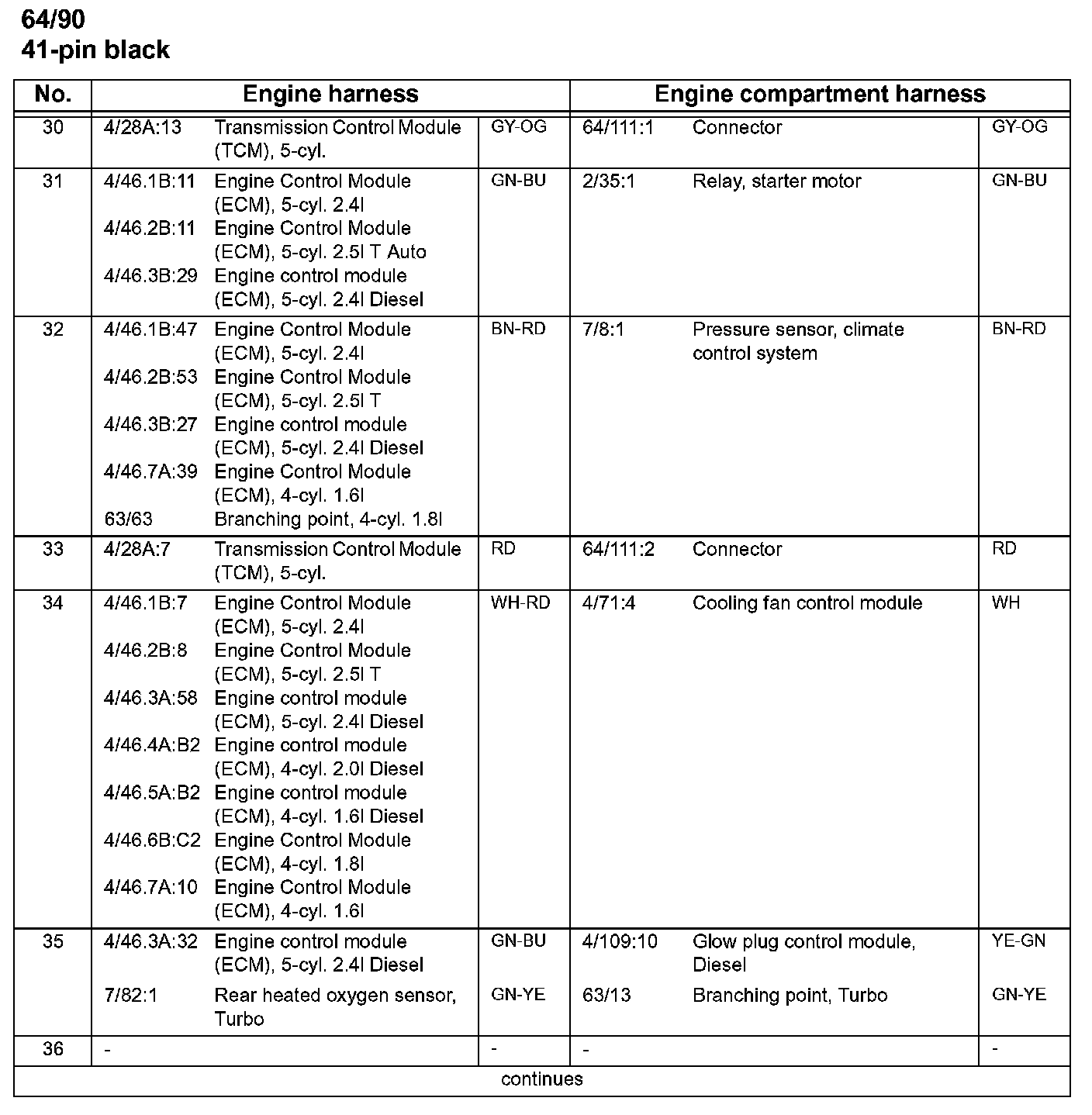

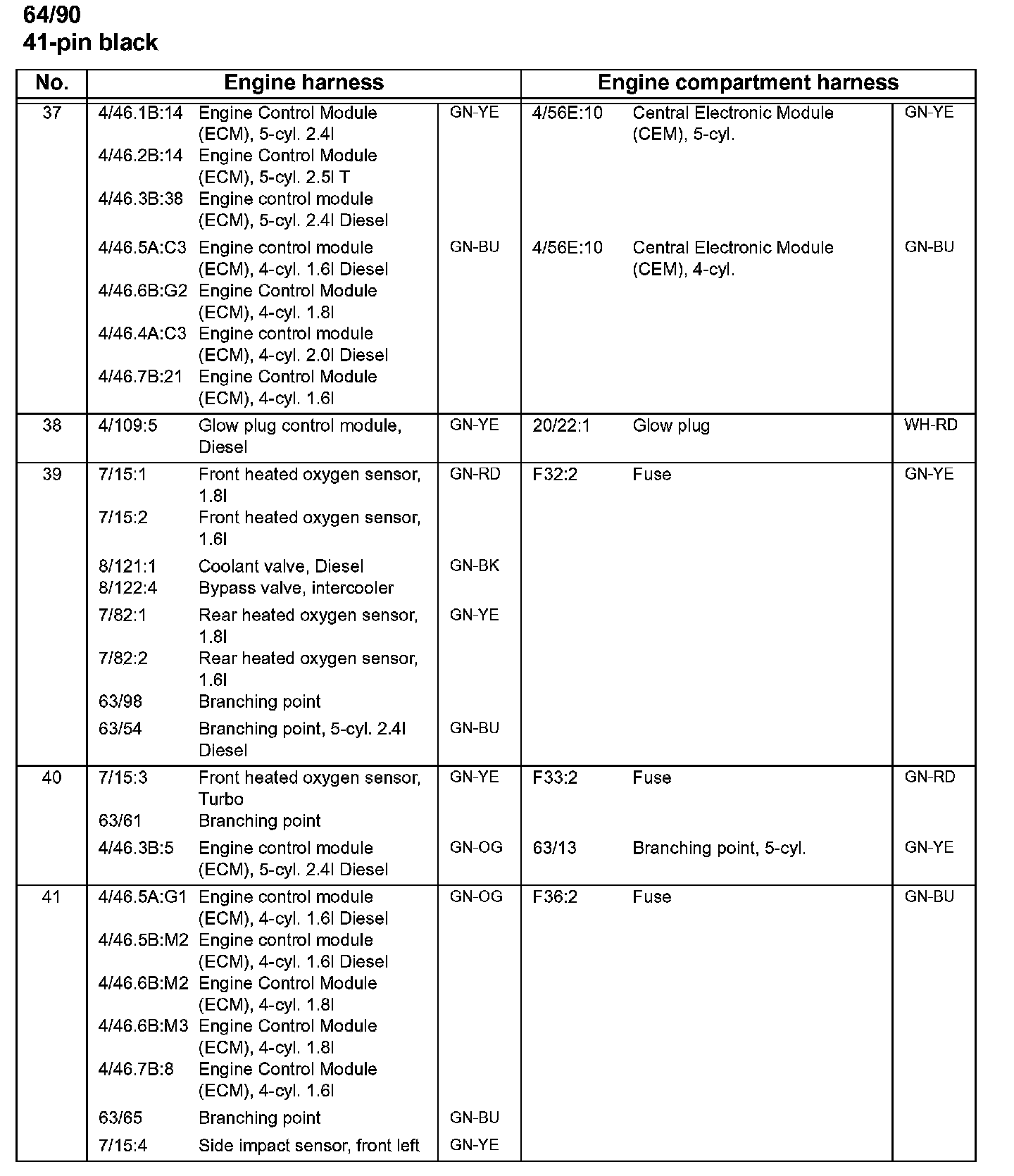

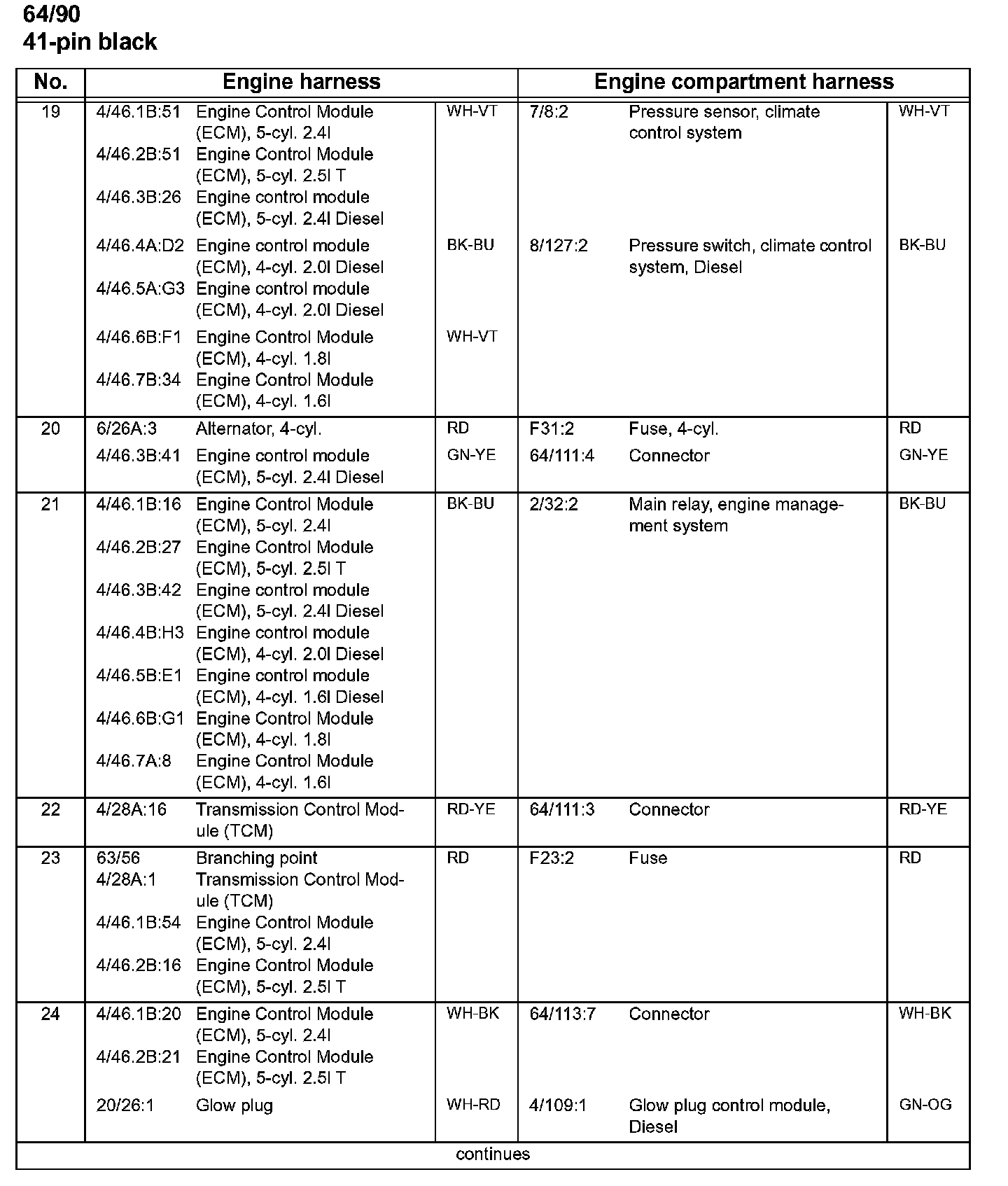

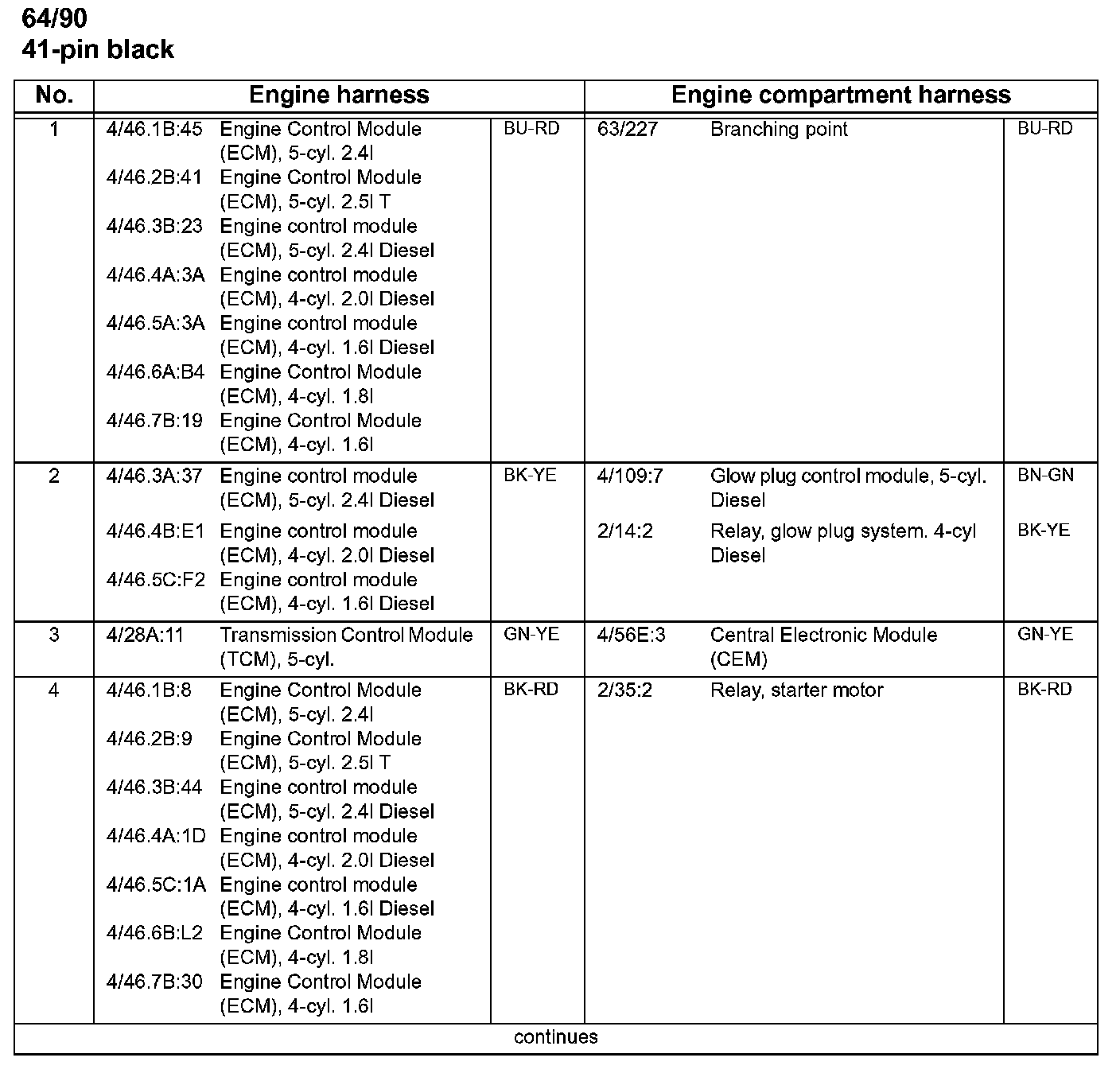

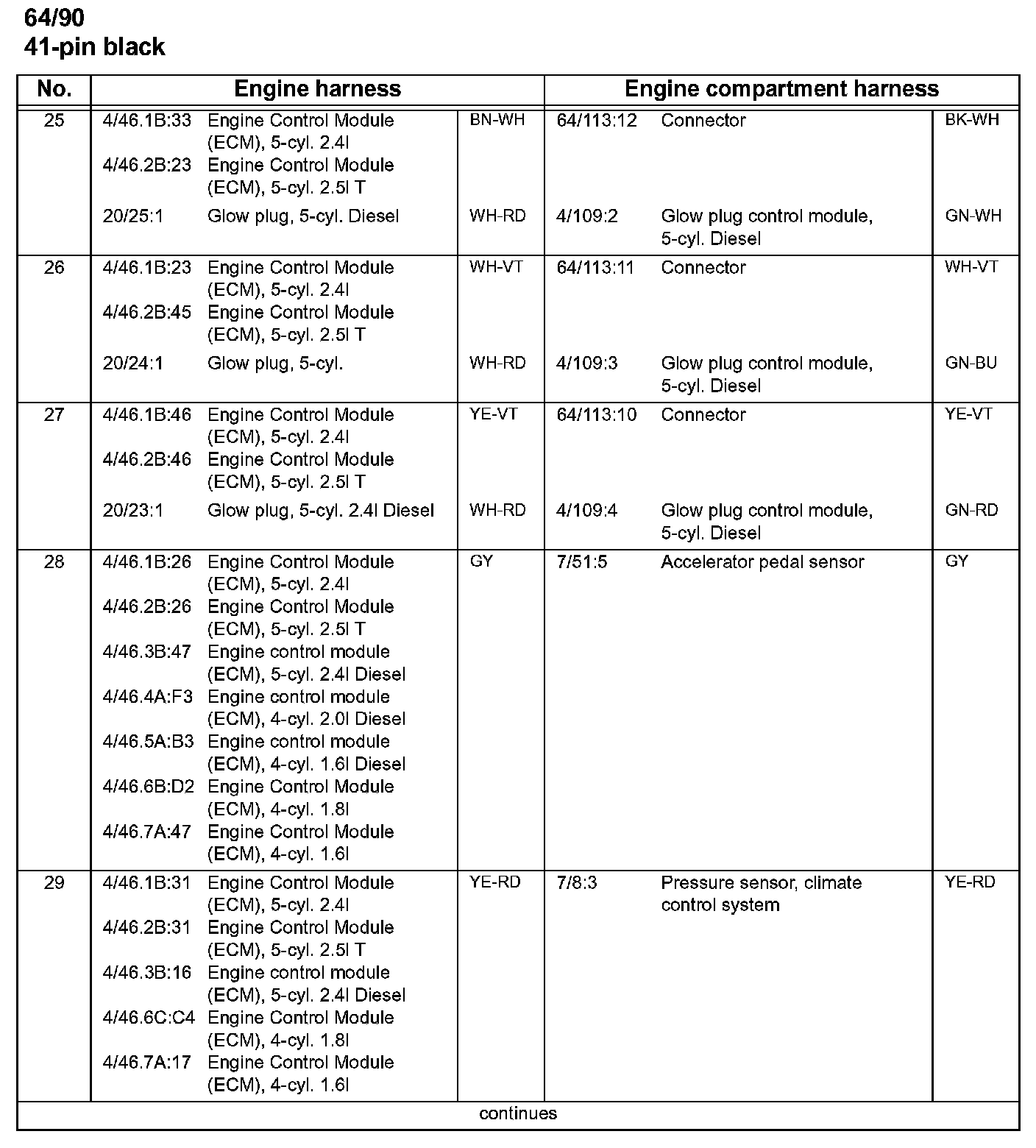

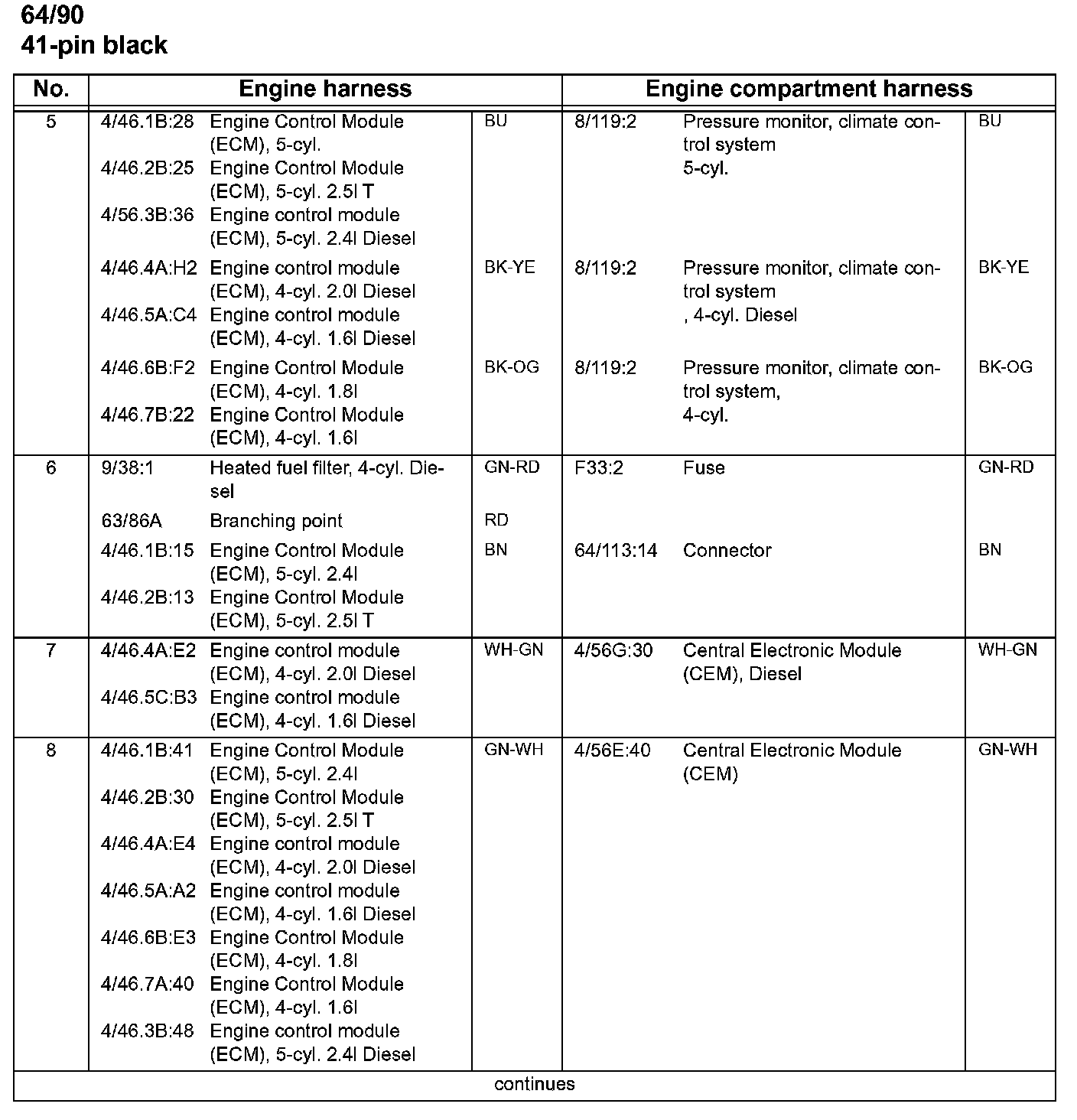

64/90:



64/90:



64/90:



64/90:



64/90:



64/90:



64/90:



64/90:



64/90 Connector:
