Engine, Installing

Engine, installing

Operation number: 21014-0

Installation

See information about lifting points body Refer to: Jacking points body Locations

Caution! Take extra care when handling the components.

Use: Unit lift.

Install the following items:
- Engine support insulator, right Refer to: Engine support insulator, right, B6304T2, B6324S Engine Support Insulator, Right
- Engine support insulator left Refer to: Engine support insulator left, B6304T2, B6324S Engine Support Insulator Left

Torque: M8, 24 Nm

1. Torque: M6, 10 Nm

2. Torque: M8, 24 Nm

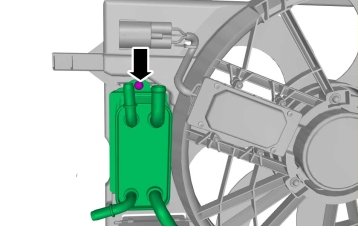

Torque: M6, 10 Nm

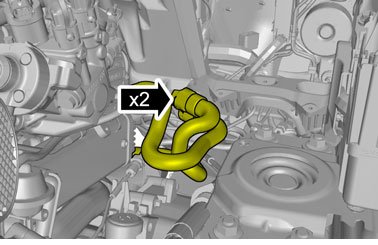

Install the following items:
- Drive shaft right Refer to: Drive shaft right, B8444S, TF-80SC AWD, B6304T2, TF-80SC AWD, B6324S, TF-80SC AWD Drive Shaft Right Drive shaft right, B6324S, TF-80SC Drive Shaft Right
- Driveshaft left Refer to: Driveshaft left, B8444S, TF-80SC AWD, B6304T2, TF-80SC AWD, B6324S, TF-80SC AWD, B6324S, TF-80SC Driveshaft Left Driveshaft left, M66, M66 AWD Driveshaft Left
- Front subframe Refer to: Front subframe, B6304T2, B6324S Front Subframe
- exhaust manifold Refer to: Service and Repair
- the auxiliaries belt Refer to: Auxiliary belt, B6324S Service and Repair

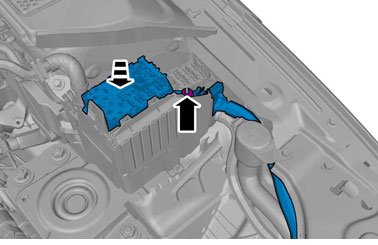

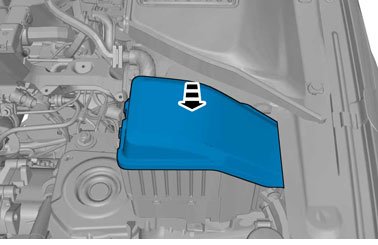

- Engine control module (ECM) Refer to: Engine control module (ECM), B6304T2, B6324S Engine Control Module (ECM)
