Valve Clearance: Specifications

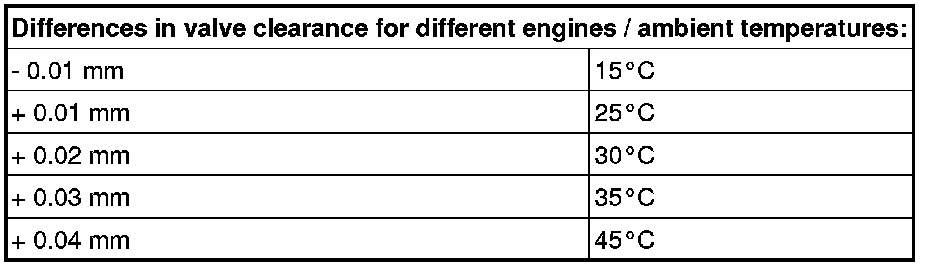

Valve clearance - As measured on a cold engine (approx. 20°C)
Exhaust valve: 0.45 ± 0.05 mm
