Oil Pump, Engine

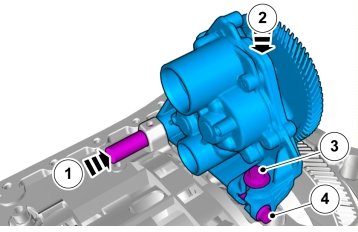

Oil Pump Installation
1. Press in the pin
2. Press the oil pump towards the crankshaft pulley
3. (M7 bolt) 17 Nm
4. (M6 bolt) 10 Nm
