Lighting - Water In Tail Lamps

Title Water in tail lamp - bulb socket seal

Ref No US20235.1.3 en-GB

Issuer -

Partner 3 US 7510 Volvo Cars North America

Func Group 3539

Func Desc miscellaneous

Status Released

Status Date 2012-05-23

Issue Date 2012-05-23

Reference





Attachment

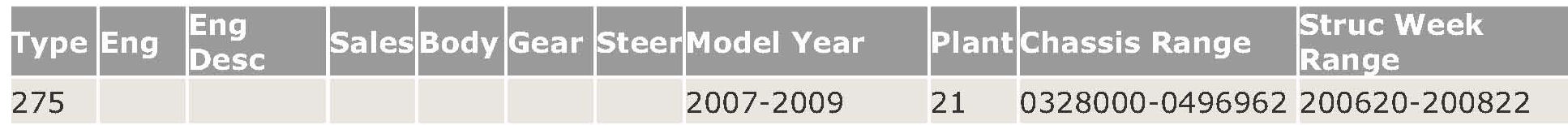

Vehicle Type

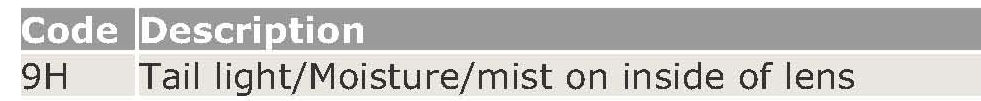

CSC Customer Symptom Codes

DTC Diagnostic Trouble Codes

Text
NOTE! THIS DOCUMENT SUPERSEDES THE PREVIOUS RETAILER TECHNICAL
JOURNAL 20235 - Water in Tail Lamp, Bulb Socket Seal, DATED 10-22-2009. The
operation time for operation number 99612-2 - Cable Harness Tail Lamp Replace has been updated. PLEASE UPDATE YOUR FILES.

DESCRIPTION:
Customers may comment about water/discoloration/moisture in the tail lamp. Water may
leak in from the bulb socket back seal. In some cases tail lamp housing replacement is necessary.

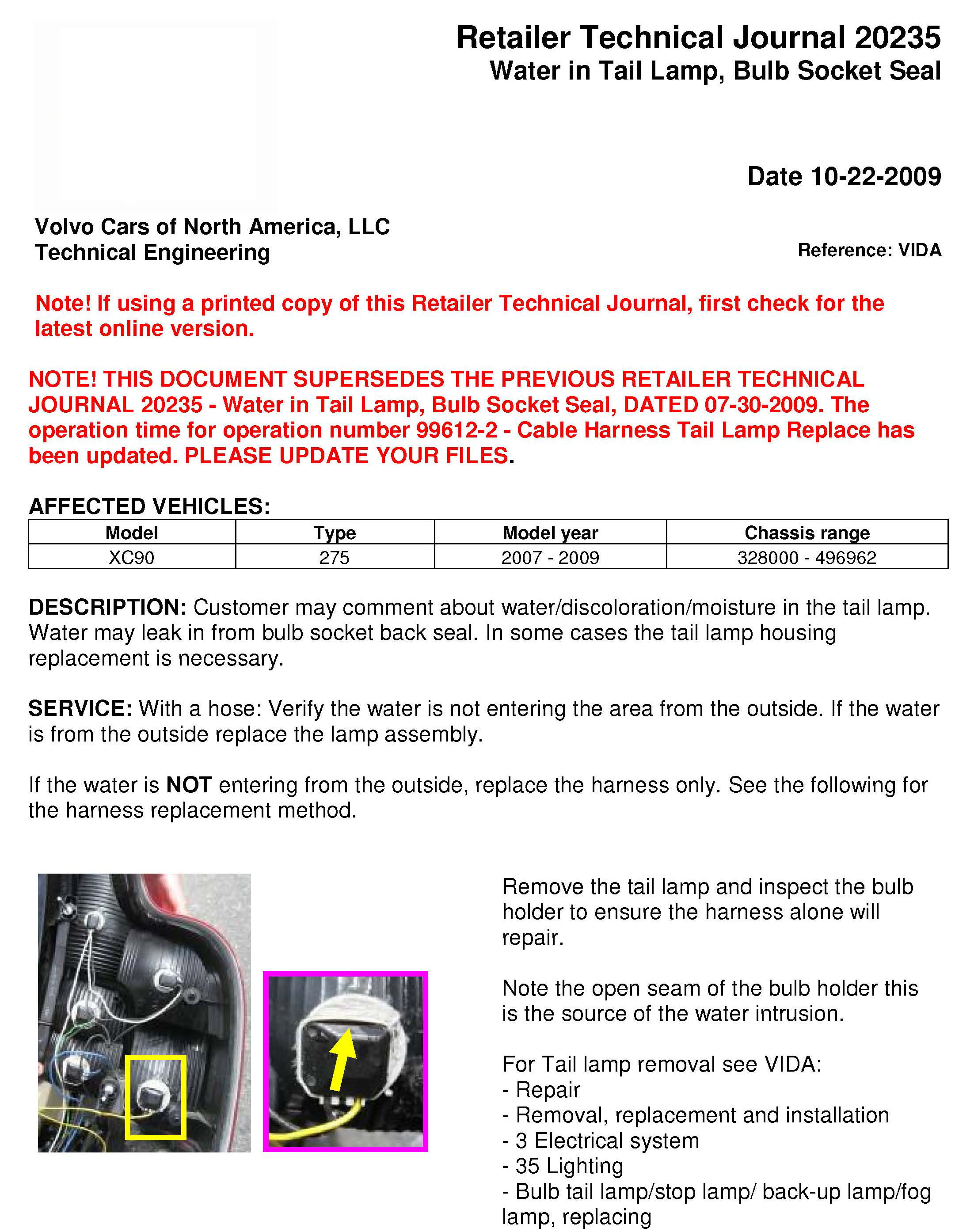

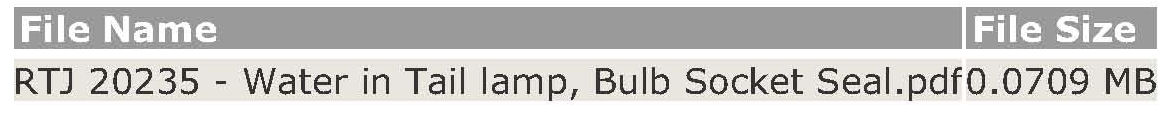

SERVICE: See the attachment: RTJ 20235 - Water In Tail Lamp.pdf








To view TJ attachment continue:
