Tail Lamp Bumper, Replacing

Tail lamp bumper, replacing

Removal and Installation

Preparatory work

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.




Ignition off.
Switch off the lighting switch.

Removing the tail lamp

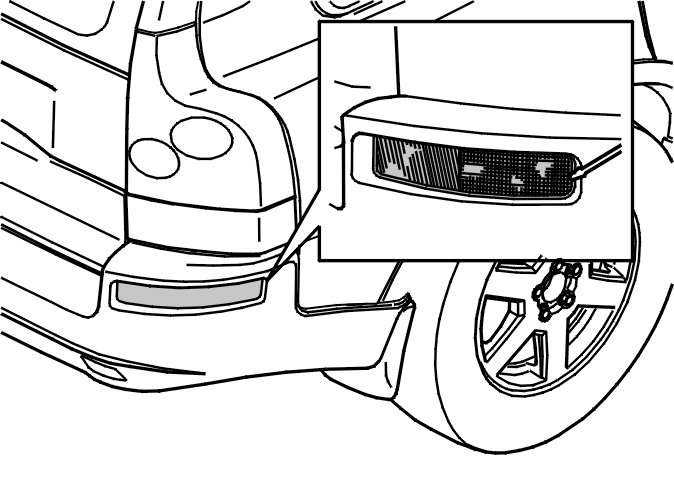

Detach the tail lamp at the front edge. Use a weatherstrip tool.

Remove:
- the bulb holder by pressing and twisting it
- the bulb.

Installing the tail lamp

Install:
- the bulb
- the bulb holder. Press the tail lamp into place.

Finishing work
Reset the lighting switch.
Test the function.
